Toro Greensmaster
3150 Service Manual

Greensmaster 3150Page 6 -- 8Chassis

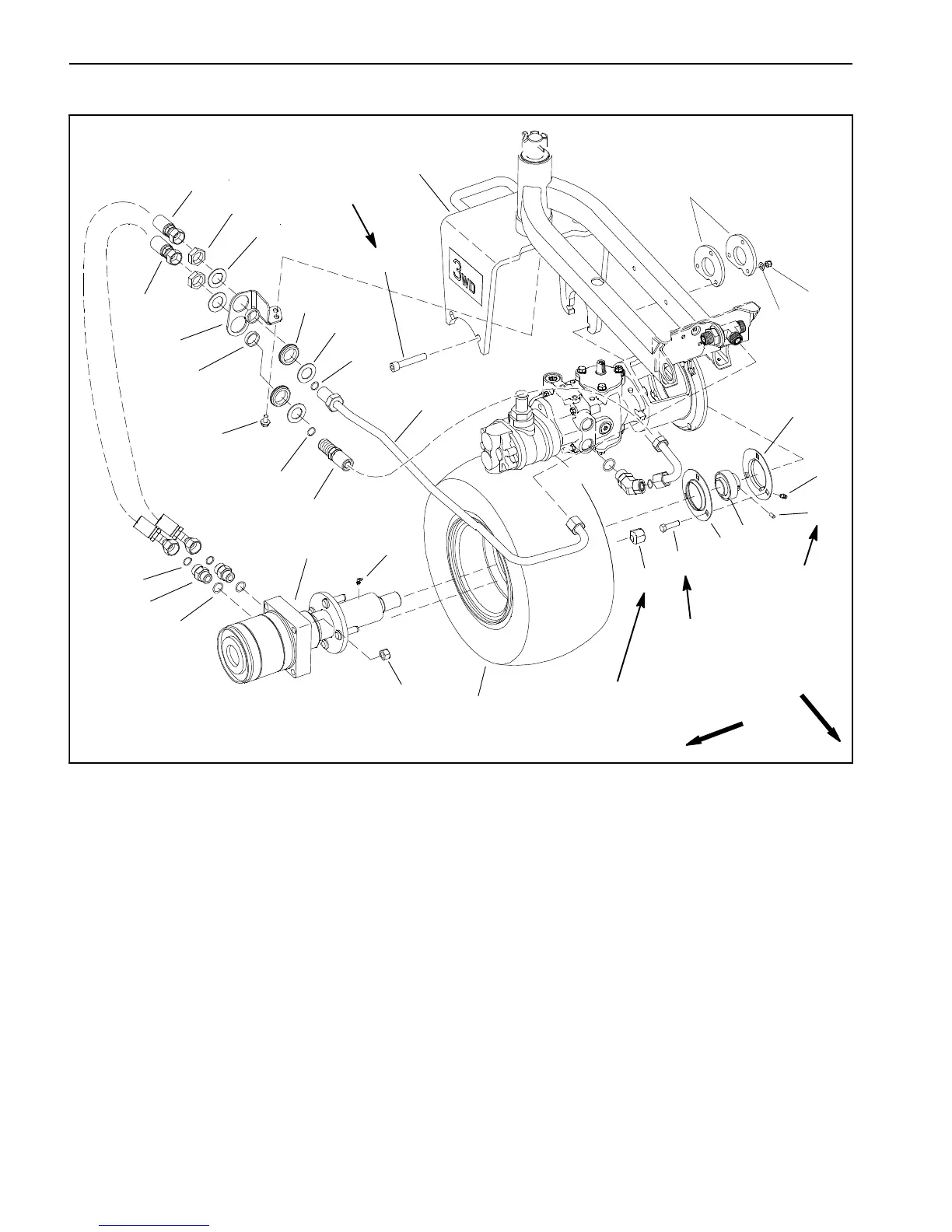

Rear Wheel (Optional 3WD)
18
6
16
19
5
31
3
2
30
15
23
7
5
1
4
14
9
10
11
12
13
20
24
25
26
17
21
22
1. Lock nut (2 used)
2. Spacer (2 used)
3. Grommet (2 used)
4. Hydraulic hose assembly
5. Washer (4 used)
6. Castor fork
7. Mount spacer (2 used)
8. Grease fitting
9. Bearing flangette (lube)
10. Bearing
11. Bearing flangette
12. Cap screw (3 used)
13. Lock nut (2 used)
14. Wheel motor & hub assembly
15. Adapter (2 used)
16. Socket head screw (2 used)
17. Bulkhead bracket
18. Lug nut (4 used)
19. Hydraulic hose as sembly
20. Hydraulic tube assembly
21. Washer (3 used)
22. Lock nut (3 used)
23. O--ring
24. O--ring
25. O--ring
26. O--ring
27. Set screw
28. Wheel assembly
29. Grease fitting
30. Hydraulic hose as sembly
31. Washer head screw (2 used)
Figure 6
FRONT
RIGHT
70 to 90 ft--lb
(95 to122 N--m)
100 ft--lb
(135 N--m)
40 ft--lb
(55 N--m)
80 to 100 in--lb
(9.0 to 11.3 N--m)
27
28
8
Loctite #242
29
