Greensmaster 3150 Page 5 -- 25 Electrical System
Leak Detector Alarm and Delay Timer
The leak detector alarm is used to notify the operator
that a hydraulic leak has occurred. To prevent the leak
detector systemfrom soundingfalse alarmsduring nor-
mal operation, the alarm circuit includes a one (1) sec-
ond delay timer.
NOTE: For information onleak detectoroperation refer
to Turf Guardiant Leak Detector System Operation in
this chapter.
Testing
1. Park machine on a level surface. Make sure the en-
gine and ignition switch are OFF.
2. Turn ignition switch to theRUN position (do not start
the engine), then move leak detector test switch rear-
ward and hold. After a one (1) second time delay, the
alarm should sound.

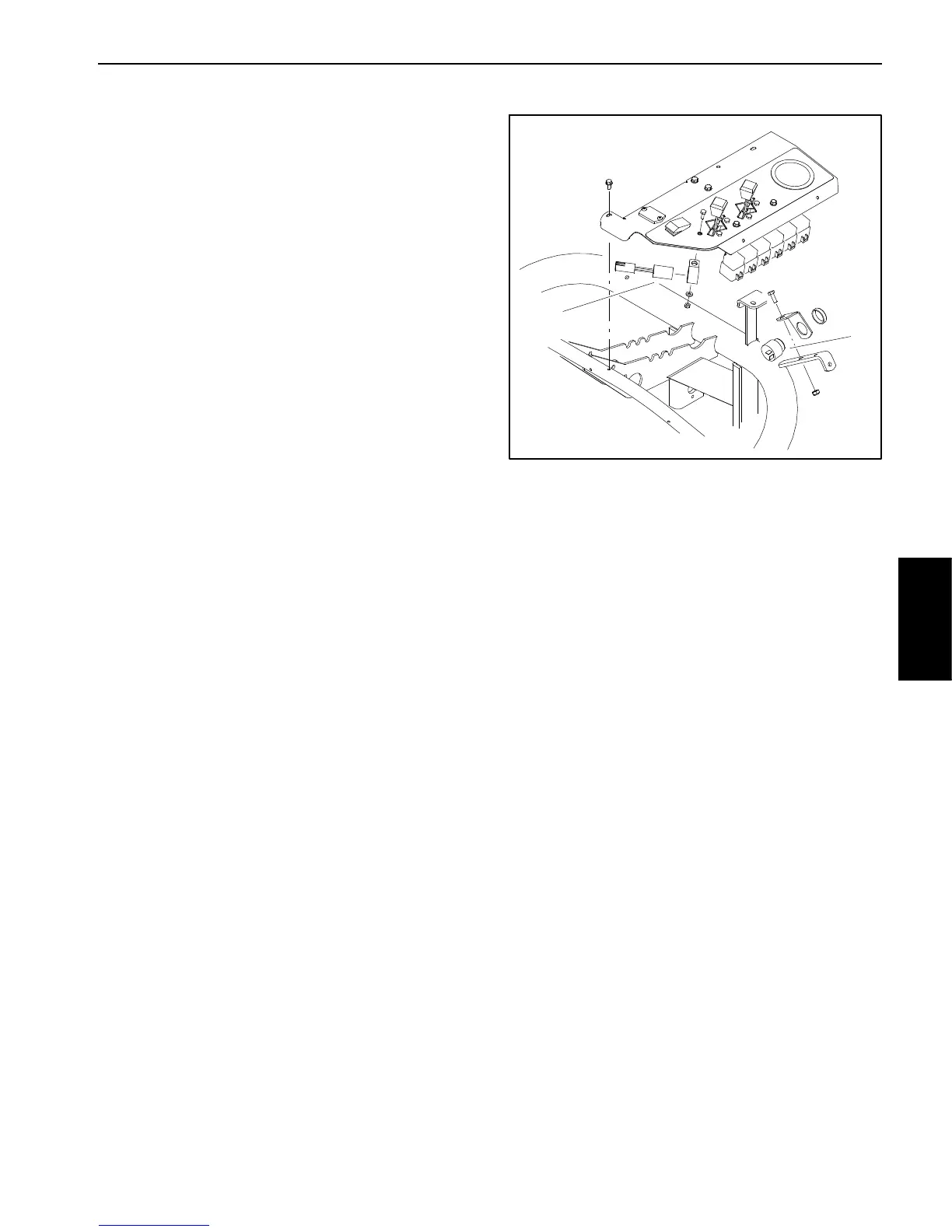

Figure 31
1. Alarm 2. Delay timer
