Greensmaster 3150Groomer Page 8 -- 12
Grooming Reel Bearing Replacement

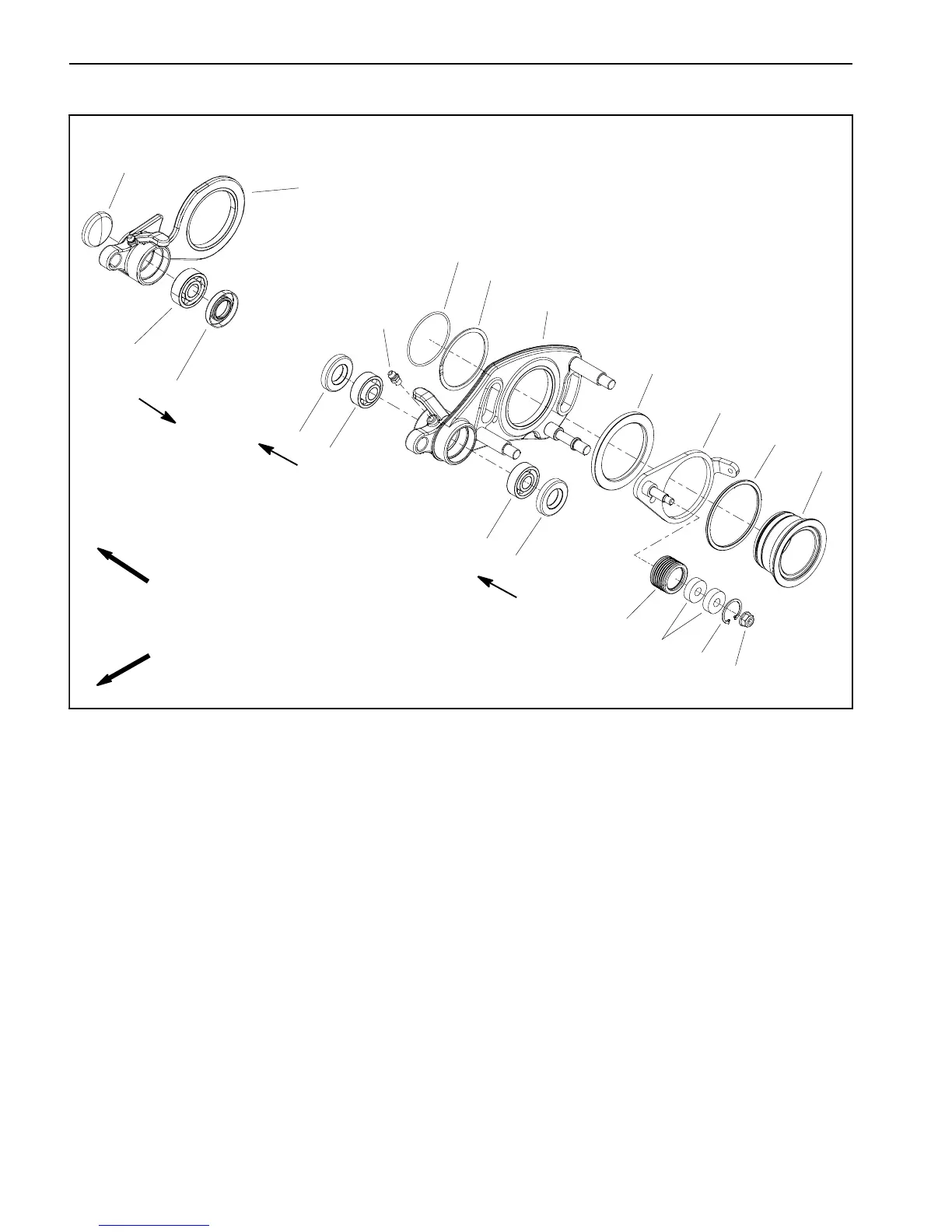

Figure 10
1. Pivot hub
2. Spacer
3. Idler bracket
4. Spacer
5. Drive plate (cutting unit LH side)
6. O--ring
7. Retaining ring
8. Grease fitting
9. Bearing
10. Seal
11. Idler pulley
12. Lock nut
13. Bearing
14. Retaining ring
15. Support plate (cutting unit RH side)
16. Plug
Seal lip
(toward center of
cutting unit)
13
14
1
2
3
4
5
6
7
8
9
10
11
12
9
10
10
9
15
16
Seal lip
(toward center of
cutting unit)
Seal lip
(toward center of
cutting unit)
FRONT
RIGHT
NOTE: Thegroomerreeldriveislocatedontheleftside
of the cutting unit, opposite from the hydraulic cutting
reel motor.
Bearing Removal
1. Remove thecutting unitfrom themachine andplace
cutting unit on a flat work area.
2. Remove front roller, grooming reel and drive plate
assembly from left side of cutting unit (see Grooming
Reel Removal in this section).
3. Remove groomer support plate assembly from the
rightsideofcuttingunit:
A. Remove two (2) socket head screws and lock
nutsthatsecuremotormounttocuttingunit(Fig.11).
Remove motor mount from cutting unit.
B. Remove lock nut and spring washer that secure
RHgroomerarmliftrodtosupportplate(Fig.12).Re-
move support plate from cutting unit.
