ENGINE
4-54 Rev. 000 TX525 Service Manual

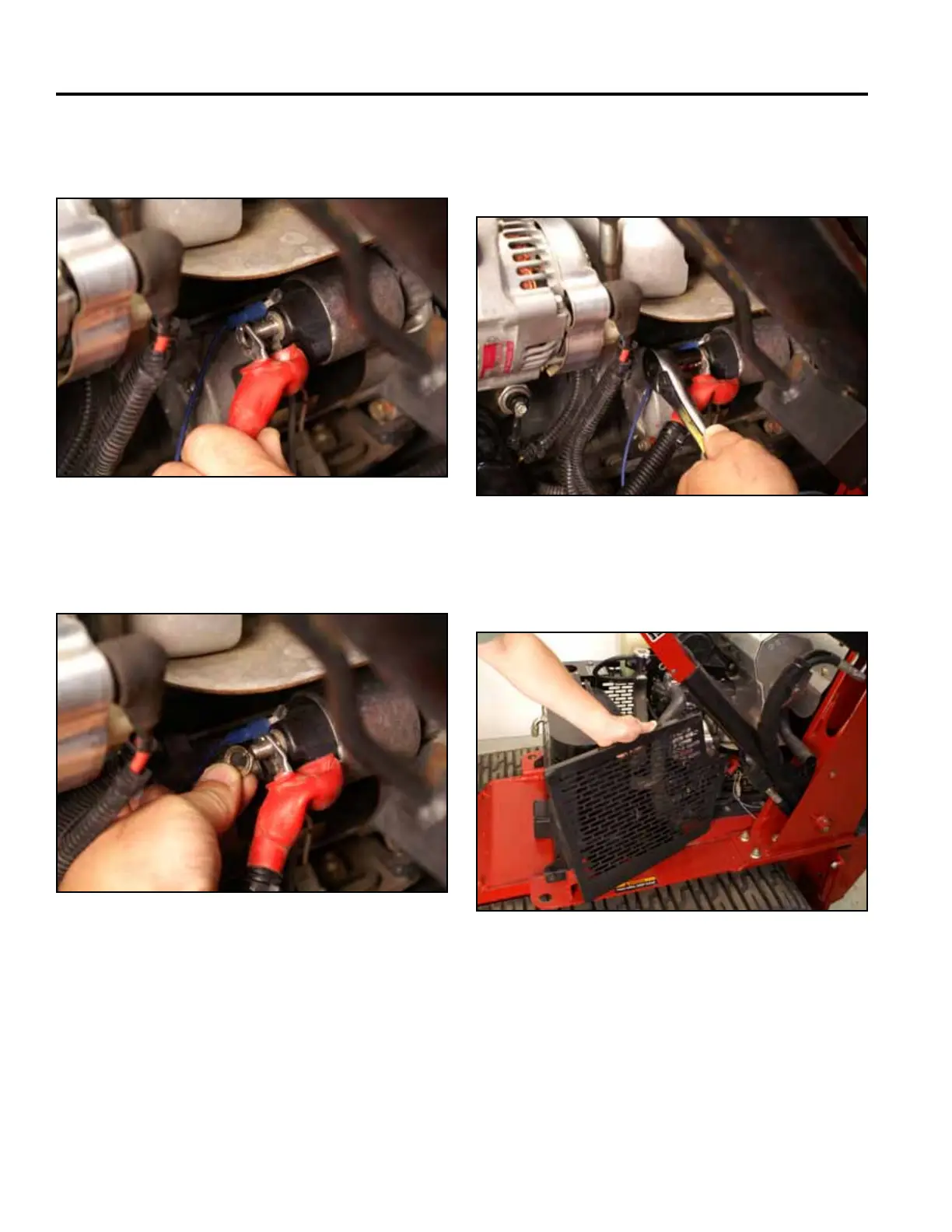

6. Slidethepositivebatterycableontothestarter
terminal(Fig.0275).
Fig 0275 PICT-5192
7. Slideawasherontothestarterterminal(Fig.0276).
Fig 0276 PICT-5191
8. Usinga12mmsocket,installanutretainingthe
positivebatterycable,greywireandwashertothe
starter(Fig.0277).
Fig 0277 PICT-5190
9. Installthelefthandsidepanel(Fig.0278).
Fig 0278 PICT-4945
