ENGINE

4-110 Rev. 000 TX525 Service Manual

53. Usinga10mmsocket,installaboltsecuringthe

starterbafeplatetotheexhaustmanifold(Fig.

0492).

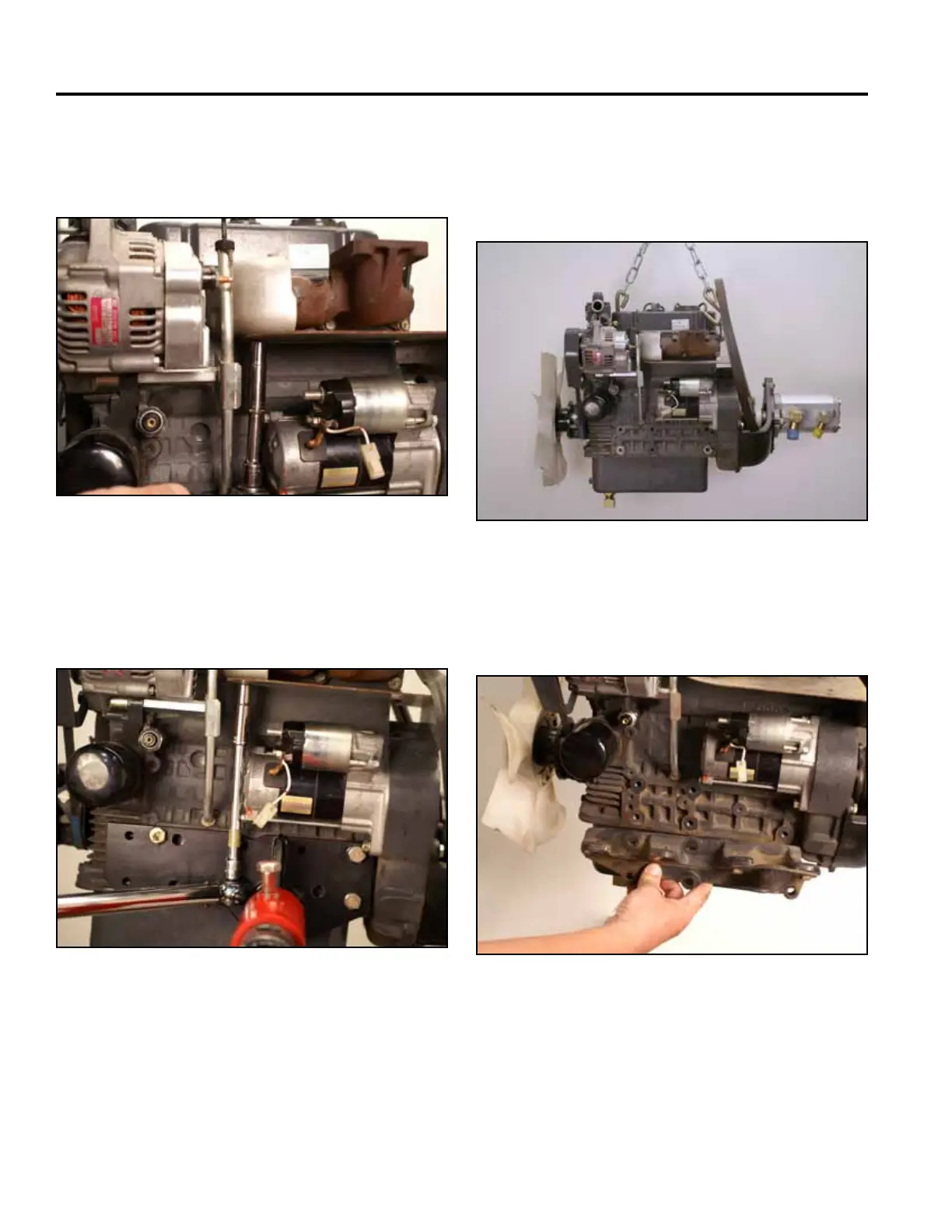

Fig 0492 PICT-5499

54. Torquetheboltsecuringthestarterbafeplatetothe

exhaustmanifoldto7.23-8.32ft-lbs.(9.8-11.3Nm)

(Fig.0493).

Fig 0493 PICT-5570

Engine Assembly Installation

1. Transfertheenginefromtheenginestandtothe

enginehoist(Fig.0494).

Fig 0494 PICT-5573a

2. Positionthelefthandenginemounttotheengine

(Fig.0495).

Fig 0495 PICT-5497
