Oil Cooler Installation
5. Usinga1/2”wrench,loosentheother2bolts,wash-
ersandlockwasherssecuringtheoilcoolertothe
bottomsideoftheradiator(Fig.0101).
7. Inspecttheoilcooler.Repairorreplace.
8. Inspectthefoamstripsontheradiator.Ifwornor
damaged,replace.

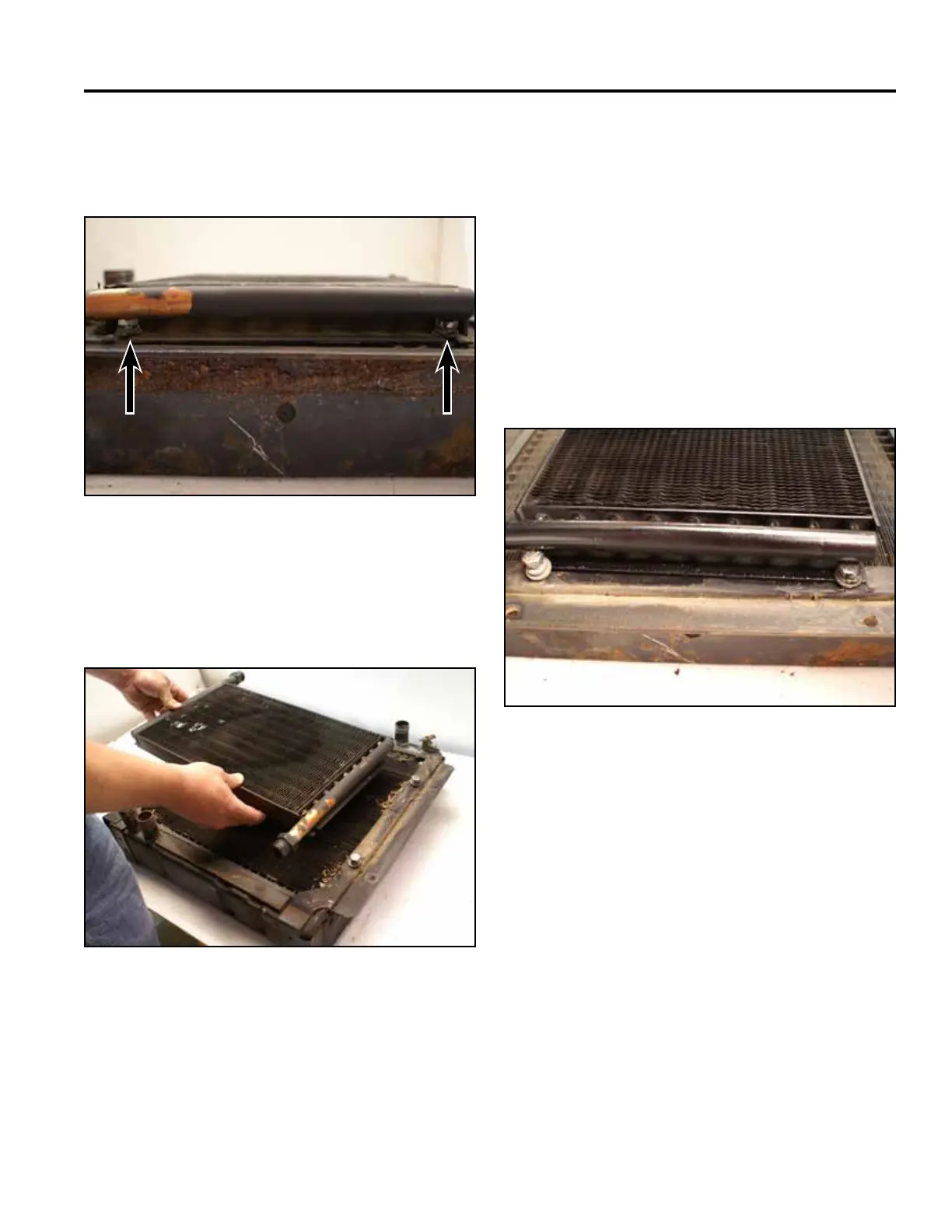

Fig 0101 PICT-5064
1. Cleanalldirtanddebrisfromtheradiatorassembly.
2. Positiontheoilcoolerontotheradiatorbyslidingthe
oilcoolermountingangeunderthe2atwashers
onthebottomsideoftheradiator(Fig.0103).
6. Removetheoilcoolerfromtheradiatorbysliding
theoilcoolerangeoutfromunderneaththe2bolts
(Fig.0102).
Fig 0103 PICT-5066
Fig 0102 PICT-5065
