HYDRAULIC SYSTEM
6-112 Rev. 000 TX525 Service Manual
Tilt Cylinder Assembly
Note: Lubricate all parts during assembly.
1. Secure the cylinder ram into a vise.

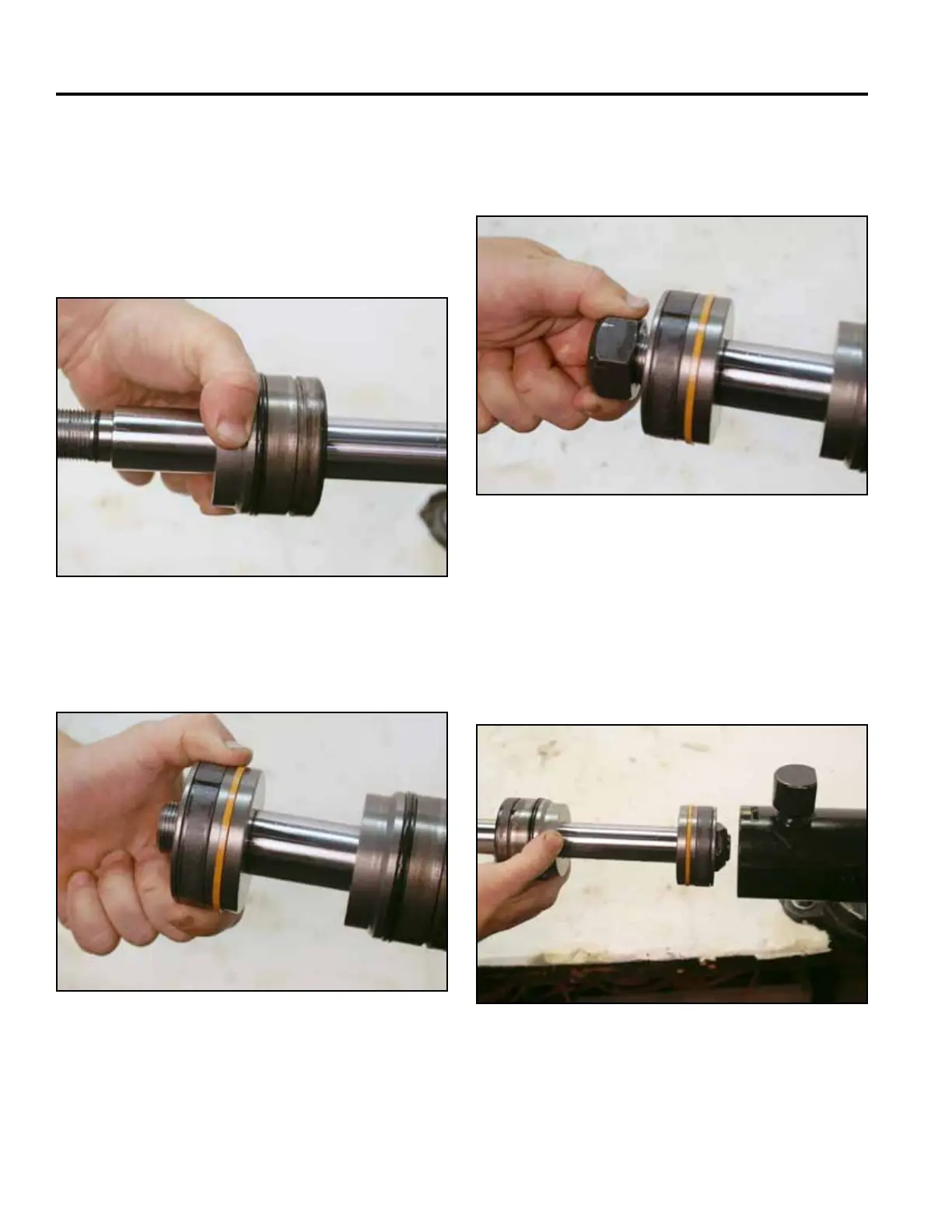

2. Slide the head onto the cylinder ram (Fig. 1254).
4. Install the nut onto the end of the ram. Using a 1-1/2”
socket, torque the nut to 110 - 120 ft-lbs. (149.1 -
162.7 Nm) (Fig. 1256).
Fig 1254 PICT-2984a
Fig 1256 PICT-2986a
5. Remove the ram from the vise and secure the
cylinder barrel into the vise.
6. Install the ram assembly into the cylinder barrel by
rotating the head assembly while pushing the head
into the barrel (Fig. 1257).
3. Slide the piston onto the cylinder ram (Fig. 1255).
Fig 1257 PICT-2987a
Fig 1255 PICT-2985a
