HYDRAULIC SYSTEM
6-1TX525 Service Manual Rev. 000
Note: Cleanliness is a key factor in a successful
repair of any valve system. Thoroughly clean
all exposed surfaces prior to any type of
maintenance. Cleaning all parts by using
a solvent wash and air drying is usually
adequate. As with any precision equipment,
all parts must be kept free of foreign material
and chemicals. Protect all exposed sealing
areas and open cavities from damage and
foreign material.
Upon removal, all seals, o-rings, and gaskets
should be replaced. During installation, lightly
lubricate all seals, o-rings, and gaskets with
clean petroleum jelly prior to assembly.
Protect the inner diameter of seals and
o-rings from damage during assembly by
covering the shaft machined features with
plastic wrap or equivalent.
2 Spool Loader Valve Replacement
2 Spool Loader Valve Removal

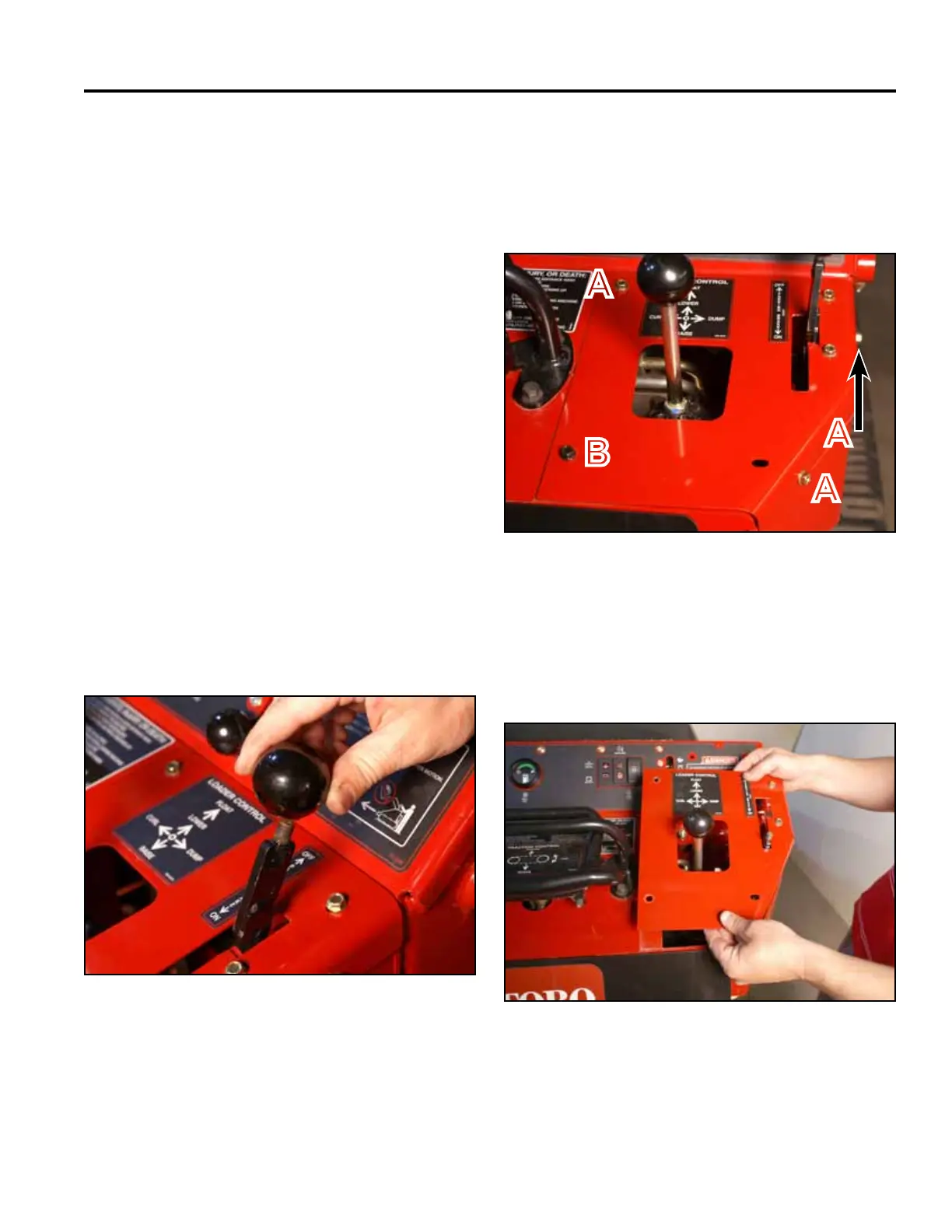

Fig 0834 PICT-4343a
3. Remove the right panel from the control panel
assembly (Fig. 0834).
A. Self-tapping screw (3) B. Bolt and nut
Fig 0832 PICT-4342
Fig 0833 PICT-4341
1. Remove the knob from the brake handle (Fig. 0832).
2. Using a 3/8” socket, remove the 3 self-tapping
screws that secure the top right panel to the control
panel assembly. Using a 3/8” socket and a 7/16”
socket, remove the bolt and nut securing the lower
left corner to the control panel assembly (Fig. 0833).
A
A
A
B
