ENGINE

4-160 Rev. 000 TX525 Service Manual

Rotor

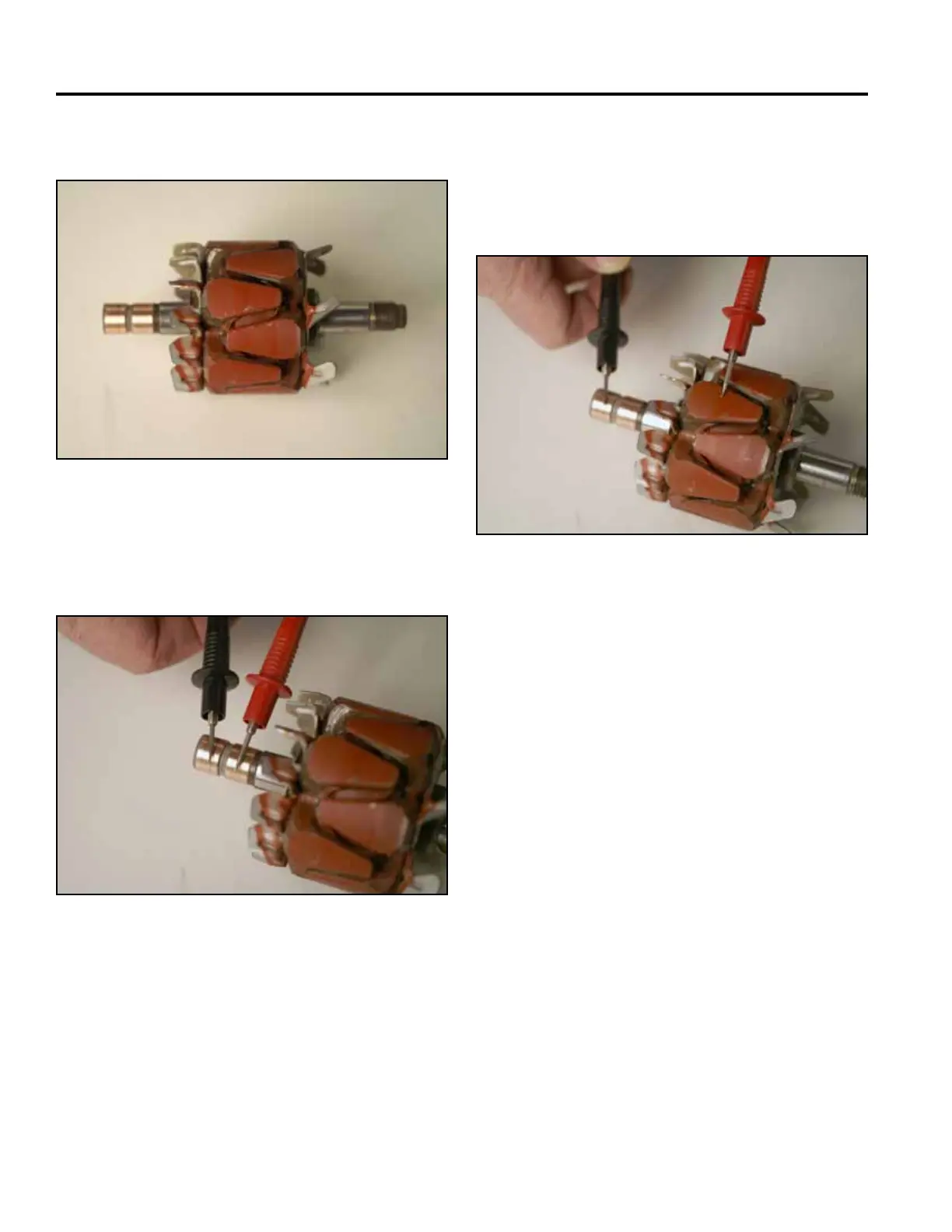

Fig 0686 PICT-8215a

1. Measuretheresistanceacrosstheslipringswiththe

resistancerangeonacircuittester(Fig.0687).

Fig 0687 PICT-8216a

2. Iftheresistanceisnot2.9ohms,replacetherotor.

3. Checkthecontinuityacrosstheslipringandthe

corewiththeresistancerangeonacircuittester

(Fig.0688).

Fig 0688 PICT-8217a

4. Ifinnityisnotindicated,replacetherotor.
