HYDRAULIC SYSTEM
6-103TX525 Service Manual Rev. 000
Tilt Cylinder Assembly Rebuild
10. Insert the end of the ring through the notch in the
barrel and into the hole in the groove. Place the
spanner wrench onto the head assembly (Fig. 1223).
1. Extend the ram of the tilt cylinder out approximately
6” to 12” (15.24 to 30.48cm).
2. Clean away all dirt and foreign substance from
openings, particularly at the head of the hydraulic
cylinder.
3. Clamp the tilt cylinder in a vise so that the locking
ring slot is facing up.
4. Clean out all material from the locking slot (Fig.
1225).

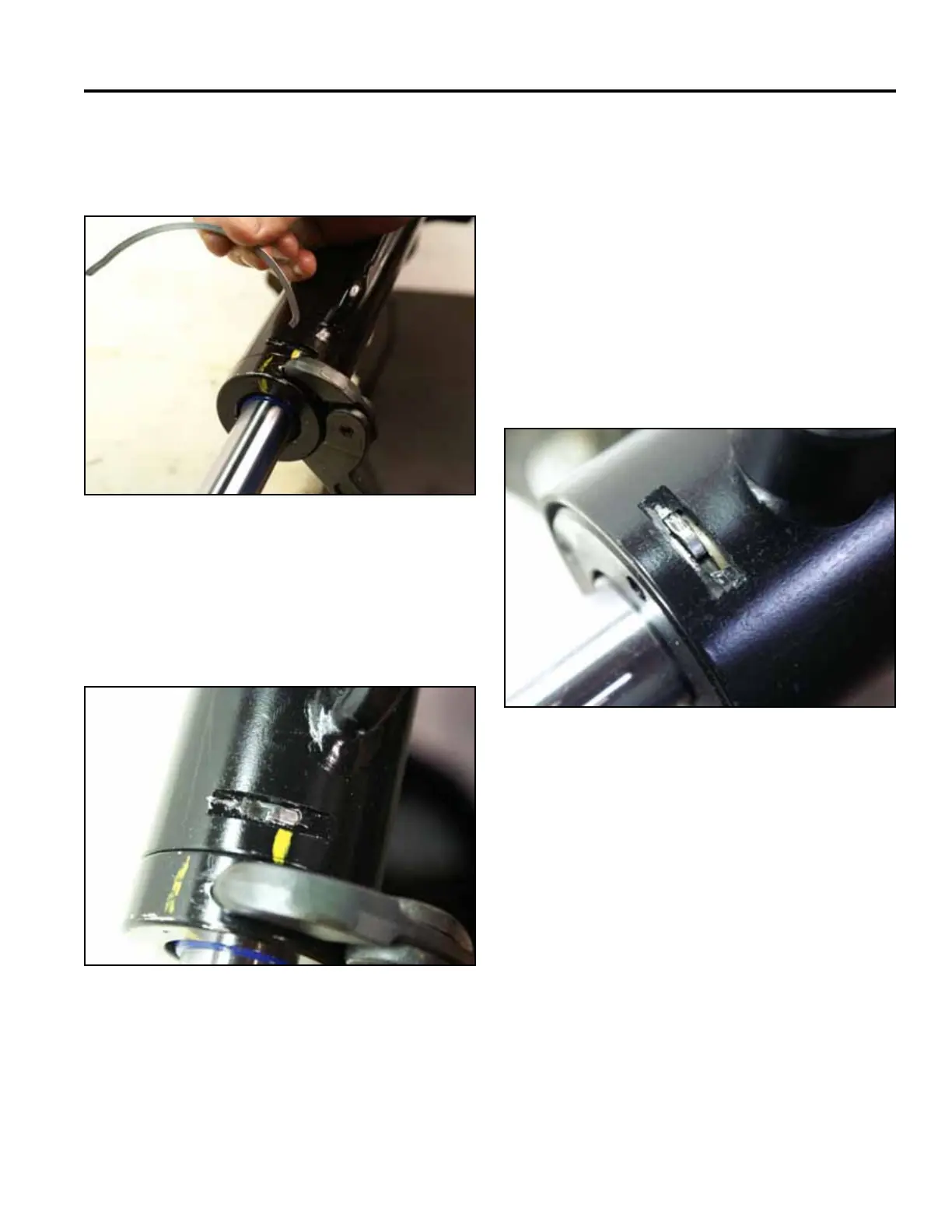

Fig 1223 PICT-3071
Fig 1225 PICT-2954
11. Begin rotating the spanner wrench so that the head
pulls the ring inside the barrel. Continue rotating until
the ring is completely installed inside the barrel on
the head assembly (Fig. 1224).
Fig 1224 PICT-3073
