ENGINE

4-6 Rev. 000 TX525 Service Manual

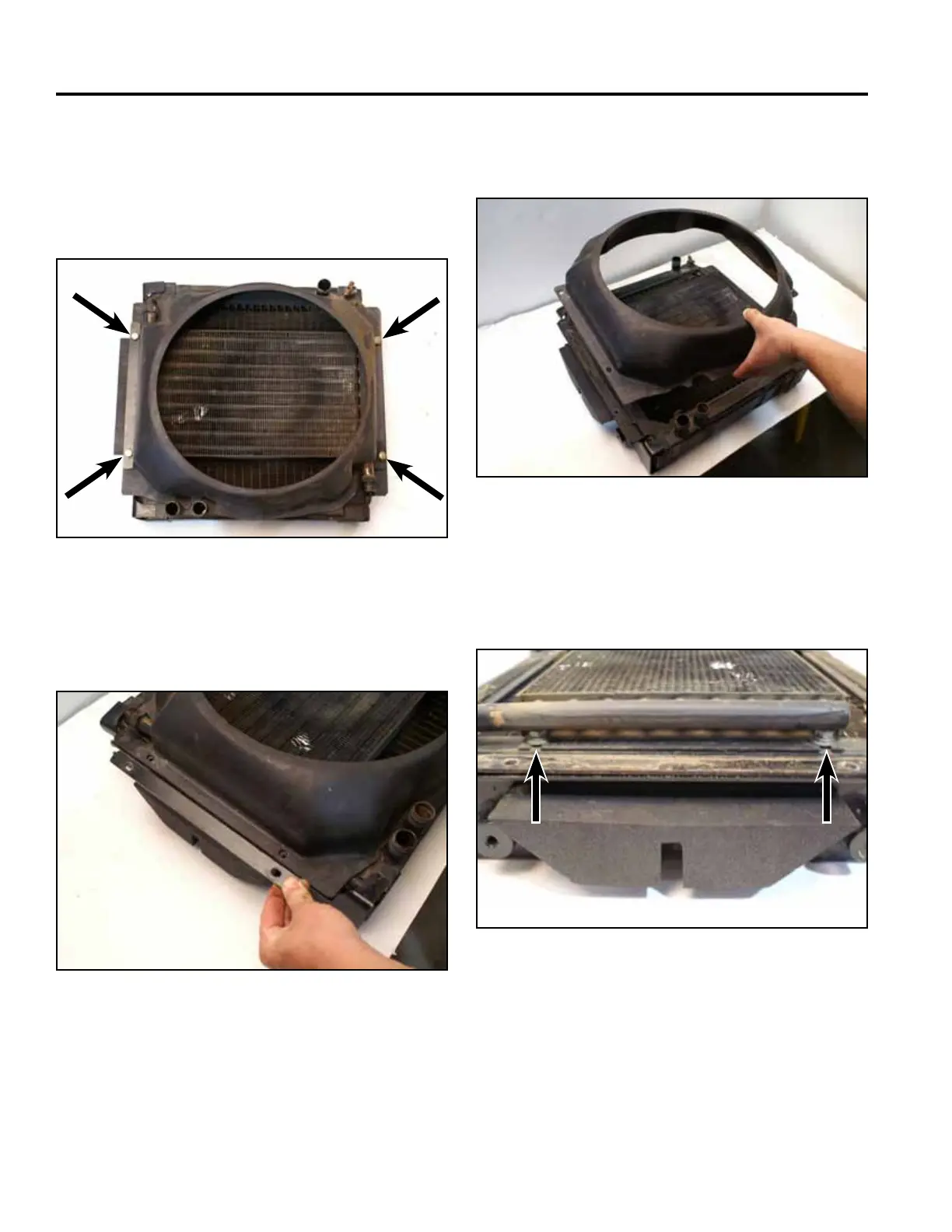

Oil Cooler Removal

1. Removethe4bolts,2washersand4nutssecuring

thefanshroudtotheradiator/oilcoolerassembly

(Fig.0097).

3. Removethefanshroudfromtheradiator/oilcooler

assembly(Fig.0099).

Fig 0097 PICT-5058

Fig 0099 PICT-5061

4. Usinga1/2”wrench,removethe2bolts,washers

andlockwasherssecuringtheoilcoolertothetop

sideoftheradiator(Fig.0100).

2. Removethebackingplatefromtheradiator/oil

coolerassembly(Fig.0098).

Fig 0100 PICT-5062

Fig 0098 PICT-5060
