ENGINE

4-111TX525 Service Manual Rev. 000

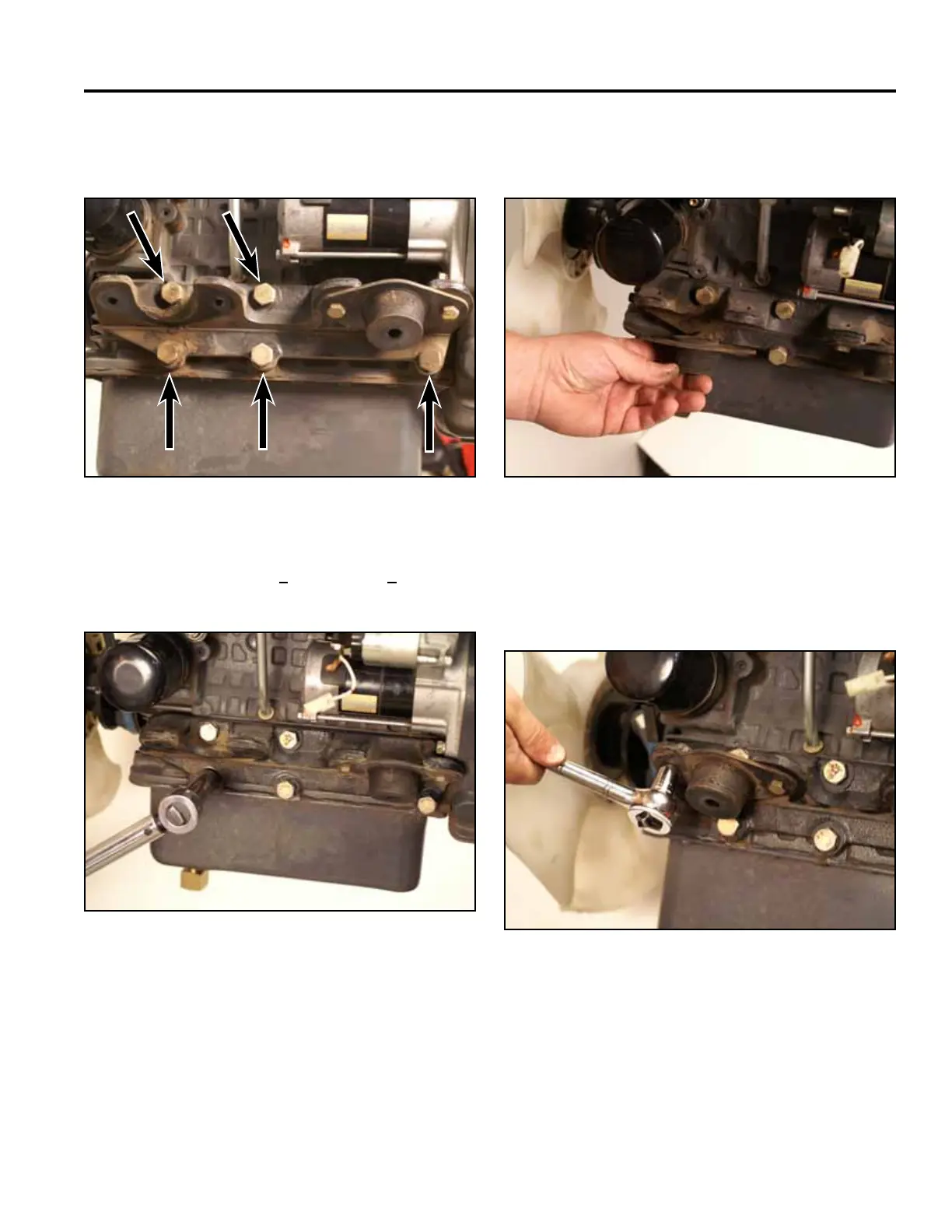

3. Usinga17mmsocket,install5boltssecuringtheleft

handenginemounttotheengine(Fig.0496).

4. Torquethe5boltsto38+4ft-lbs.(51.5+5.4Nm)

(Fig.0497).

Fig 0497 PICT-5574

Fig 0496 PICT-5495

5. PositiontheISOenginemounttothelefthand

enginemount(Fig.0498).

Fig 0498 PICT-5494

6. Usinga1/2”socket,install2boltssecuringthe

forwardISOenginemounttothelefthandengine

mount(Fig.0499).

Fig 0499 PICT-5575
