ENGINE
4-56 Rev. 000 TX525 Service Manual

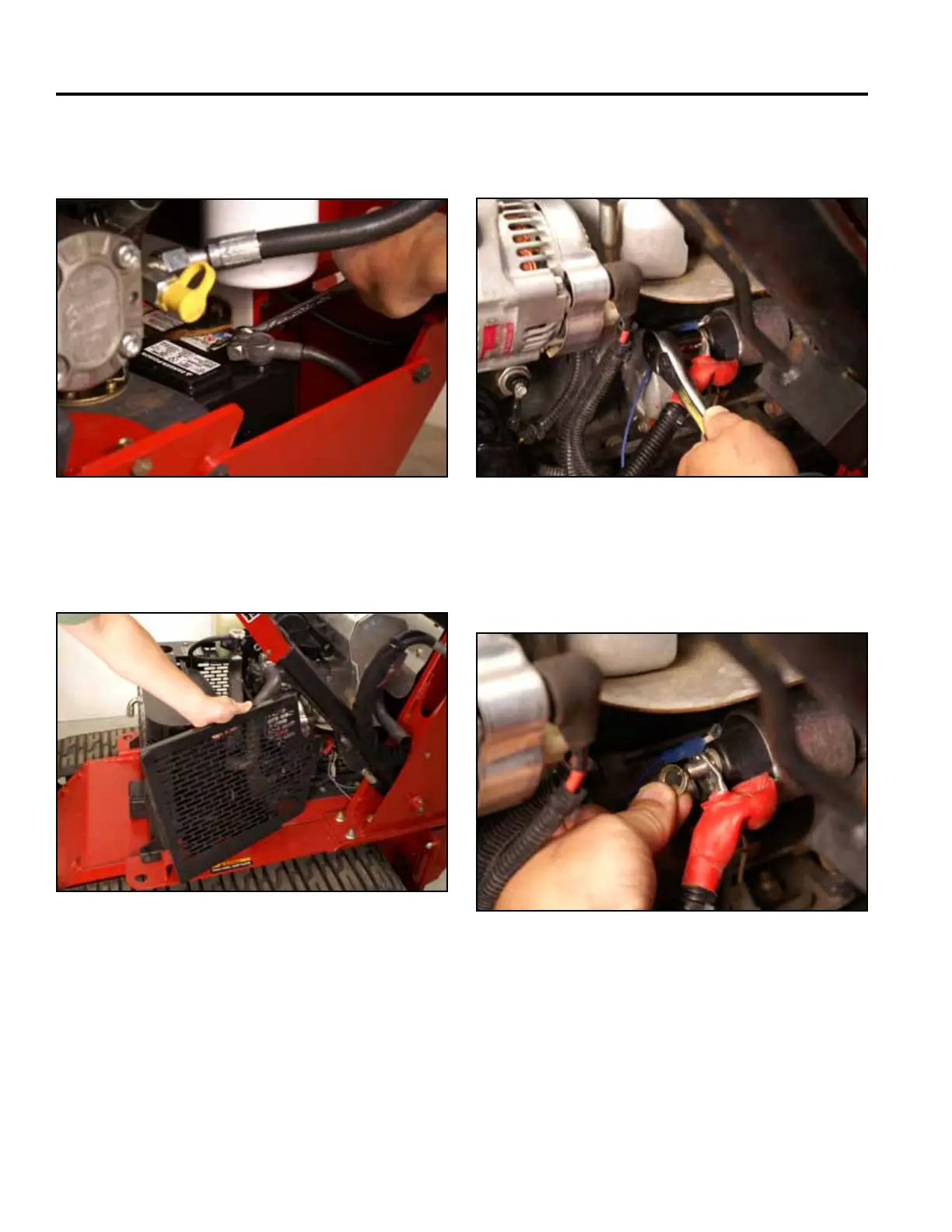

6. Usinga1/2”wrench,disconnectthenegativebattery
cablefromthebattery(Fig.0282).
Fig 0282 PICT-5158
7. Removethelefthandsidepanel(Fig.0283).
Fig 0283 PICT-4945
8. Usinga12mmsocket,removethenutretainingthe
positivebatterycabletothestarter(Fig.0284).
Fig 0284 PICT-5190
9. Removethewasherfromthestarterterminal(Fig.
0285).
Fig 0285 PICT-5191
