HYDRAULIC SYSTEM
6-21TX525 Service Manual Rev. 000

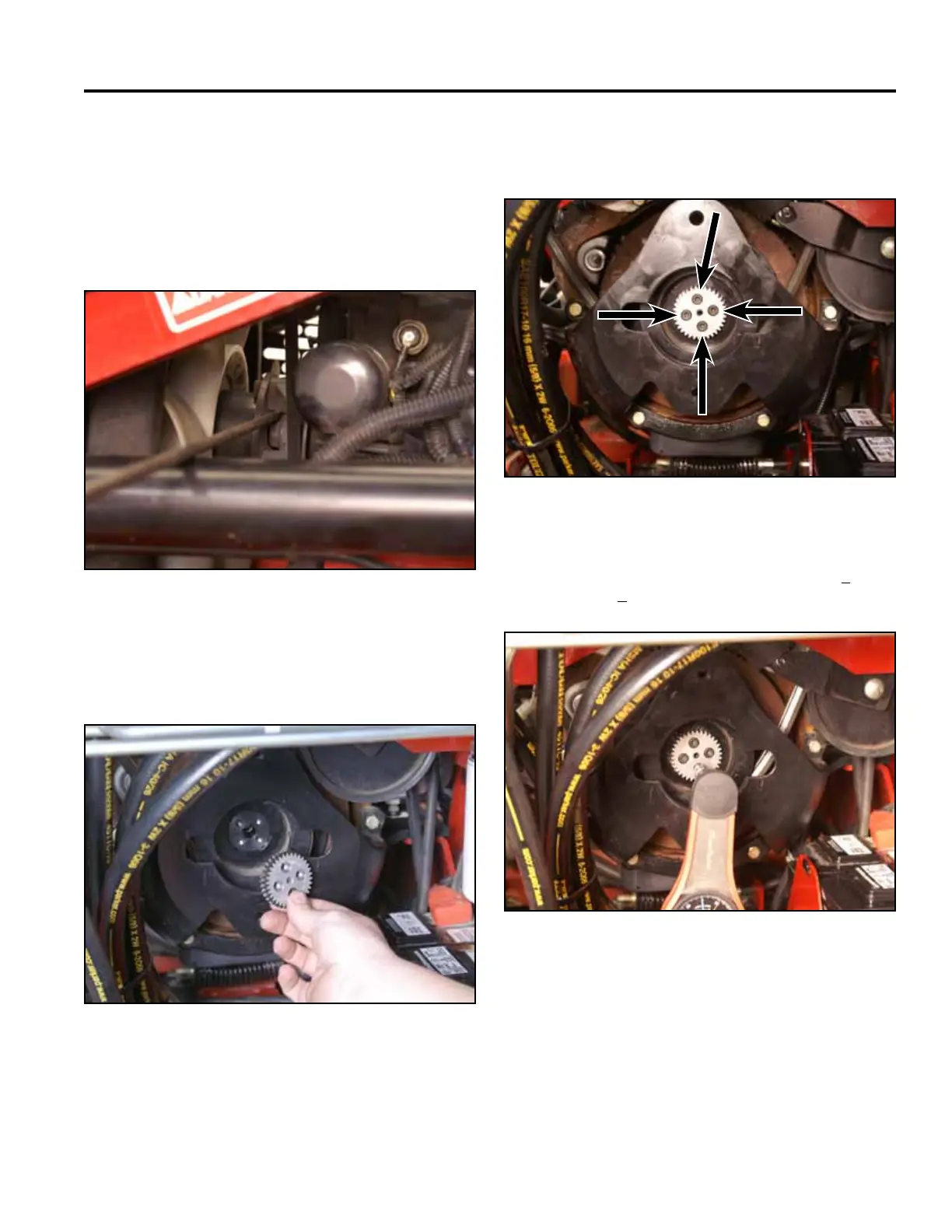

2. Secure the ywheel to keep it from turning. You
can do this by sliding a length of 5/16” diameter rod
stock in between the fan mount pulley and fan mount
spacer. The rod stock should be inserted so it runs
on top of the fan mount pulley screw. The rod stock
should be at least 16” long so that it rests on the left
hand loader arm lift cylinder (Fig. 0908).
Fig 0908 PICT-4840
3. Slide the hub sleeve onto the engine pulley (Fig.
0909).
Fig 0909 PICT-4828a
4. Install 4 bolts securing the hub sleeve to the ywheel
(Fig. 0910).
Fig 0910 PICT-4863
5. Torque the hub sleeve mounting bolts to 110 + 10
in-lbs. (12.4 + 1.1 Nm) (Fig. 0911).
6. Install the Hydraulic Tandem Pump. Refer to
“Hydraulic Tandem Pump Installation” on page 6-37.
Fig 0911 PICT-4864
