HYDRAULIC SYSTEM
6-107TX525 Service Manual Rev. 000

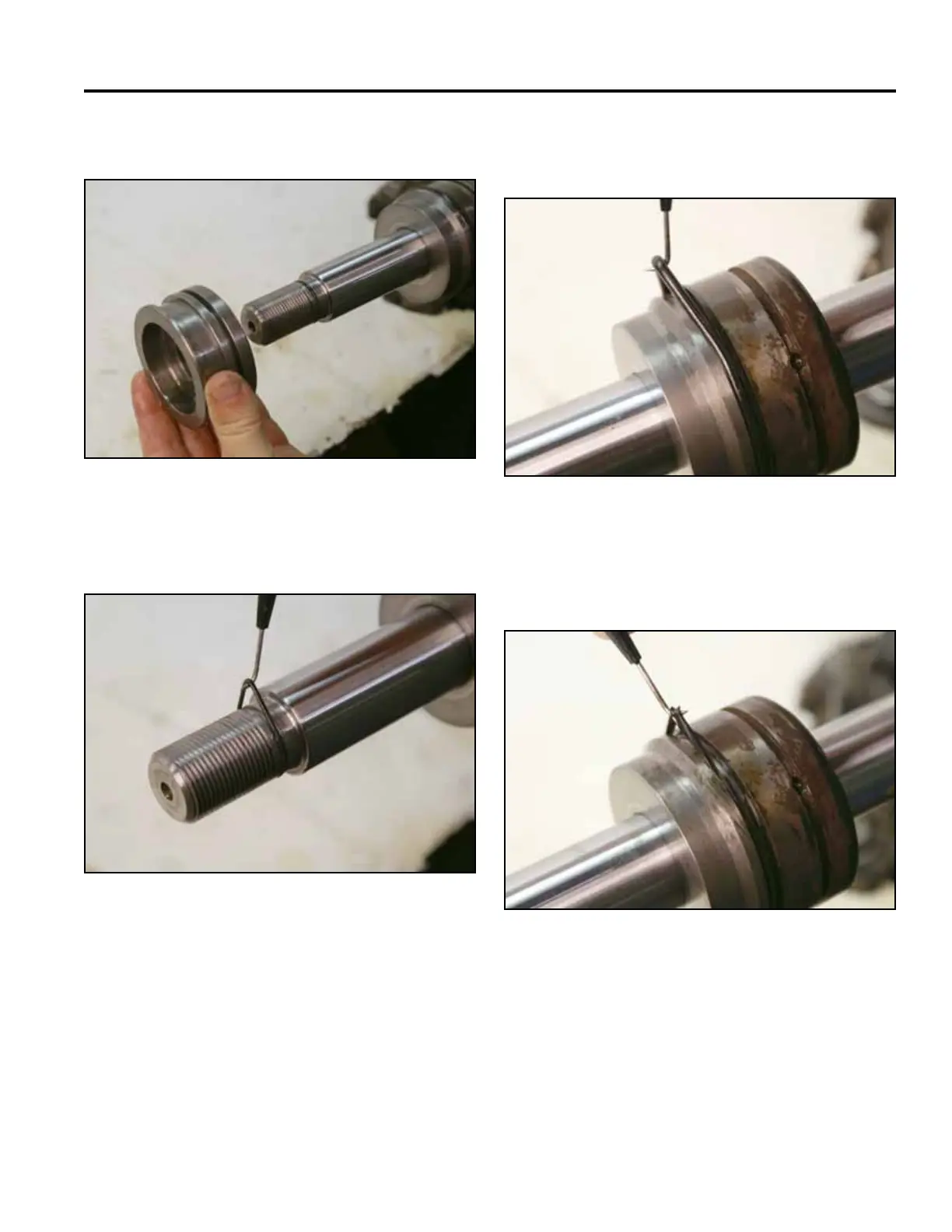

5. Slide the piston off the end of the ram (Fig. 1235). 7. Remove the o-ring from the head on the ram
assembly (Fig. 1237).
Fig 1235 PICT-2965a
Fig 1237 PICT-2967a
8. Remove the at back-up ring from the head on the
ram assembly (Fig. 1238).
6. Remove the o-ring from the ram (Fig. 1236).
Fig 1238 PICT-2968a
Fig 1236 PICT-2966a
