DRIVE SYSTEM
7-2 Rev. 000 TX525 Service Manual
6. Start the machine and raise the loader arm enough
toclearthehydraulicoorjack.Placetheoorjack
directly below the mount plate and lower the loader
armontothehydraulicoorjack.Continuelowering
the loader arm to raise the tracks off the ground (Fig.
1265).
8. Lowerthehydraulicoorjacksothemachinerests
on the jack stands. Lower the loader arms to the
resting position (Fig. 1267).

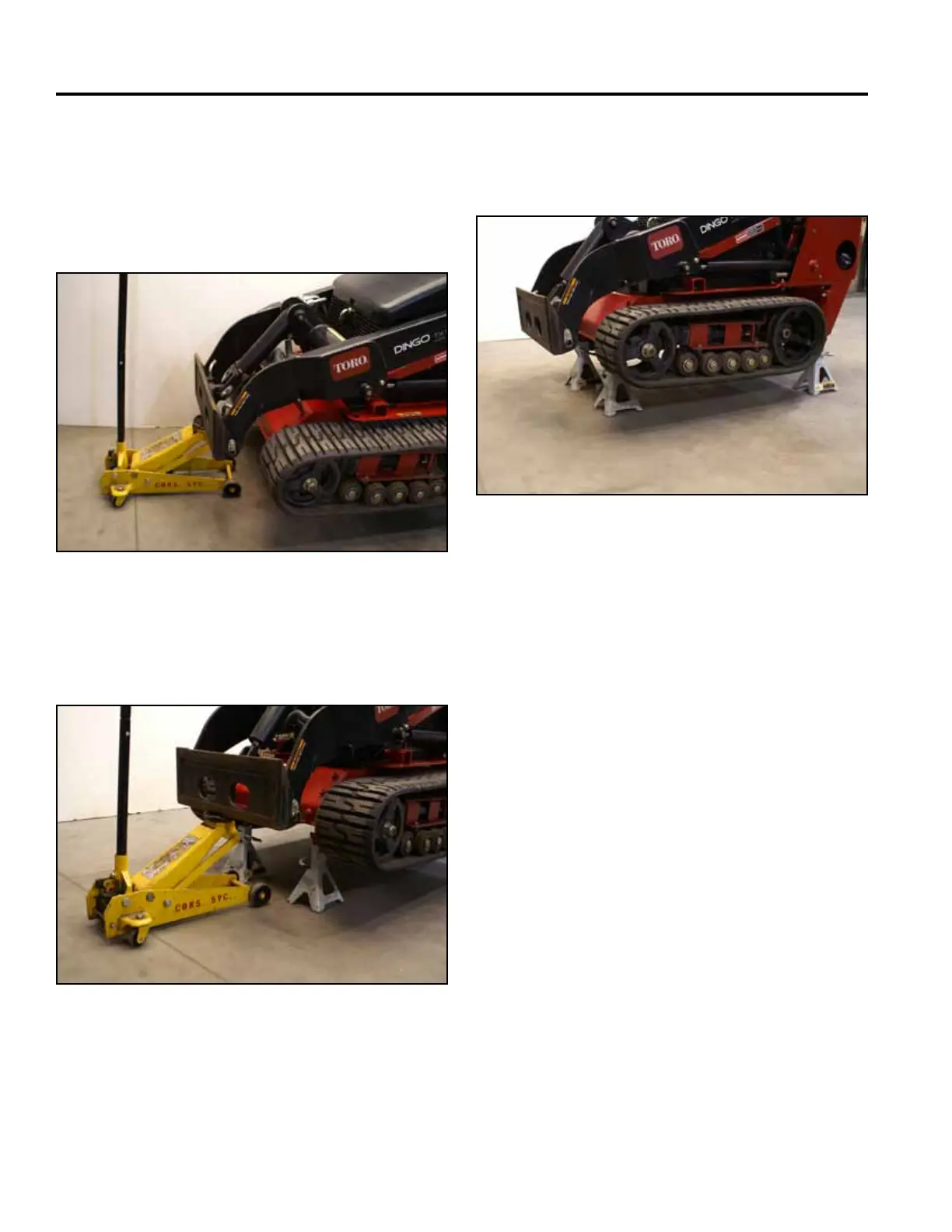

Fig 1265 PICT-4250
Fig 1267 PICT-4253
9. Make sure the machine is securely supported by the
jack stands.
7. Place two jack stands under the front frame (Fig.
1266).
Fig 1266 PICT-4251
