DRIVE SYSTEM
7-4 Rev. 000 TX525 Service Manual

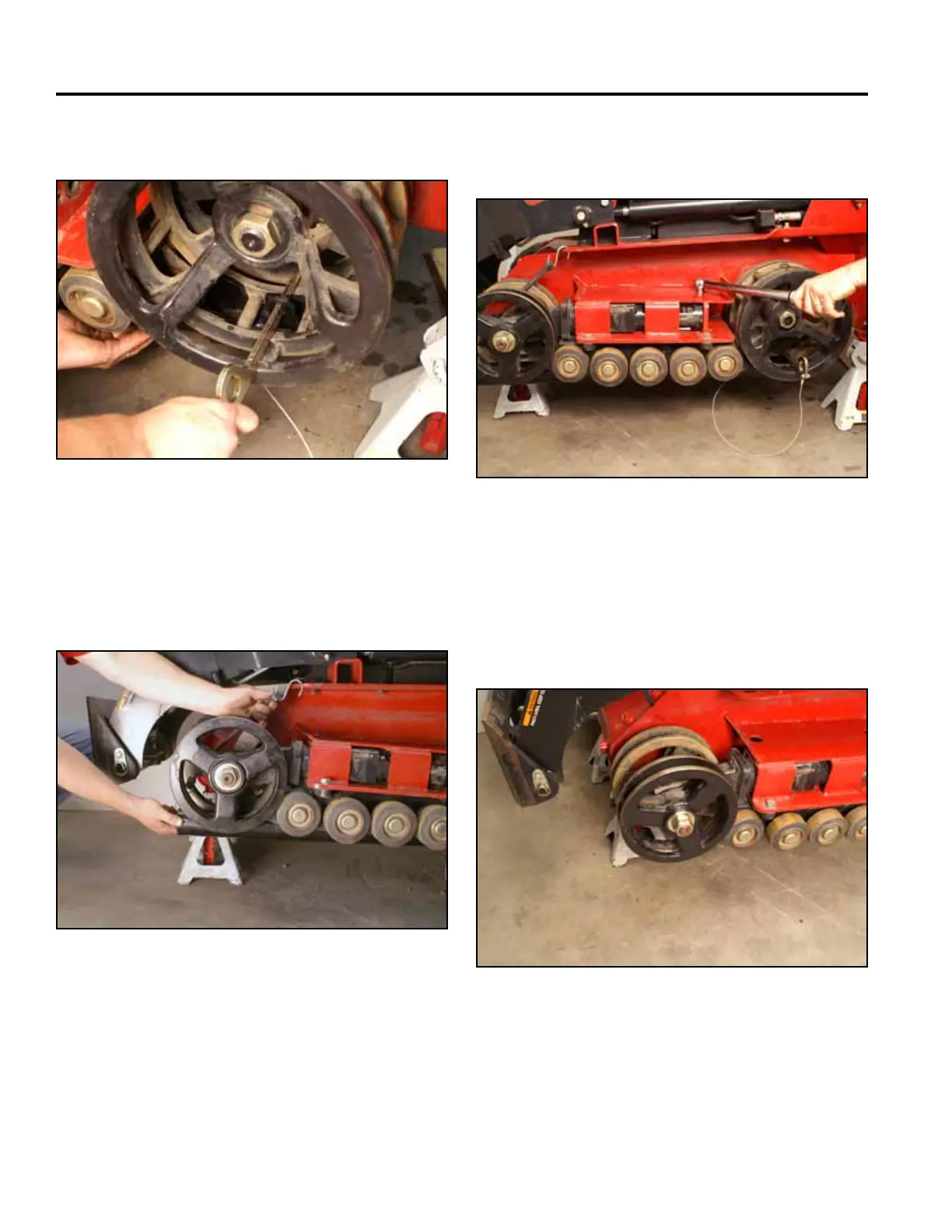

5. Secure the notched end with the pin (Fig. 1272). 7. Torque the 4 track guide mounting bolts to 75 ft-lbs.
(102 Nm) (Fig. 1274).
10. Install the track. Refer to “Wide Track Installation”
on page 7-70, or “Narrow Track Installation” on page
7-73.
Fig 1272 PICT-4484
Fig 1274 PICT-4493
8. Remove the alignment tool.
9. Wide track models only: Remove the nut and
washer/tensioner wheel assembly from the tensioner
arm wheel shaft (Fig. 1275).
6. Rotate the tool and move the track guide as neces-
saryuntilthetooltsintothetrackguidechannel.
Secure the end of the alignment tool with a strap
(Fig. 1273).
Fig 1275 PICT-4483
Fig 1273 PICT-4488a
