DRIVE SYSTEM
7-11TX525 Service Manual Rev. 000

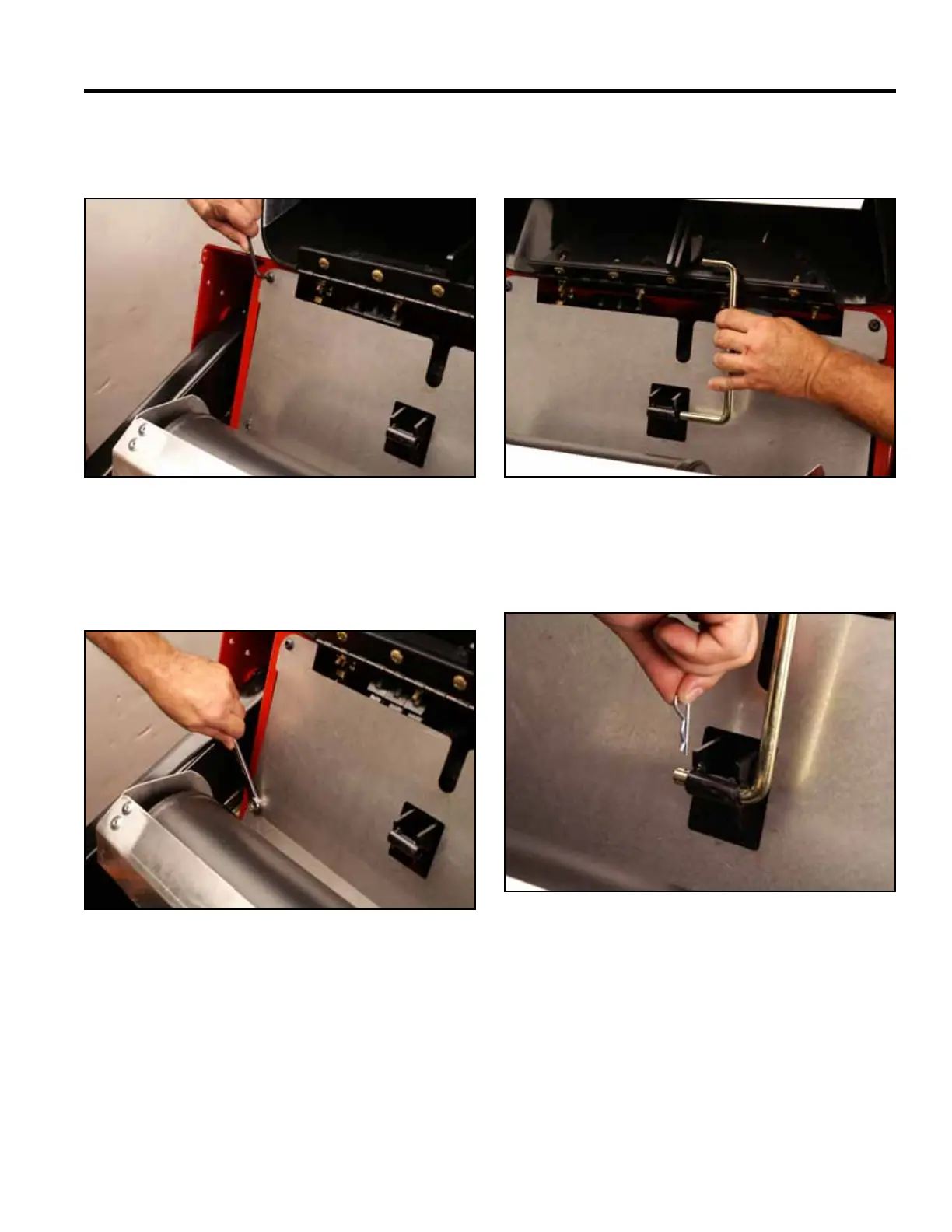

11. Support the hood and install the prop rod (Fig.
1300).
Fig 1300 Belt 003
12. Install the hairpin cotter (Fig. 1301).
Fig 1301 Belt 001
9. Using a 3/16” Allen wrench, install and tighten the 2
upper heat shield screws (Fig. 1298).
Fig 1298 Belt 004
10. Using a 1/2” wrench, install and tighten the 2 lower
heat shield screws (Fig. 1299).
Fig 1299 Belt 002
