DRIVE SYSTEM
7-95TX525 Service Manual Rev. 000

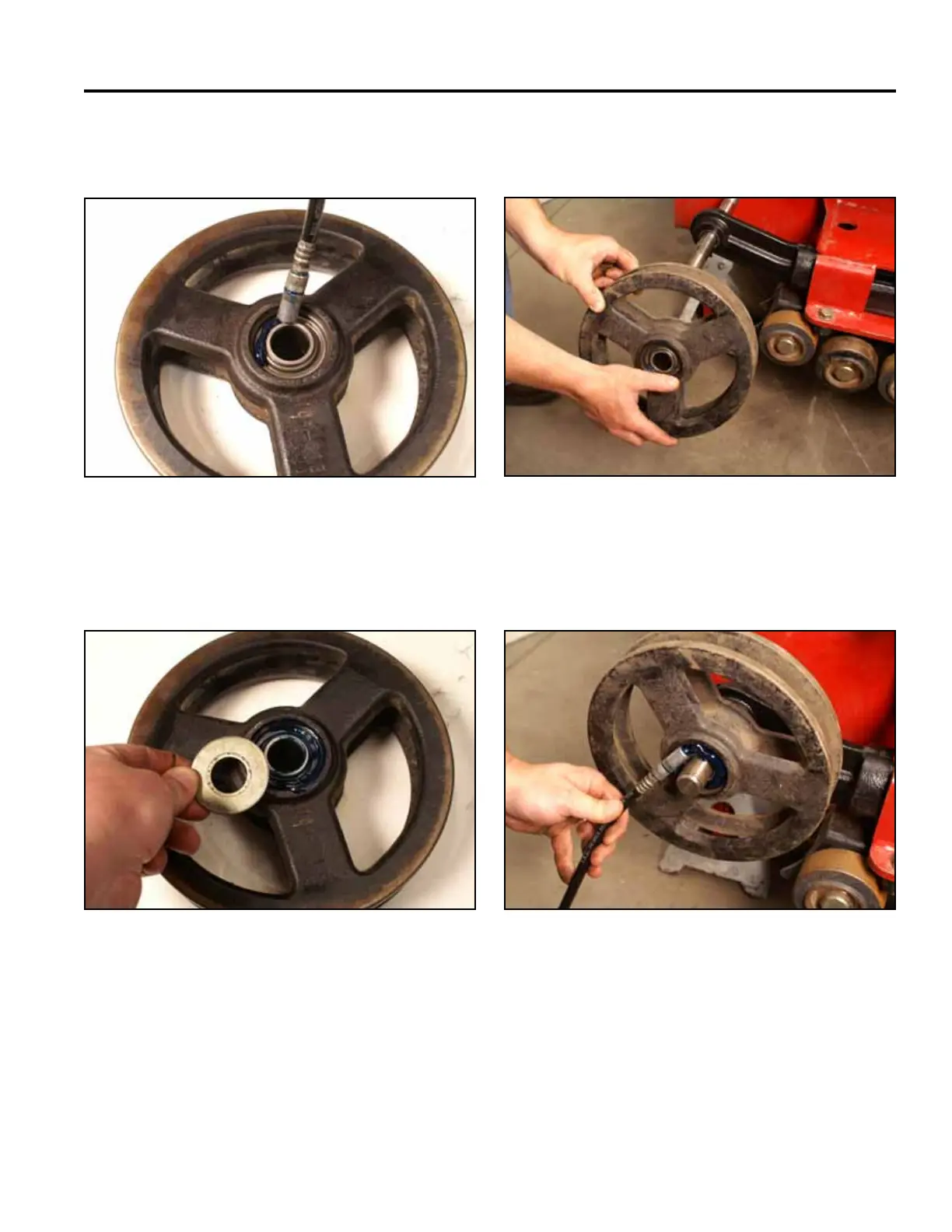

6. Apply grease to the inside of the tensioner wheel
bore (Fig. 1614).
8. Slide the tensioner wheel onto the tensioner arm
shaft (Fig. 1616).
Fig 1614 PICT-4497
Fig 1616 PICT-4579
9. Apply grease to the inside of the tensioner wheel
bore (Fig. 1617).
7. Place a washer into the greased wheel bore (Fig.
1615).
Fig 1617 PICT-4580
Fig 1615 PICT-4498
