4-9TX525 Service Manual Rev. 000
7. Looselyinstall2boltsandnutssecuringthebacking
plateandfanshroudtotheradiator/oilcooleras-
sembly(Fig.0108).
9. Tightenthe4boltssecuringthefanshroudtothe
radiator/oilcoolerassembly(Fig.0110).

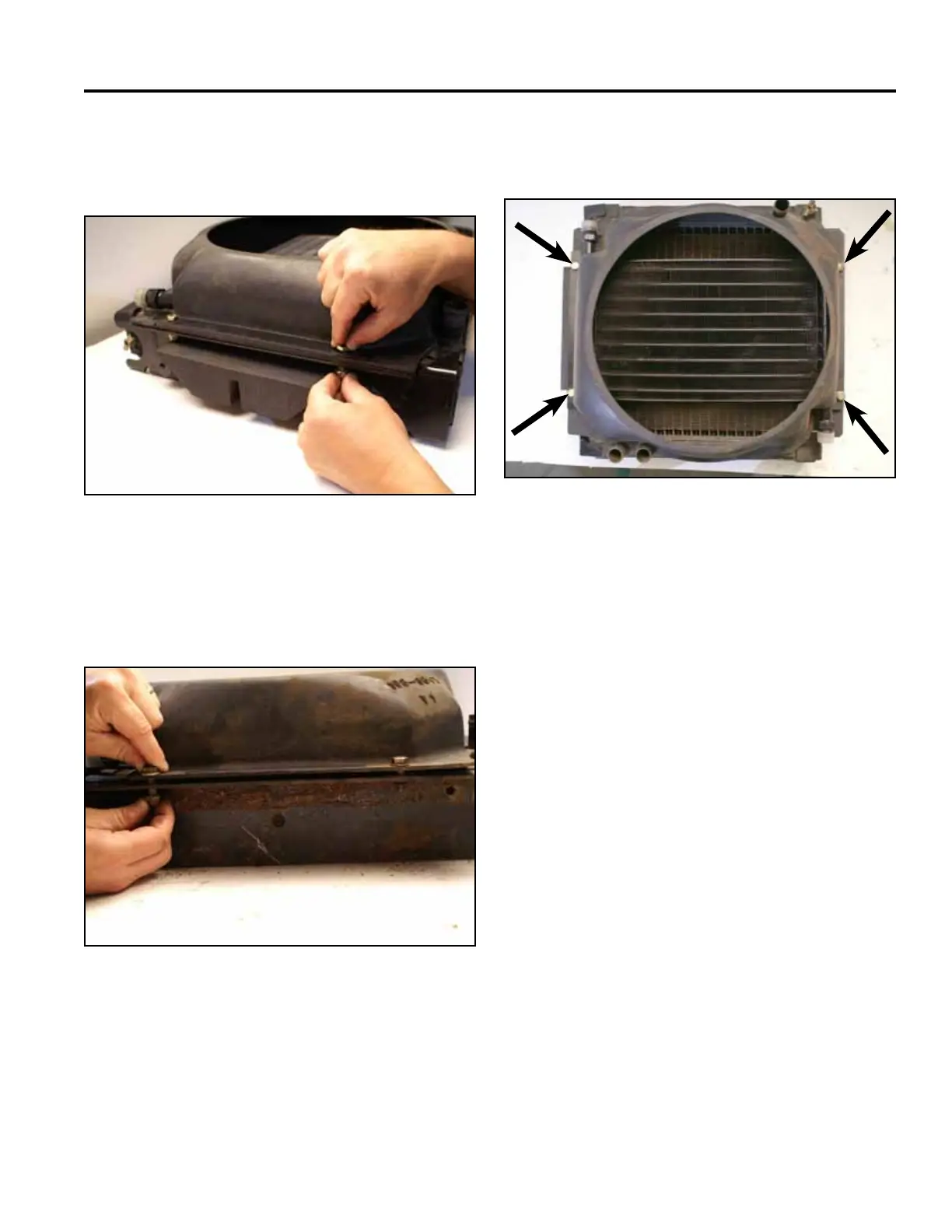

Fig 0108 PICT-5086
Fig 0110 PICT-5089a
10. Installtheradiator/oilcoolerassemblyintothe
machine.Referto“Radiator&OilCoolerAssembly
Installation”onpage4-15.
8. Looselyinstall2bolts,washersandnutssecuring
thefanshroudtotheradiator/oilcoolerassembly
(Fig.0109).
Fig 0109 PICT-5087
