Workman 1100/1110/2100/2110Page 7 – 20Chassis, Wheels, and Brakes (Rev. B)

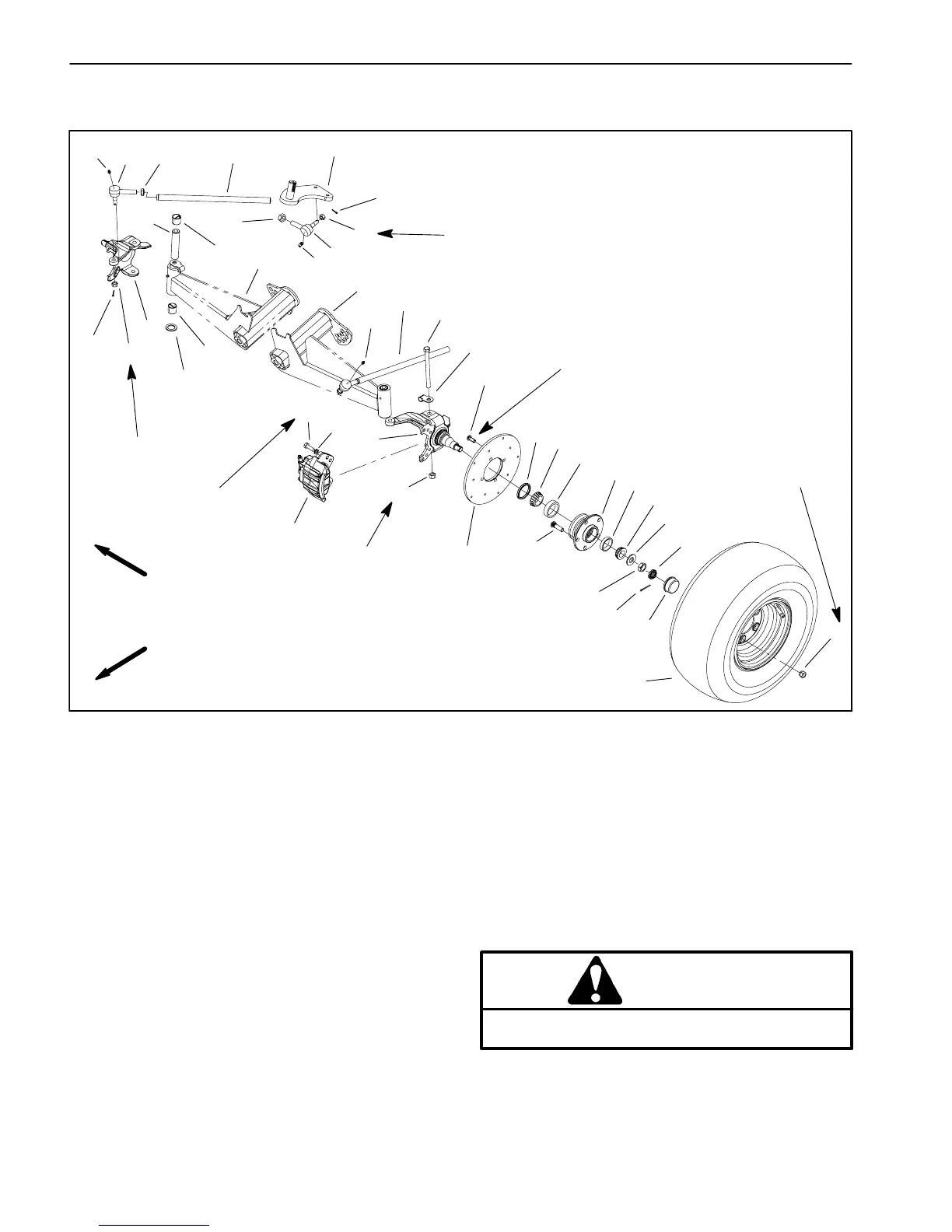

Lower Steering and Front Wheels (Workman 1110 and 2110)
1. Wheel assembly
2. Lug nut
3. Dust cap
4. Cotter pin
5. Nut retainer
6. Jam nut
7. Tab washer
8. Bearing cone
9. Bearing cup
10. Wheel hub
11. Wheel stud
12. Bearing cup
13. Bearing cone
14. Seal
15. Brake rotor
16. Socket head screw
17. Lock nut
18. LH spindle
19. Cap screw
20. Tie rod assembly
21. Bushing
22. Thrust washer
23. RH spindle
24. Castle nut
25. Cotter pin
26. Kingpin sleeve
27. Ball joint (RH thread)
28. Jam nut (RH thread)
29. Tie rod tube
30. Pitman arm
31. Ball joint (LH thread)
32. Grease fitting
33. Jam nut (LH thread)
34. A–arm (RH)
35. A–arm (LH)
36. Grease fitting
37. Brake caliper (LH shown)
38. Lock washer
39. Cap screw
40. Brake hose bracket
Figure 13
2
1
18
19
20
30
31
32
27
26
25
22
23
24
21
17
29
13
12
14
16
10
9
8
7
4
5
6
11
24
28
20 to 25 ft–lb
(27 to 34 N–m)
75 to 100 ft–lb
(102 to 136 N–m)
20 to 25 ft–lb
(27 to 34 N–m)
45 to 65 ft–lb
(61 to 88 N–m)
15
3
21
33
34
35
36
25
FRONT
RIGHT
36
37
38
39
18 ft–lb
(24 N–m)
Thread locking
Compound
40
NOTE: Both tie rod assemblies (20) consist of the fol-
lowing parts: ball joints (27 and 31), jam nuts (28 and
33), tie rod tube (29) and grease fittings (32 and 36).
Removal
1. Park machine on a level surface, stop engine, set
parking brake, and remove key from the ignition.
WARNING
Before jacking up the machine, review and follow
Jacking Instructions in Chapter 1 – Safety.
2. Chock wheels not being jacked up. Jack front wheel
off the ground and place blocks beneath the frame.
