Toro Workman 1100 Service Manual

Workman 1100/1110/2100/2110Page 7 – 22Chassis, Wheels, and Brakes (Rev. B)

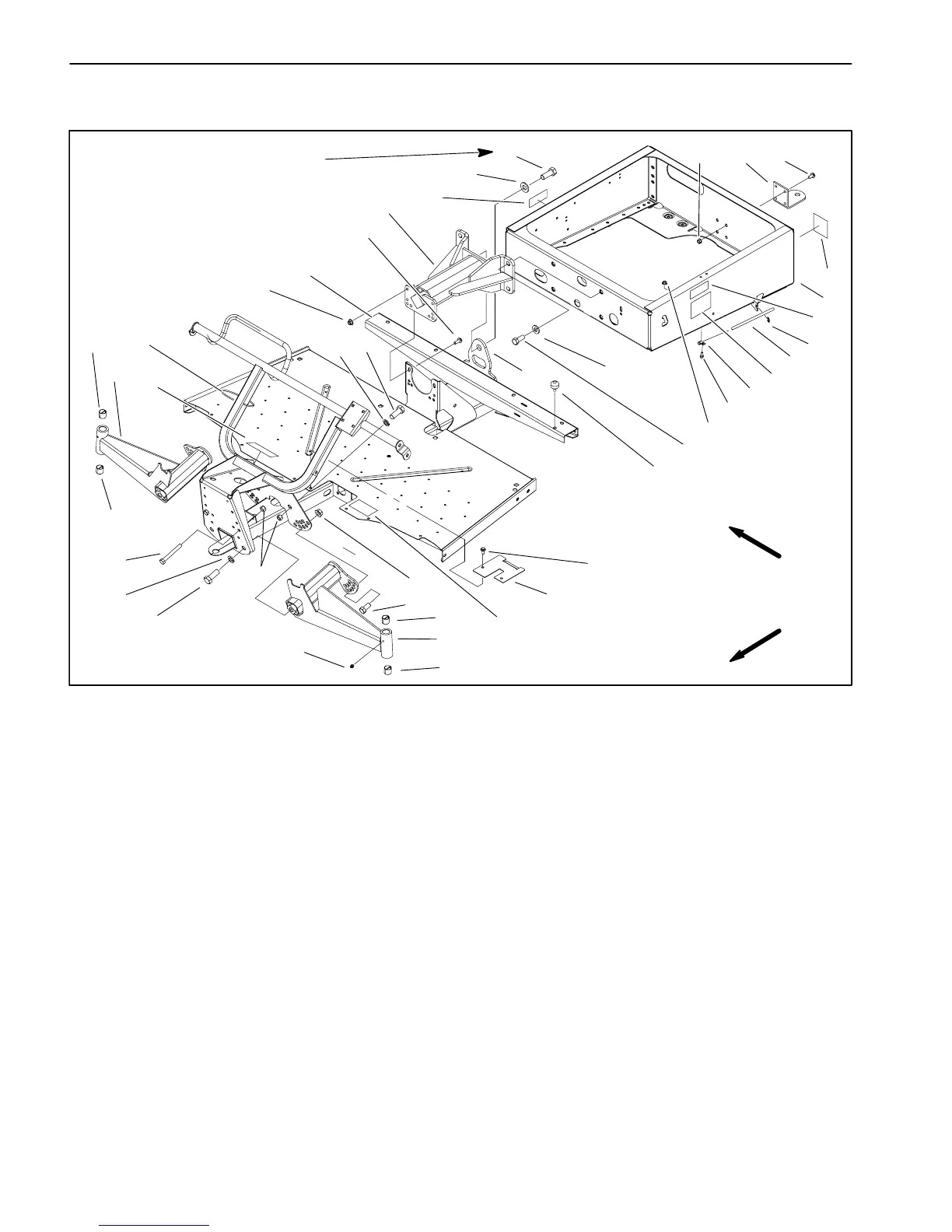

A–arm and Frame Pivot Yoke
1. Flange lock nut
2. Light duty hitch
3. Flange head screw
4. Decal
5. Decal
6. Rear frame
7. Retaining ring
8. Decal
9. R–clamp
10. Flange head screw
11. Flange nut
12. Flat washer
13. Cap screw
14. Rubber bumper
15. Flange head screw
16. Pedal cover
17. Decal
18. Flange nut
19. Ride height adjustment bolt
20. A–arm (LH)
21. Grease fitting
22. Lock nut
23. Cap screw
24. Lock washer
25. Travel limiting bolt
26. A–arm (RH)
27. Bushing
28. Decal
29. Cable tie
30. Front frame
31. Pivot yoke
32. Flange head screw
33. Front frame tab
34. Hardened washer
35. Brake cable
Figure 14
FRONT
RIGHT
1
23
4
5
6
7
8
9
14
21
22
23
24
25
26
29
30
31
32
12
34
15
16
18
19
20
1
23
10
11
13
17
5
27
27
28
27
27
23
24
33
240 to 290 ft–lb
(325 to 393 N–m)
35
