Toro Workman 1100 Service Manual

Rev. A
Workman 1100/2100/2110 Drive TrainPage 5 -- 3
Special Tools
OTC (Owatonna Tool Company) supplies special tools
for servicing Toro Commercial Products. The TORO
SPECIAL TOOLS AND APPLICATIONS GUIDE shows
service tool applications.
Some tools may have been supplied with your vehicle
or available as TORO parts. Some tools may also be
available from a local supplier.

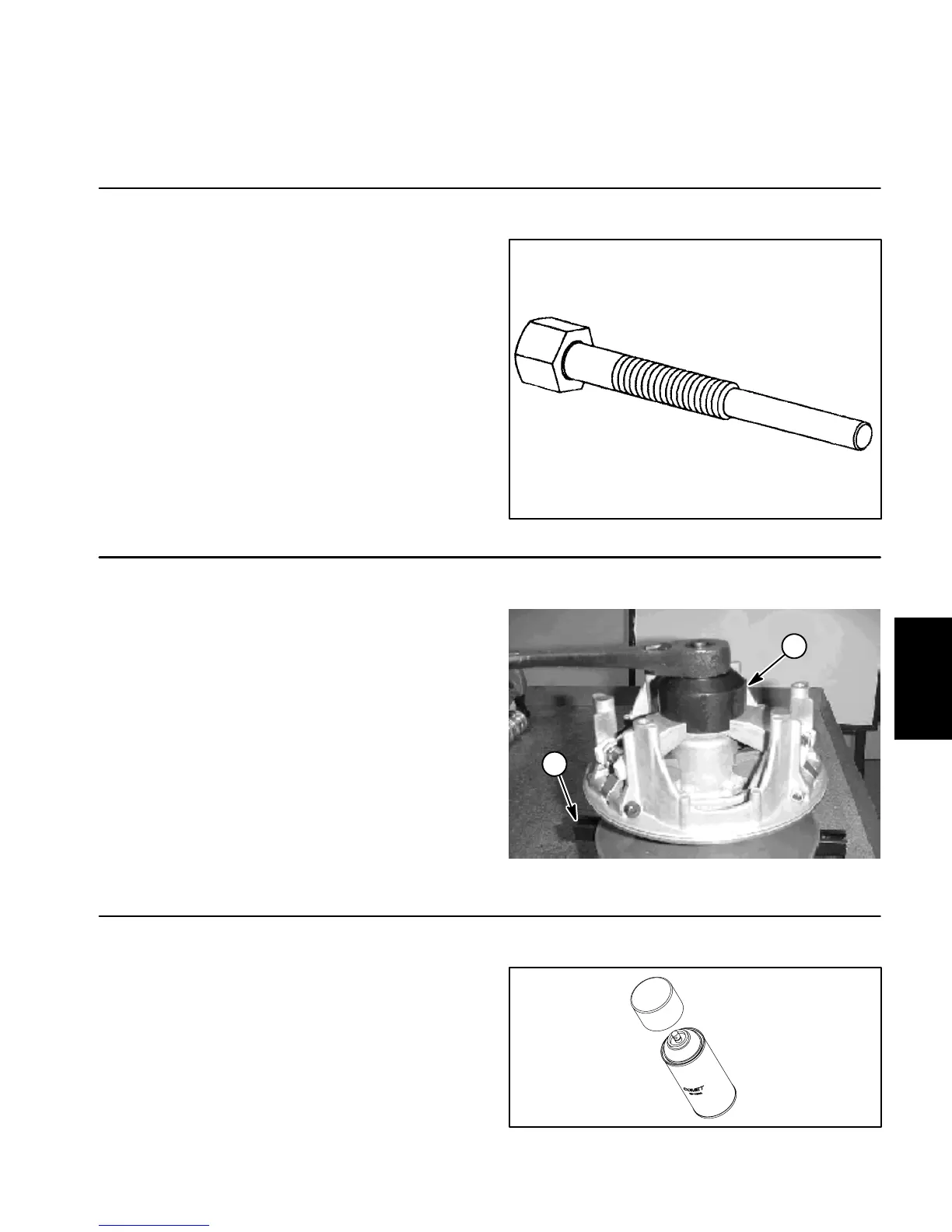

Clutch Removal Tool -- TOR4094
This tool is required to r emove the drive clutch from the
tapered drive shaft of the engine. It is placed in the
threaded hole of the fixed clutch sheave after the clutch
holding cap screw is removed.
Figure 1
Spider Removal Tool Kit (Drive Clutch) -- TOR4098
This kit is required to remove the drive clutch spider from
the post of the fixed sheave. Kit includes spanner and
clutch holding bar.
1. Holding bar 2. Spanner
Figure 2
1
3
2
4
1
2
Clutch Dry Lubricant -- Toro Part #104--7011
This lubricant should be used to properly lubricate drive
clutch components.
Figure 3
Drive
Train
