Toro Workman 1100 Service Manual

Workman 1100/2100/2110 Drive TrainPage 5 – 17
10.Remove both flange lock nuts, flat washers, isolation
mounts, and cap screws securing the engine mount to
the rear frame (Fig. 23).
11. Remove four flange lock nuts and hex head flange
screws securing the transaxle to the engine mount (Fig.
24).
12.Lower engine mount enough to allow the transaxle
and driven clutch to be removed from the rear of the ve-
hicle.
13.Remove four flange lock nuts and hex head flange
screws securing the transaxle to the rear frame. Re-
move transaxle from the rear of the vehicle (Fig. 23).
Installation
1. Position transaxle and driven clutch to the rear
frame. Secure transaxle to the rear frame with four hex
head flange screws and flange lock nuts (Fig. 23).
2. Raise engine mount.
3. Secure transaxle to the engine mount with four hex
head flange screws and flange lock nuts. Make sure R–
clamp with both shift cables is secured to the engine
mount with screw (Fig. 24).
4. Secure engine mount to the rear frame as follows
(Fig. 23 and 25):
A. Attach both isolation mounts to the engine mount.
B. Align engine mount to rear frame. Insert cap
screw through rear frame channel, isolation mounts,
and engine mount.
C. Secure cap screw with flat washer and flange lock
nut.
5. Position select lever assembly and shift cables to the
transaxle. Secure select lever assembly to the selector
shaft with lock nut. Secure both shift cables to the cable
bracket with jam nuts (Fig. 22).
6. Secure governor and cable brackets to the transaxle
as follows (Fig. 21).
A. Position governor and cable brackets with cables
as a complete unit to the transaxle case and gover-
nor shaft.
B. Secure cable bracket to the transaxle case with
both lock nuts.
C. Align scribe marks on the governor bracket and
shaft. Secure bracket to the shaft with both set
screws.
7. Secure both battery cables to the passenger side
axle tube with tie wraps.
8. Install drive belt to the driven clutch (see Service
Drive Belt in Engine Chapter).
9. Install both brake assemblies and wheels to the
transaxle (see Rear Wheel and Brake Installation in
Chapter 7 – Chassis, Wheels, and Brakes).
10.Install cargo box to the frame (see Cargo Box Instal-
lation in Chapter 7 – Chassis, Wheels, and Brakes).
11. Verify proper ground speed (see Adjust Ground
Speed).
12.Check brakes for proper adjustment (see Adjust
Brakes in Chapter 7 – Chassis, Wheels, and Brakes).

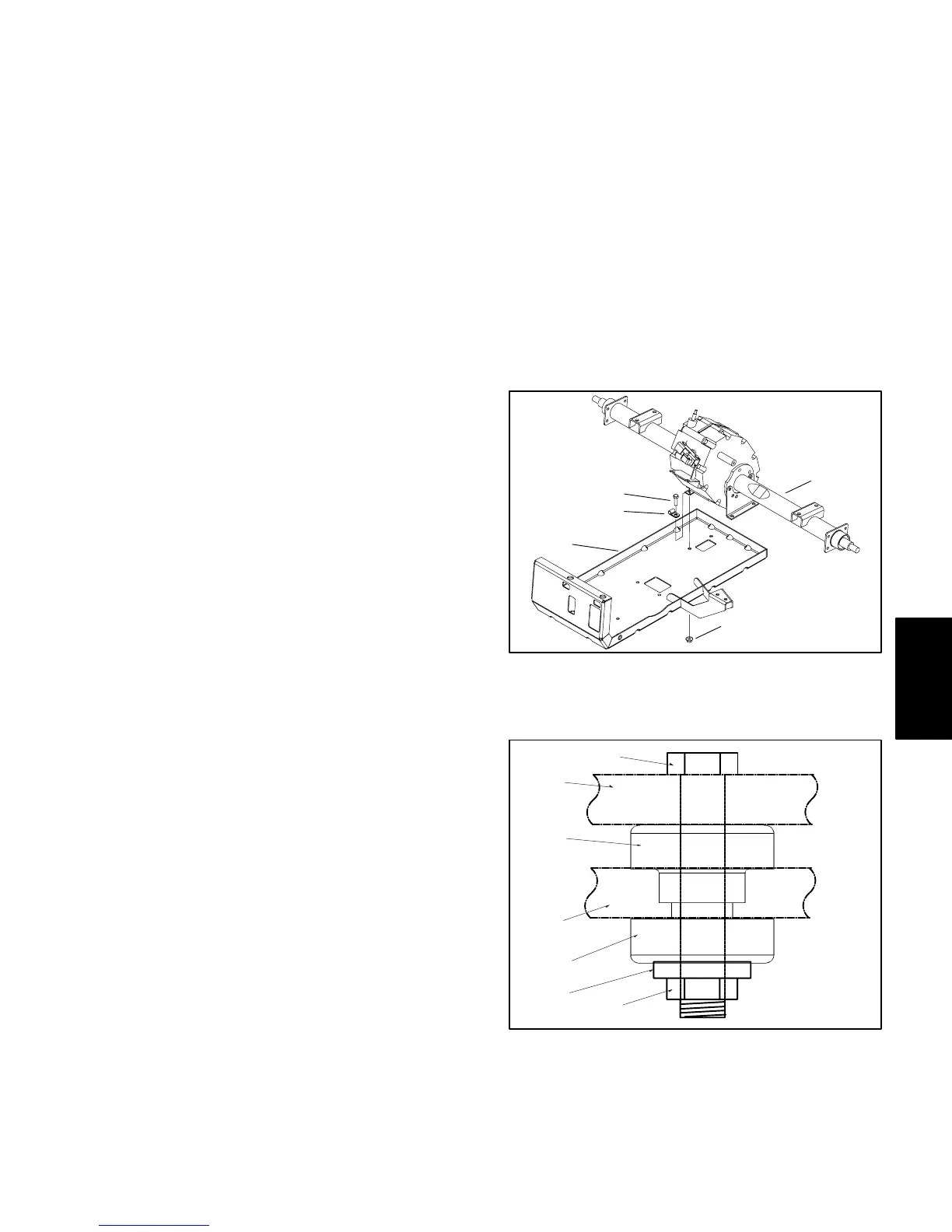

1. Flange lock nut
2. Hex head flange screw
3. Transaxle
4. Engine mount
5. R–clamp
Figure 24
5
2
1
3
4
1. Iso mount (top)
2. Iso mount (bottom)
3. Engine mount
4. Rear frame channel
5. Cap screw
6. Flat washer
7. Flange lock nut
Figure 25
1
2
3
4
5
6
7
Drive
Train
