Workman 1100/2100/2110 Drive TrainPage 5 – 33
Assembly

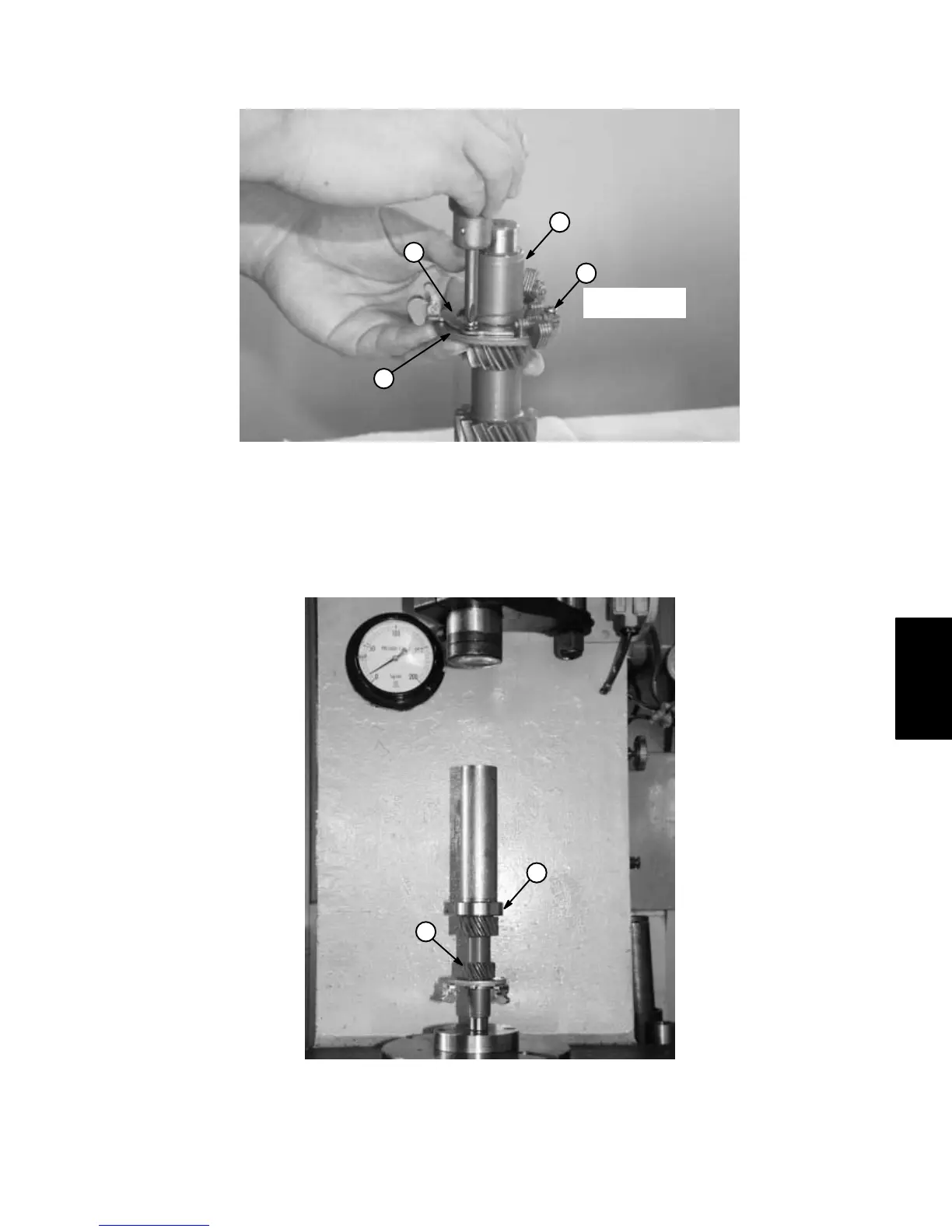

1. Assemble input shaft assembly.
1. Governor plate
2. Governor base
3. Screw
4. Governor sleeve
Figure 51
12 to 16 in–lb
(1.4 to 1.8 N–m)
4
3
1
2
IMPORTANT: To prevent the screws that secure the
governor plate to the governor from loosening, ap-
ply Loctite Blue No. 242 or equivalent to the screw
threads.
A. Secure governor plate unit to the governor base
with screws. Torque screws from 12 to 16 in–lb (1.4
to 1.8 N–m).
1. Ball bearing 2. Input shaft
Figure 52
1
2
IMPORTANT: Make sure to press ball bearing at the
inner race to prevent damaging the ball bearing.
B. Press ball bearing onto the input shaft.
Drive
Train
