Workman 1100/1110/2100/2110Page 7 – 26Chassis, Wheels, and Brakes (Rev. B)

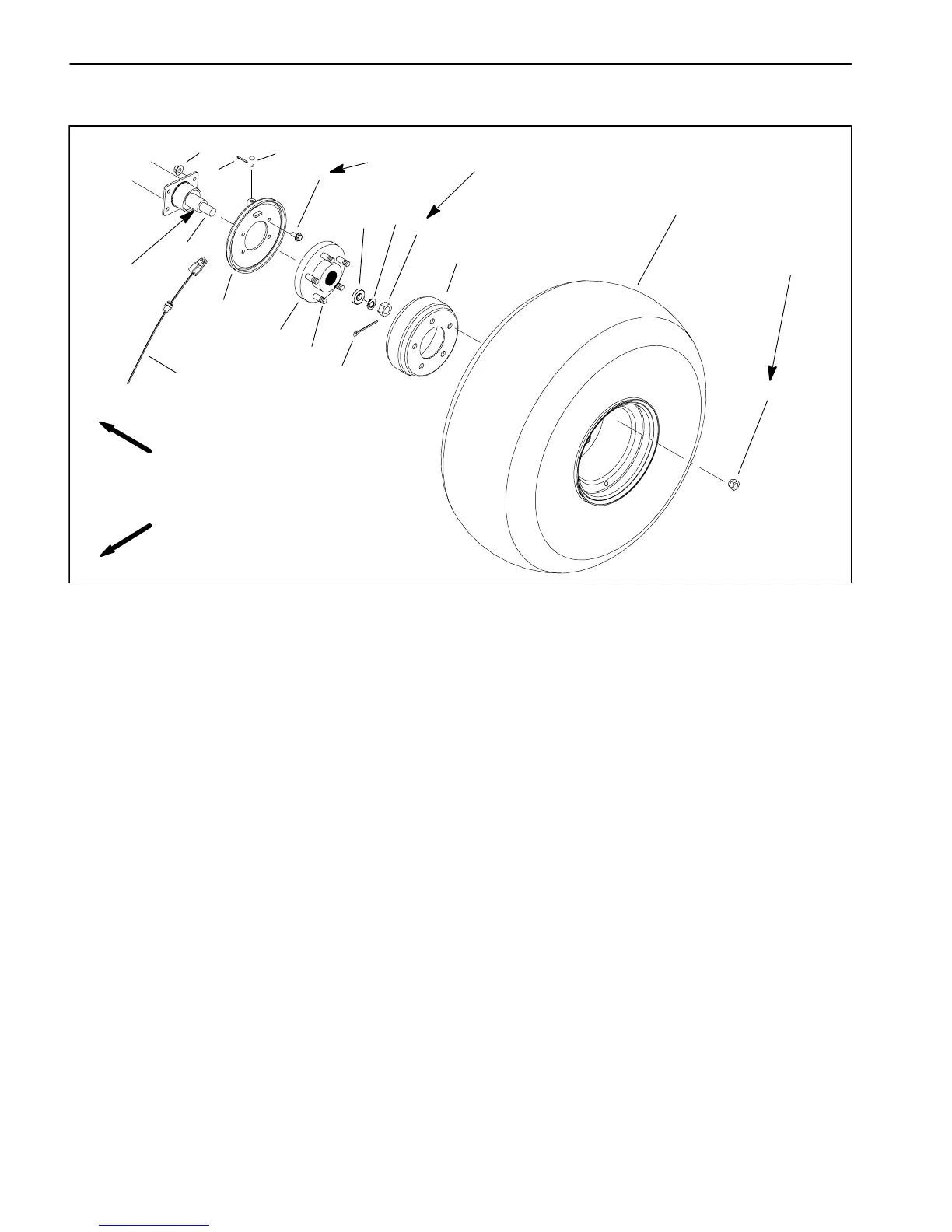

Rear Wheels and Brakes (Workman 1100 and 2100)
Figure 18
1. Lug nut
2. Wheel assembly
3. Wheel hub
4. Brake drum
5. Cotter pin
6. Castle nut
7. Lock washer
8. Spacer
9. Cap screw
10. Brake cable
11. Clevis pin
12. Cotter pin
13. Flange lock nut
14. Transaxle shaft
15. Brake assembly (LH shown)
16. Wheel stud
6
7
8
4
2
1
9
14
5
15
3
10
11
12
13
Antiseize
45 to 65 ft–lb
120 to 200 ft–lb
(61 to 88 N–m)
(163 to 271 N–m)
20 ft–lb
(27 N–m)
Lubricant
FRONT
RIGHT
16
