Workman 1100/2100/2110 Drive TrainPage 5 – 29

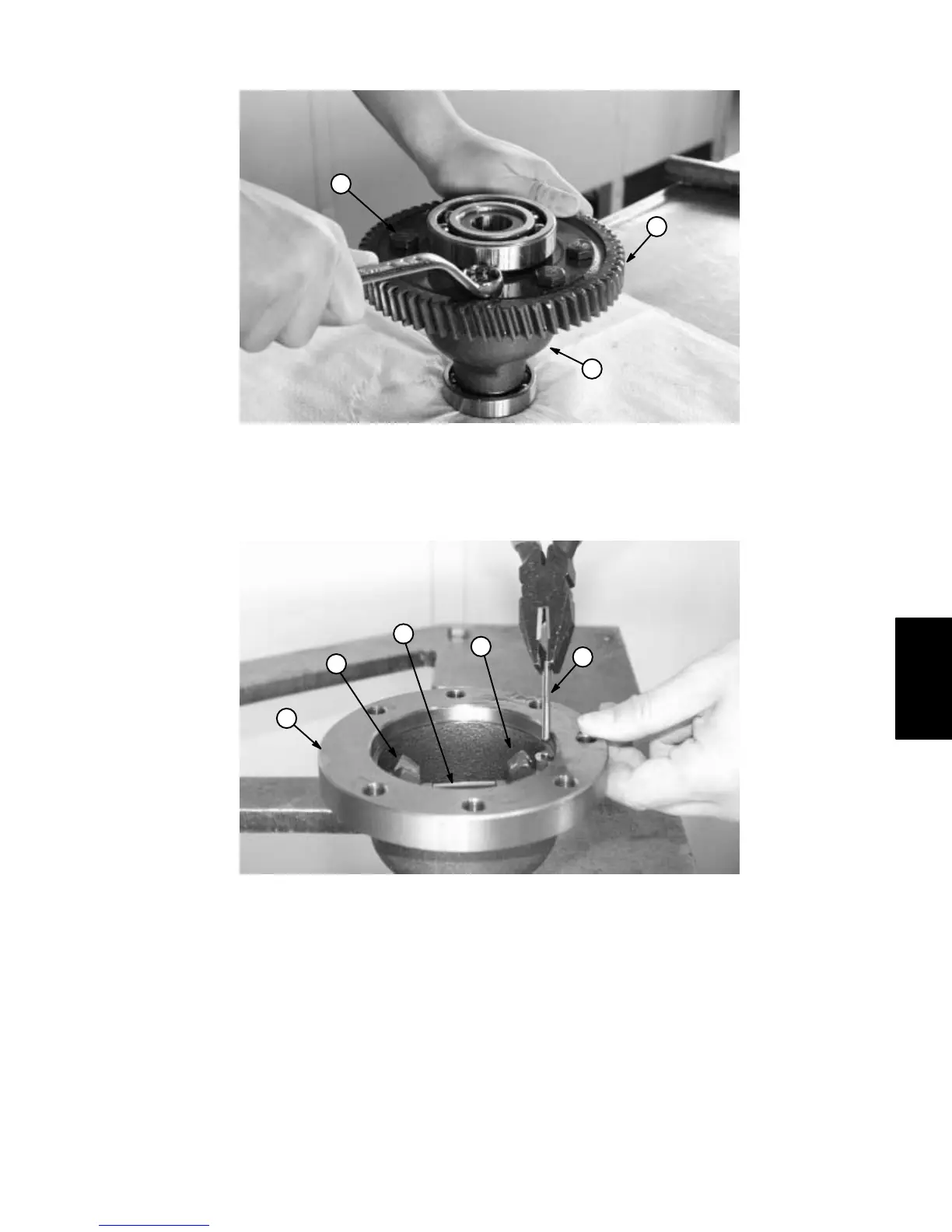

6. Disassemble differential case assembly.
1. Bolt
2. Gear 62
3. Differential case
Figure 45
1
2
3
A. Remove bolts securing gear 62 to the differential
case.
1. Spring pin
2. Differential case
3. Pinion shaft
4. Pinion gear
Figure 46
2
4
1
3
4
Note: The spring pin can be punched out from the hole
on the opposite side of gear 62.
B. Remove spring pin from the differential case. Dis-
card pin and replace it with new spring pin.
C. Remove pinion shaft and gears from the case.
Separate gears from shaft.
Drive
Train
