1.3 Names and functions
1.3.1 Outside view
* CANopen is the registered trademark of CAN in Automation.

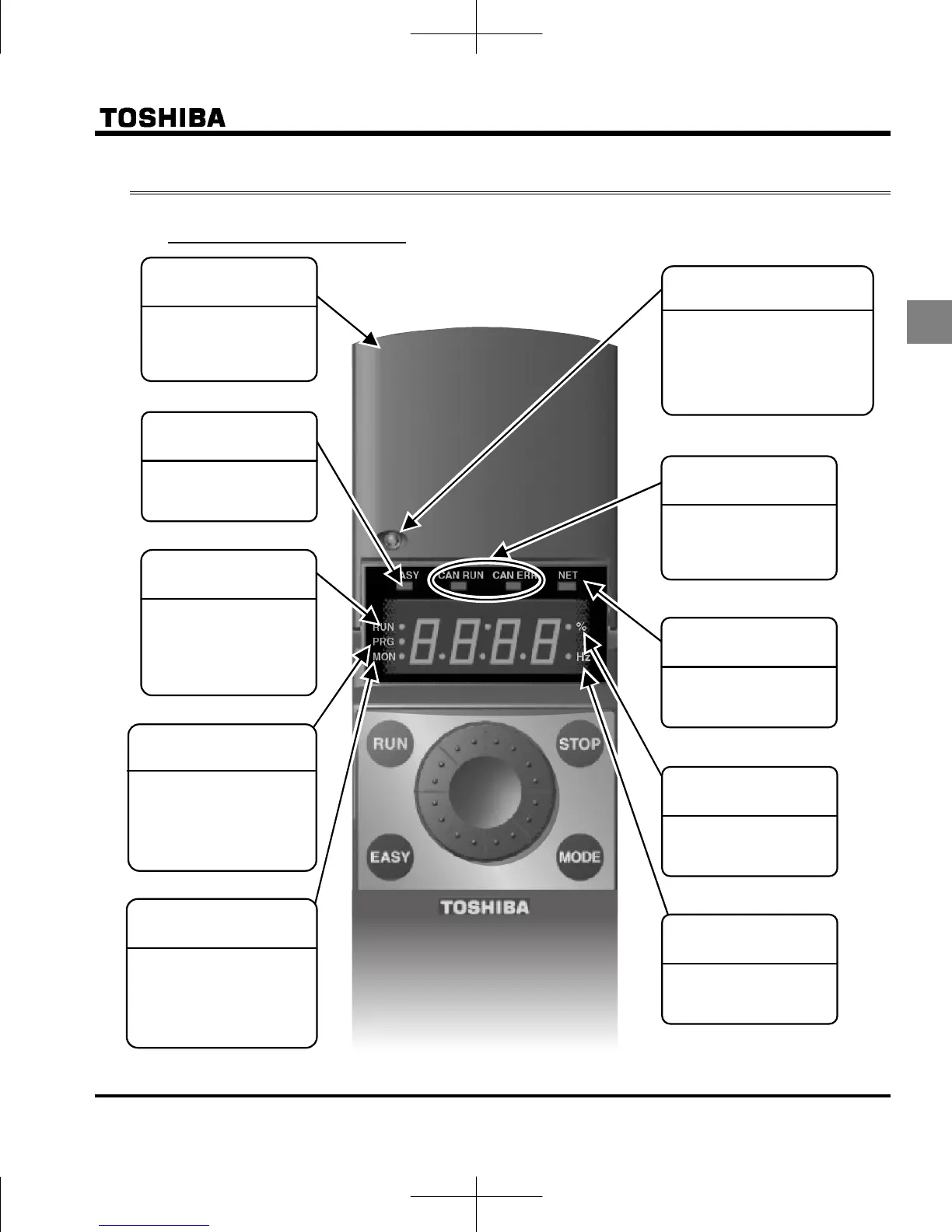

[Control panel 1]
％ lamp
Displayed numbers
are percents.
PRG
lamp
When lit, the inverter is
in parameter setting
mode. When blinking,
the inverter is in auh
or gru.
Charge lamp
Indicates there is a high
voltage still in the inverter.
Do not open the terminal
block cover when this lamp
is lit because it is dangerous.
NET lam
p
Lights when using the
communication option.
CANopen
®
LED
Lights and blinks when
using CANopen
®
communication.
MON lamp
While this is lit, the inverter
is in monitor mode.
While blinking, the inverter
is in "Past Trip History
Details Monitor Display".
Hz lamp
Displayed numbers are
in Hertz.
EASY lamp
Lights when operating
by EASY key.
RUN lamp
Lit when a frequency is
not output with the ON
run command. This lamp
blinks when operation
starts.
Upper terminal cover
This is the cover of input
power circuit terminal for
up to 4.0 kw.
