Toshiba TOSVERT VF-MB1 User Manual

E6581697
C-8
3

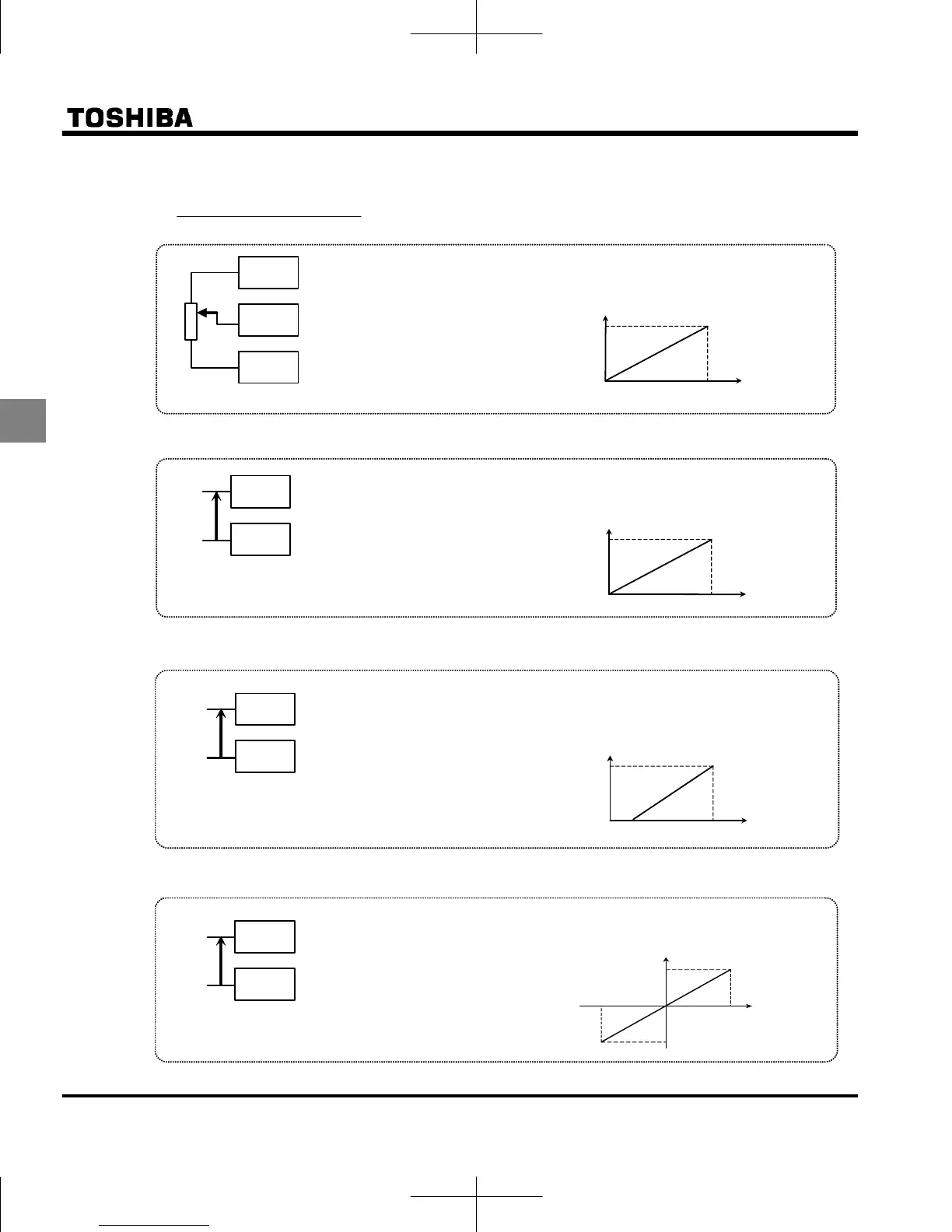

(2) Setting of frequency using external signals to terminal block (=,or)
 Frequency setting
1) Setting the frequency using external potentiometer
2) Setting the frequency using voltage input (0-10V)
3) Setting the frequency using current input (4-20mA)
4) Setting the frequency using voltage input (-10-+10V)
: Setting frequency
using potentiometer
★Potentiometer
Setting frequency using the potentiometer (1k -10k, 1/4W)
Refer to section 6.5.2 for detailed adjustment.
Frequency
50 or 60Hz
0
MIN MAX
PP
CC
V
I
A
Note) Set parameter =,, or .
★Voltage signal
Setting frequency using voltage signals (0-10V).
Refer to section 6.5.2 for detailed adjustment.
Frequency
50 or 60Hz
0
0Vdc 10Vdc
Note) Set parameter = , =.
CC
V I B +
-
: Voltage signal 0-10Vdc
★Current Signal
Current signal Setting frequency using current signals (4-20mA).
Refer to section 6.5.2 for detailed adjustment.
Frequency
50 or 60Hz
0
4mAdc 20mAdc
* Setting of parameters also allow 0-20mAdc.
Note) Set parameter =.
CC
V
I C
+
-
: Current signal 4-20mAdc
Note) Set parameter f107=1, =.
CC
V
IB
+
-
: Voltage signal -10-+10Vdc
★Voltage signal
Set the frequency using voltage signals (-10-+10V).
Refer to section 6.5.2 for detailed adjustment.
-10Vdc
+10Vdc
Forward run
Reverse run
50 or 60Hz
50 or 60Hz
