Toshiba TOSVERT VF-MB1 User Manual

E6581697
J-5
10

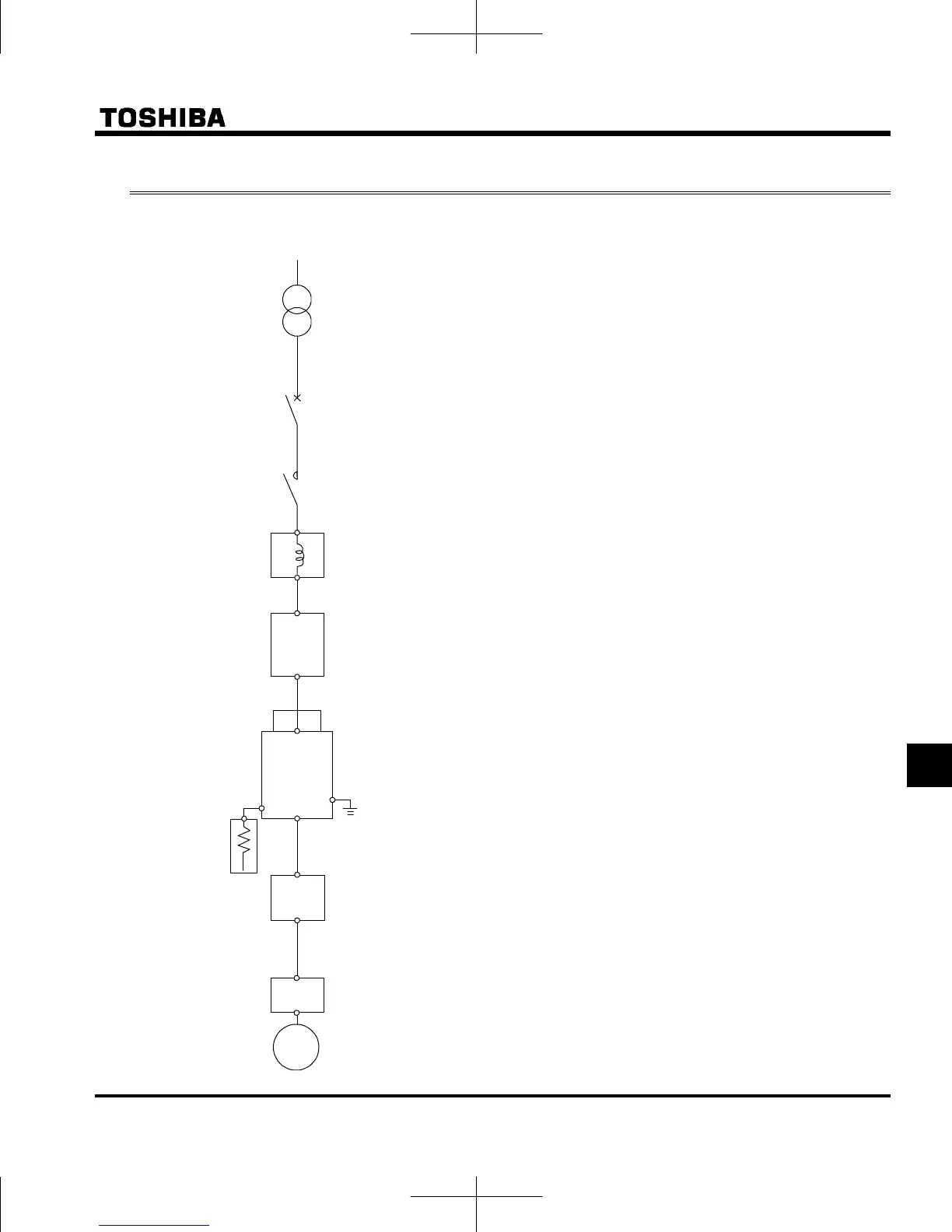

(1)
Input AC reactor
(ACL)
Molded-case circuit breaker
MCCB
Power supply
Magnetic contactor
MC
Zero-phase reactor
core-type
radio noise
reduction filter
N.F
N.F
Inverter
(3)
M
(4)
Braking resistor
Motor
Zero-phase reactor
core-type
radio noise
reduction filter
(2)
EMC noise reduction filter
(Compliant with European
standards)
(3)
(5)
Motor-end surge voltage
suppression filter
(for 500V models only)
10.4 Optional external devices
The following external devices are optionally available for this inverter series.
(6) Parameter writer : RKP002Z
(7) Extension panel : RKP007Z
(8) Remote control panel : CBVR-7B1
(9) Frequency meter : QS60T
(10) FRH kit : FRH kit
(11) USB communication converter : USB001Z
(12) Profibus DP communication option : PDP003Z
(13) DeviceNet communication option : DEV003Z
(14) EtherNet / IP-Modbus TCP communication option
: IPE002Z
(15) EtherCAT communication option : IPE003Z
(16) CANopen communication option : CAN001Z
: CAN002Z
: CAN003Z
