Triumph Street Twin User Manual

Maintenance and Adjustment
122
Rear Brake Fluid Level Inspection
and Adjustment
Warning
If there has been an appreciable drop
in the level of the fluid in either fluid
reservoir, consult your authorised
Triumph dealer for advice before riding.
Riding with depleted brake fluid levels,
or with a brake fluid leak is dangerous
and will cause reduced brake
performance potentially leading to loss
of motorcycle control and an accident.
All Models except Street Scrambler

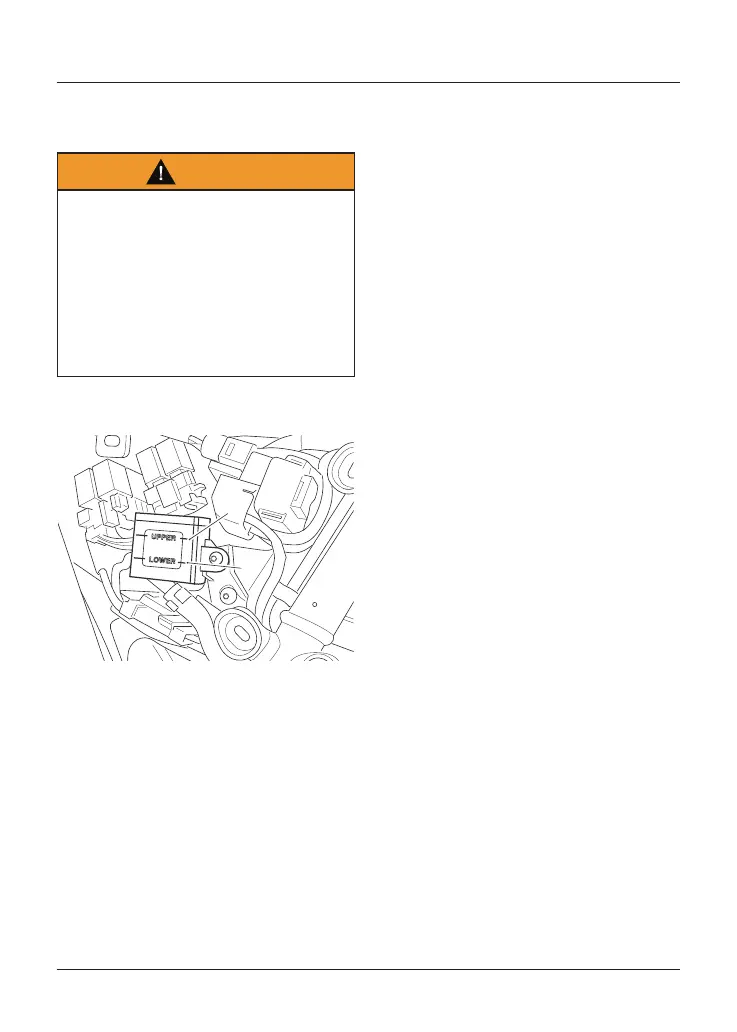

citi_1
1
2
1. Upper level line
2. Lower level line
To inspect the rear brake fluid level:
• Remove the right hand side panel as
described on page 67.
• The brake fluid level in the rear
reservoir must be kept between the
UPPER and LOWER level lines.
To adjust the rear brake fluid level:
• Release the reservoir from the
airbox without detaching the
connecting hose.
• Release the reservoir cap retaining
screws and remove the reservoir
cap noting the position of the
diaphragm seal.
• Fill the reservoir to the UPPER level
line using new DOT 4 brake fluid
from a sealed container.
• Fit the diaphragm seal into the
reservoir cap and make sure that
the holes for the fixings in the
reservoir cap and the diaphragm
seal are correctly aligned.
• Install the reservoir cap retaining
screws into the reservoir cap and
diaphragm seal assembly.
• Hold the assembly together
and position the reservoir cap,
diaphragm seal and reservoir cap
retaining screws onto the reservoir.
• Tighten the reservoir cap retaining
screws to 1.5 Nm.
• Refit the reservoir to the airbox
by tightening the original fixing to
5 Nm.
• Refit the right hand side panel.

Triumph Street Twin Specifications

General

Engine Type	Liquid-cooled, 8 valve, SOHC, 270° crank angle parallel twin
Displacement	900 cc
Bore x Stroke	84.6 x 80 mm
Compression Ratio	11.0:1
Max Torque	80 Nm @ 3, 800 rpm
Fuel System	Multipoint sequential electronic fuel injection
Final Drive	Chain
Clutch	Wet, multi-plate assist clutch
Gearbox	5-speed
Frame	Tubular steel, twin cradle
Front Tire	100/90-18
Rear Tire	150/70 R17
Dry Weight	198 kg
Wet Weight	216 kg
Fuel Consumption	4.1 l/100 km
CO2 Emissions	93 g/km
Max Power	65 PS (64 bhp) @ 7, 500 rpm
Exhaust	Brushed 2 into 2 exhaust system with twin brushed silencers
Front Suspension	41mm forks
Rear Suspension	Twin shocks with adjustable preload
Front Brakes	Single 310mm disc, Nissin 2-piston floating caliper
Rear Brakes	Single 255mm disc, Nissin 2-piston floating caliper
Front Wheel	Cast aluminium alloy, 18 x 2.75 in
Rear Wheel	Cast aluminium alloy, 17 x 4.25 in
Seat Height	765 mm
Fuel Tank Capacity	12L
Width (Handlebars)	780 mm
Wheelbase	1450 mm
Rake	25.1 °
Trail	102.4 mm
