Triumph Street Twin User Manual

General Information
75

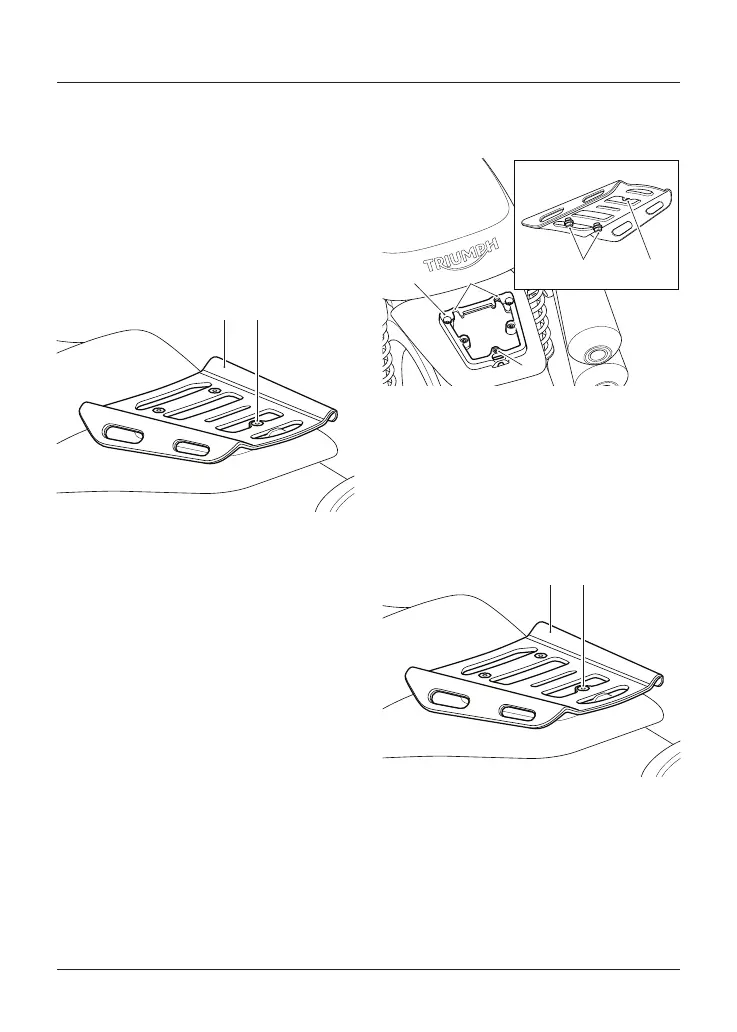

Luggage Rack
Street Scrambler Only
Note
If a luggage rack is fitted, the rider’s
seat can be removed without removing
the luggage rack.
Removal
21
1. Luggage rack
2. Screw
To remove the luggage rack:
• Remove the screw securing the
luggage rack to the luggage rack
subframe.
• Lift the luggage rack up from the
back and slide rearwards to remove
it from the luggage rack subframe.
Installation
To install the luggage rack:
• Make sure that the rider’s seat is
correctly fitted.
• Align the front locating lugs on the
luggage rack to their locating slots
on the luggage rack subframe.
• Gently push the luggage rack
forward until the locating lugs are
secure.
3
1
5
42
1. Luggage rack subframe
2. Locating lugs
3. Locating lug slots
4. Locating screw position
5. Locating screw hole
• Secure the luggage rack with its
screw in the locating screw hole and
tighten to 8 Nm.
21
1. Luggage rack
2. Screw
• Grasp the luggage rack and make
sure that it is securely retained.

Triumph Street Twin Specifications

General

Engine Type	Liquid-cooled, 8 valve, SOHC, 270° crank angle parallel twin
Displacement	900 cc
Bore x Stroke	84.6 x 80 mm
Compression Ratio	11.0:1
Max Torque	80 Nm @ 3, 800 rpm
Fuel System	Multipoint sequential electronic fuel injection
Final Drive	Chain
Clutch	Wet, multi-plate assist clutch
Gearbox	5-speed
Frame	Tubular steel, twin cradle
Front Tire	100/90-18
Rear Tire	150/70 R17
Dry Weight	198 kg
Wet Weight	216 kg
Fuel Consumption	4.1 l/100 km
CO2 Emissions	93 g/km
Max Power	65 PS (64 bhp) @ 7, 500 rpm
Exhaust	Brushed 2 into 2 exhaust system with twin brushed silencers
Front Suspension	41mm forks
Rear Suspension	Twin shocks with adjustable preload
Front Brakes	Single 310mm disc, Nissin 2-piston floating caliper
Rear Brakes	Single 255mm disc, Nissin 2-piston floating caliper
Front Wheel	Cast aluminium alloy, 18 x 2.75 in
Rear Wheel	Cast aluminium alloy, 17 x 4.25 in
Seat Height	765 mm
Fuel Tank Capacity	12L
Width (Handlebars)	780 mm
Wheelbase	1450 mm
Rake	25.1 °
Trail	102.4 mm
