Page 45 of 81
6 Loc3-10Tx Transmitter
6. Loc3-10Tx Transmitter

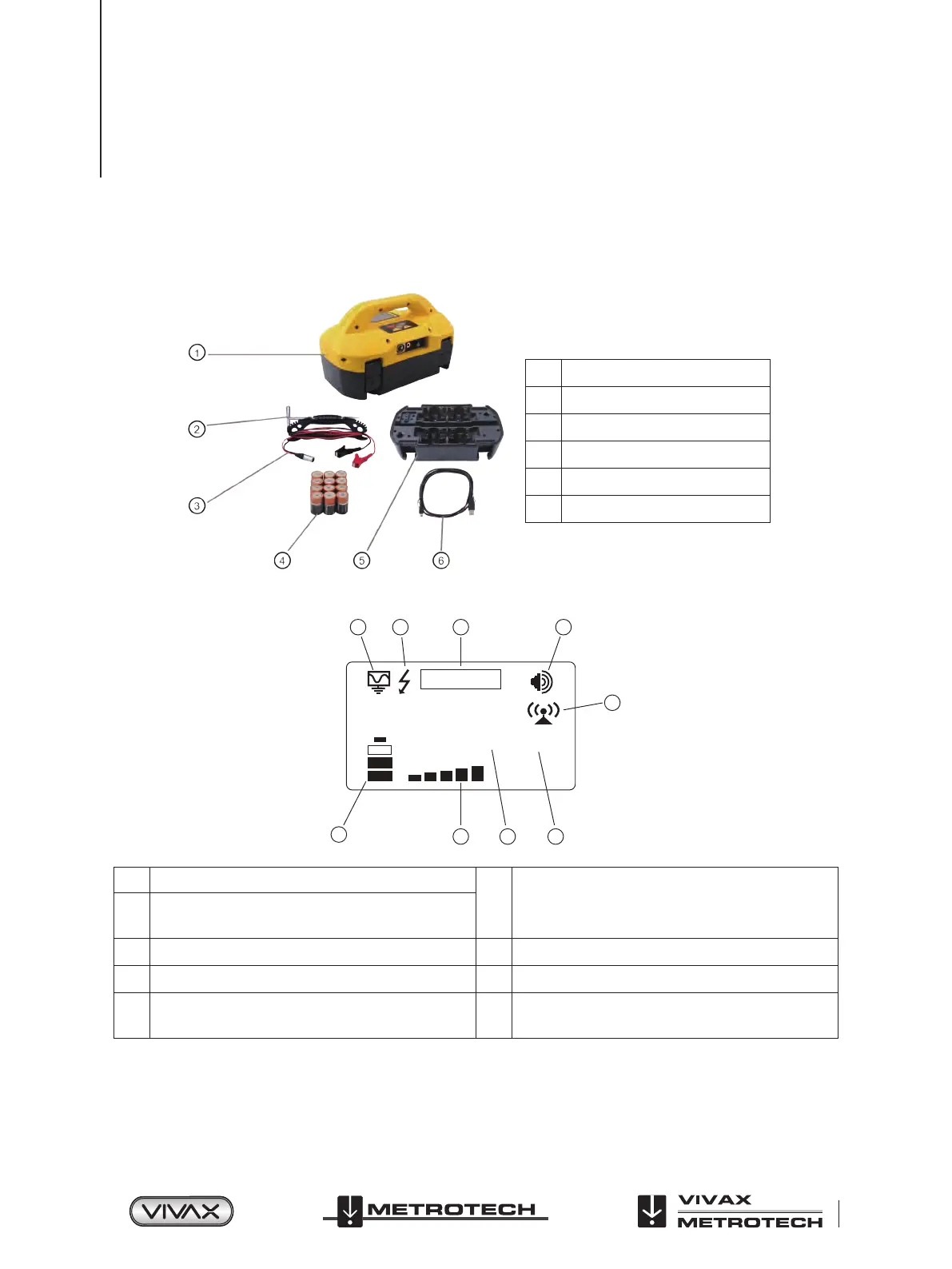

6.1 Loc3-10Tx Transmitter Overview
The Loc3-10Tx transmitter is a rugged portable transmitter powered by alkaline “D” cells or Li-ion rechargeable batteries. The
following describes the features and uses of the transmitter.
1 Loc3-10Tx transmitter
2 Ground stake
3 Direct connection lead
4 12 x D cell alkaline batteries
5 Alkaline battery tray
6 Mini-USB lead
6.1.1 Display
1 2
5
6 7 8
3 4
8.19 kHz
1 0 2mA
9
1 Mode Indication Icon
6
Output setting (Step) (lled box indicates current level
has been reached, empty box indicates requested
current level has not been achieved)
2
High Voltage Warning* (output is enabled for high
voltage)
3 Frequency Being Transmitted 7 Digital read out (mA, volts, ohms)
4 Loudspeaker Level 8 Units (mA, volts, ohms)
5 Battery Status 9
Blinking icon = Tx-Link is not paired
Solid icon = Tx-Link is active and linked to transmitter
*External Voltage Warning
The transmitter checks the line when connected. If the line is carrying voltages in excess of 25V, it will display the “high voltage”
warning icon and not allow the transmitter to operate. In addition the transmitter is protected by a 1.5A/250V fuse in the event of
excessive voltage or voltage spikes on the line.
