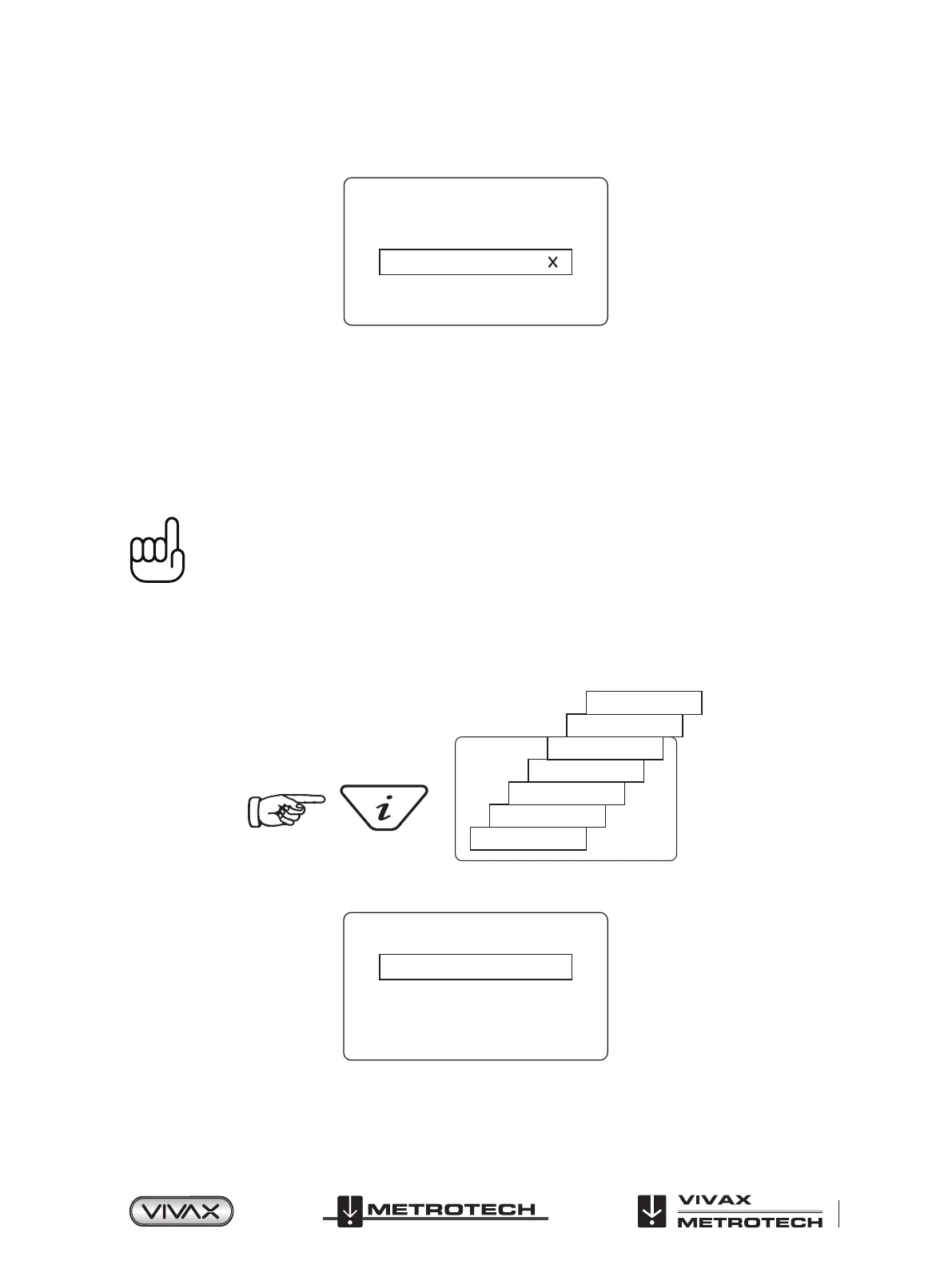

Page 53 of 81
6 Loc3-10Tx Transmitter
4. Once the wanted frequency is inside the box, press “f” pushbutton to select or deselect the frequency. An “x” will appear in
the box for a selected frequency.
Frequency Menu
SD-USA
FF Low
FF High
5. After selecting the frequencies, press the “i” pushbutton again to exit the “Frequency Menu” and return to the main display.
6. A particular frequency in the chosen list of frequencies can be selected from the main display screen by pressing the “f”
pushbutton until the wanted frequency is displayed at the top of the main screen.
6.4.3 Multi-Frequency Mode for Direct Connection
This feature can be used to energize two/three frequencies at the same time on the target line. This is especially helpful when
user is not sure which frequency is best to apply to the target line. The multi-frequency mode is not available in Fault Find and
SD modes.
NOTE
● When using the multi-frequency mode, total power will be split between the activated frequencies.
● The frequencies have to be available in the main menu.
To enter the “Multi-frequency Setup” menu:
1. Press “i” pushbutton seven times to get to the “Multi-Frequency” screen and press “f” pushbutton to activate the multi
frequency mode. An “x” symbol will appear indicating that multi-frequency mode is activated. Press “f” pushbutton again to
go in “Multi-Frequency. Setup” screen to choose the frequencies.
Volume
Voltage
Resistance
Multi Frequency
LCD Contrast
Bluetooth Menu
Frequency Menu
2. Use the “+” and “-” pushbuttons to scroll through the available frequencies and bring the desired frequency in the rst box.
Multi Freq Setup
32.8kHz
83.1kHz
200kHz
To Next Page
