Page 58 of 81
7 Loc3-5Tx Transmitter
7. Loc3-5Tx Transmitter

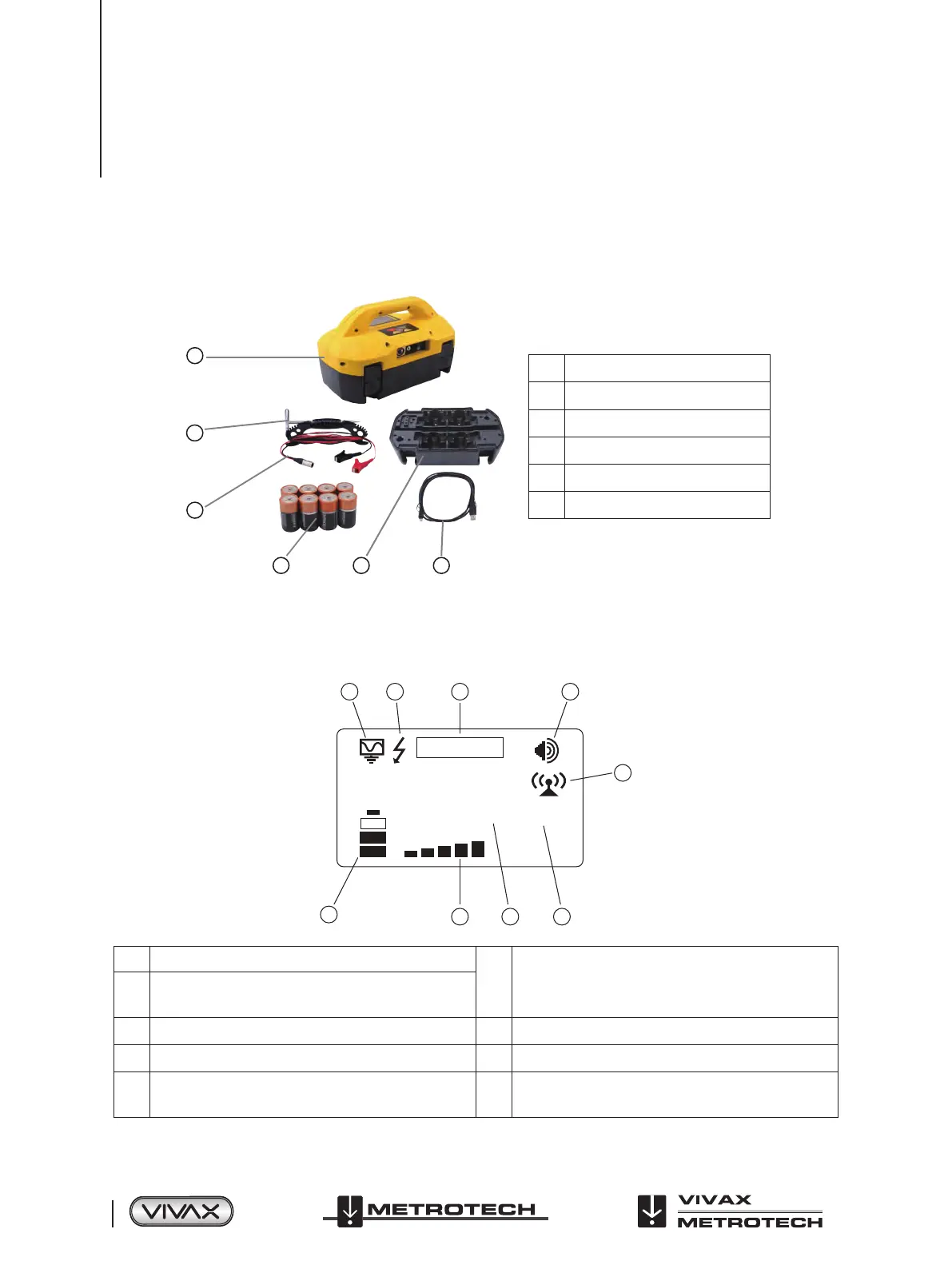

7.1 Loc3-5Tx Transmitter Overview
The Loc3-5Tx transmitter is a rugged portable transmitter powered by alkaline “D” cells or Li-Ion rechargeable batteries. The
following describes the features and uses of the transmitter.
1
2
3
4
5
6
1 Loc3-5Tx transmitter
2 Ground stake
3 Direct connection lead
4 8 x D cell alkaline batteries
5 Alkaline battery tray
6 Mini-USB lead
● A USB socket is mounted inside the battery compartment and is used for transmitter’s firmware upgrade.
● The beeper is positioned behind a small hole on one side of the housing.
7.1.1 Display
1 2
5
6 7 8
3 4
8.19 kHz
1 0 2mA
9
1 Mode Indication Icon
6
Output Setting (Step) (lled box indicates current level
has been reached, empty box indicates requested
current level has not been achieved)
2
High Voltage Warning* (output is enabled for high
voltage)
3 Frequency Being Transmitted 7 Digital Read Out (mA, volts, ohms)
4 Loudspeaker Level 8 Units (mA, volts, ohms)
5 Battery Status 9
Blinking icon = Tx-Link is not paired
Solid icon = Tx-Link is active and linked to transmitter
