Page 79 of 81
9 Accessories & Options

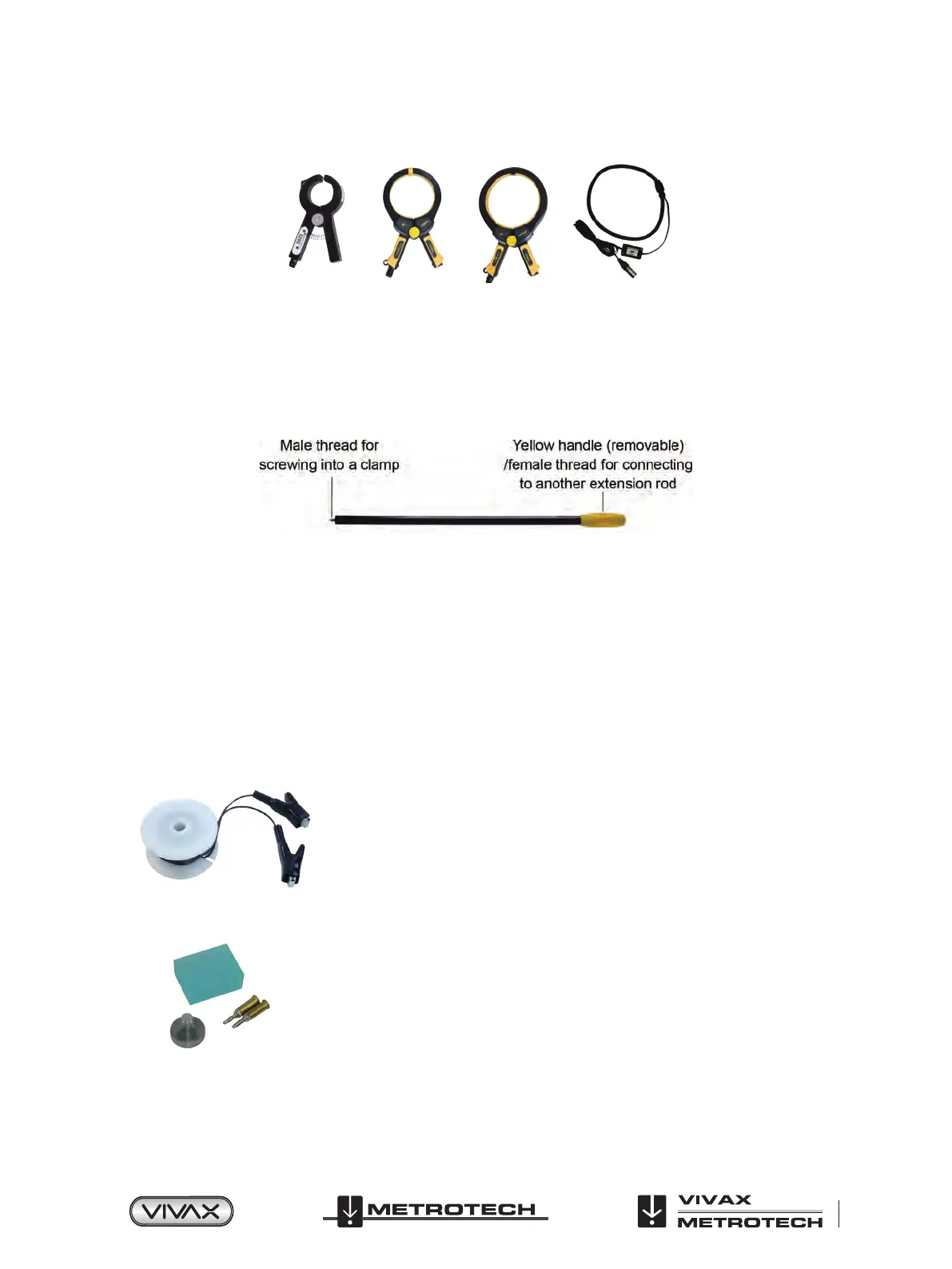

9.8 Clamps
An accessory used to apply the transmitter signal to an insulated line, removing the need to connect the transmitter signal direct-
ly to a conductor or cable sheath.
● Available in 2-inch (50mm), 4-inch (100mm) and 5-inch sizes.
● An 18-inch (45cm) flexible version is also available.
9.9 Clamp Extension Rod
The extension rod is fitted with a 10mm screw thread. This male thread will screw into the handle of the signal clamp and will
enable the clamp to be attached too hard to reach cables such as in manholes or overhead cables.
The extension rod is also fitted with a female thread in the handle which enables the rods to be fitted together to further extend
the range. To access this thread the yellow handgrip needs to be slid of the end of the rod.
To operate the clamp jaws when attached to the rod, gently pull on the clamp cord which will open the jaws. Release cable to
close them.
9.10 Ground Extension Spool
Used to extend the ground connection to a suitable grounding position.
9.11 Banana Plug Adapter
Adapts the direct connection crocodile clip to banana plug allowing the direct connection
leads to be connected to a banana socket.
