Instruments and Controls
This chapter describes the instruments, panels and controls Volvo Penta sells for your engine.
If you would like to complement your instrumentation, or if your boat is equipped with instruments not described
here, we ask that you contact your Volvo Penta dealer.
Ignition Lock
There is always a helm station with an e-Key panel or
an ignition switch on the boat. The ignition must be
switched on here in order for other helm stations to be
used.
Read the starting instructions in Starting, page 61
chapter to make sure you use the correct start
procedure.
There is always a helm station with an e-Key panel on
a boat. The ignition must be switched on here in order
to use other helm stations.
Read the starting instructions in Starting, page 61 to
make sure you use the correct start procedure.
e-Key panel
The Volvo Penta e-Key consists of a panel and a key
fob.

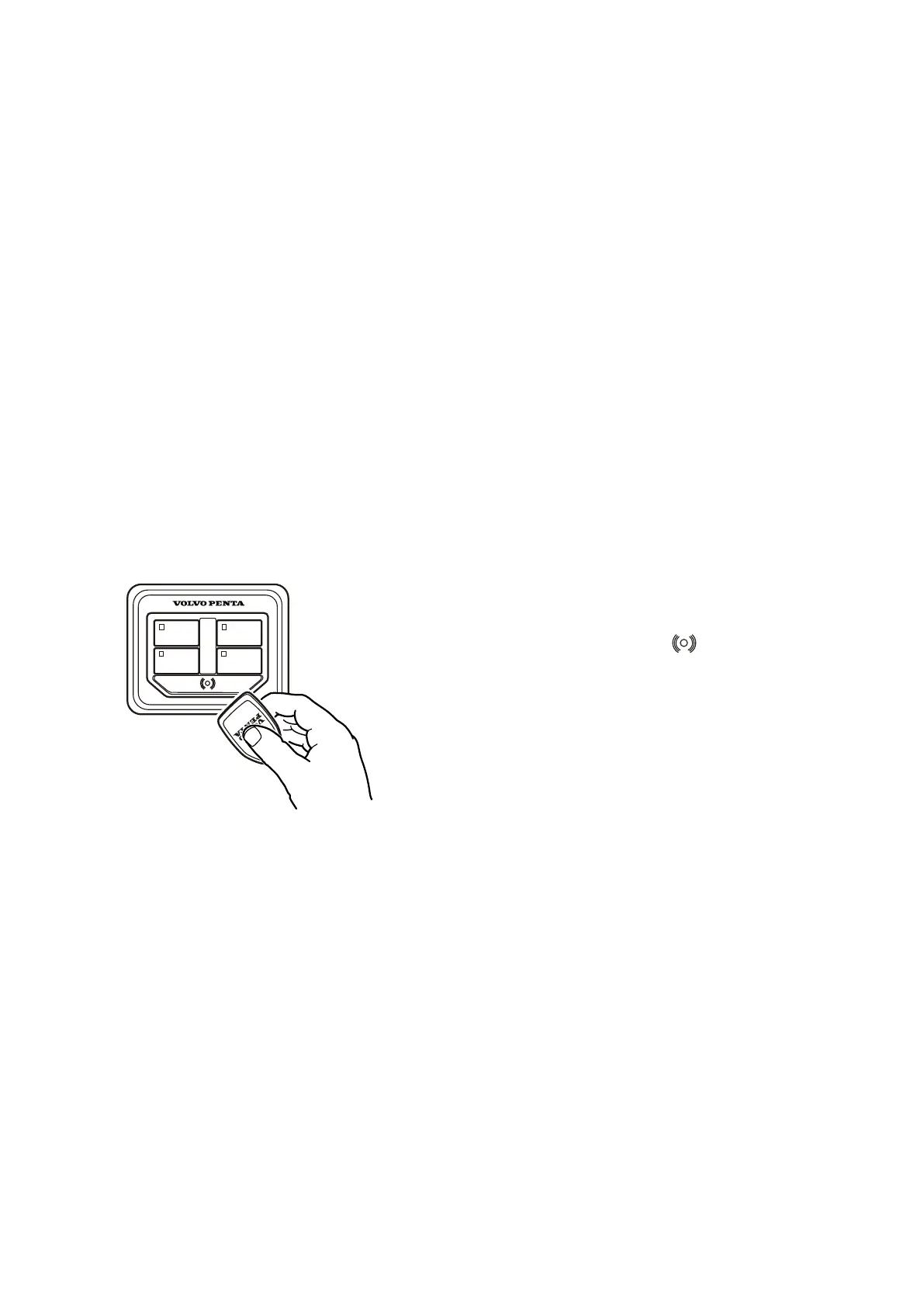

Hold the key fob in front of the symbol on the panel
to unlock the EVC system. A sound confirms the
system is unlocked.
When the electrical system is locked, a red light will
flash under the symbol. The lamp goes out to indicate
the system is unlocked.
Key Management
Two key fobs are provided at the time of delivery. It is
possible to add additional keys; the system allows up
to four keys. With a key already registered to the
system other keys can be added or removed, see Key
Management, page 129.
Safety Lanyard
A safety lanyard (optional extra) can be connected to
the panel. Should the safety lanyard be removed, the
engines will stop, the system alerts and a warning
message will be displayed in the Information Panel.
IGNITION IGNITION
START/STOP START/STOP
P0016313
12 47708638 09-2016 © AB VOLVO PENTA
