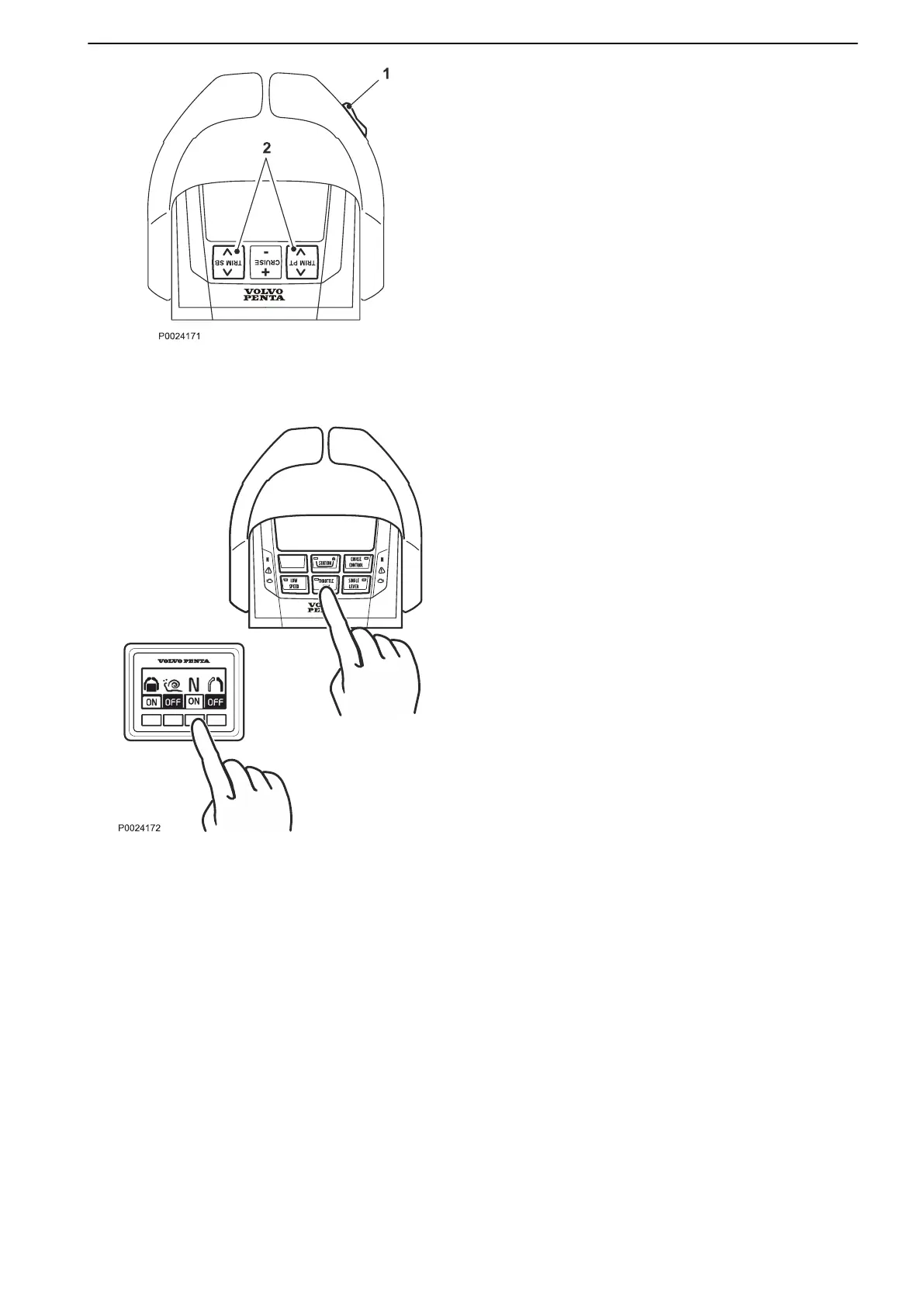

The picture beside shows the other side of the control.
1 TRIM
Manually adjust the interceptors. Manual
adjustment using the TRIM button (1) will override
the automatic function, if enabled.
For twin engine installations, the adjustment of the
drives are synchronized.
2 TRIM PT and TRIM SB
Manually adjust the interceptors individually by
using the TRIM PT button (2) for portside
interceptor adjustment, and the TRIM SB button (2)
for starboard interceptor adjustment.
Disengaging the Shift Function
The gearshift function can be disconnected so that the
control lever only operates the throttle.
1 Put the control levers in neutral.
2 Press the control's “Throttle Only” button or the
neutral button (N) on the helm station panel.
3 Release the button. The N symbol on the control
will light up as confirmation that the gearshift
function is disengaged and that the lever will
only affect engine revolutions.
To exit neutral mode, press the button again.
Instruments and Controls
47708638 09-2016 © AB VOLVO PENTA 43
