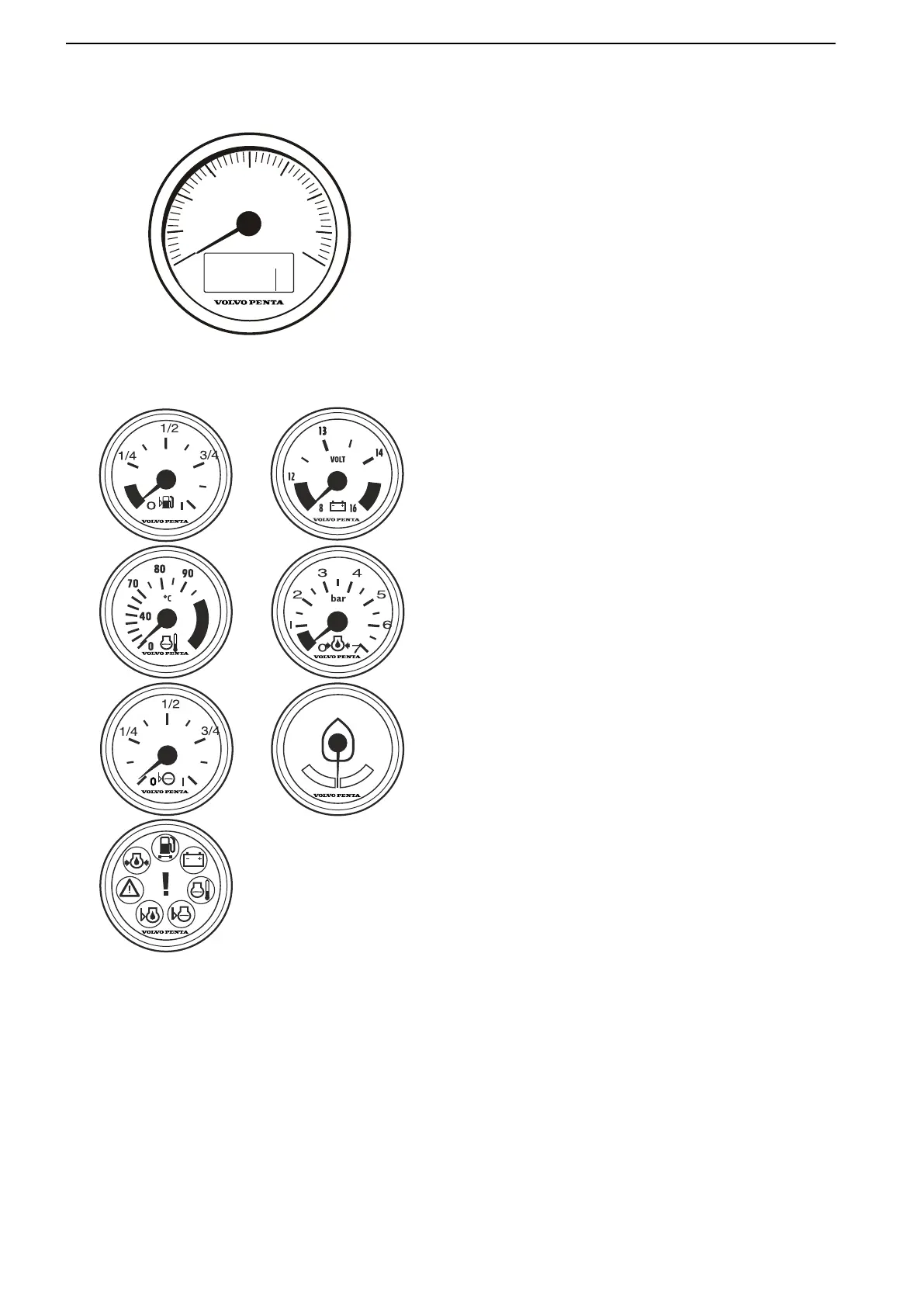

Gauges
These instruments are sold as engine options by Volvo
Penta.
Tachometer
The tachometer displays engine speed; multiply the
value shown on the dial by 1,000 to get the number of
engine revolutions per minute.
Engine hours are displayed in the tachometer window.
When a function is activated a symbol is shown briefly
on the display.
1 Fuel Level Gauge
The fuel level gauge shows the level of remaining
fuel.
2 Voltmeter, Battery Charging
The voltmeter shows the alternator charge current.
During operations, the charge voltage should be
around 14 V. When the engine is stopped and
electrical power switched on, the battery voltage
should be approximately 12 V.
If a 24 V system is installed, the charge voltage
should be around 28 V during operations.
3 Coolant Temperature Gauge
The instrument shows engine coolant temperature.
During operations, coolant temperature should
normally be between 75 and 95°C (167-203°F).
4 Oil Pressure Gauge
The oil pressure gauge displays engine oil
pressure. During operations, the oil pressure is
normally 3 to 5 bar. When idling, lower values are
normal.
5 Fresh Water Level Sensor
The dial shows the level of fresh water in the fresh
water tank.
6 Rudder Position Indicator
The instrument shows rudder position.
7 Alarm Monitor
The alarm monitor provides a visual warning for any
active alarm.
0
3
2
1
4
RPMX1000
P0012490
351
h
Instruments and Controls
18 47708638 09-2016 © AB VOLVO PENTA
