Adjusting the friction brake

The control lever has a friction brake that can be

adjusted for lighter or stiffer lever movement.

Resistance in click mode can also be adjusted.

1 Switch off the engine.

2 Remove the cover (3).

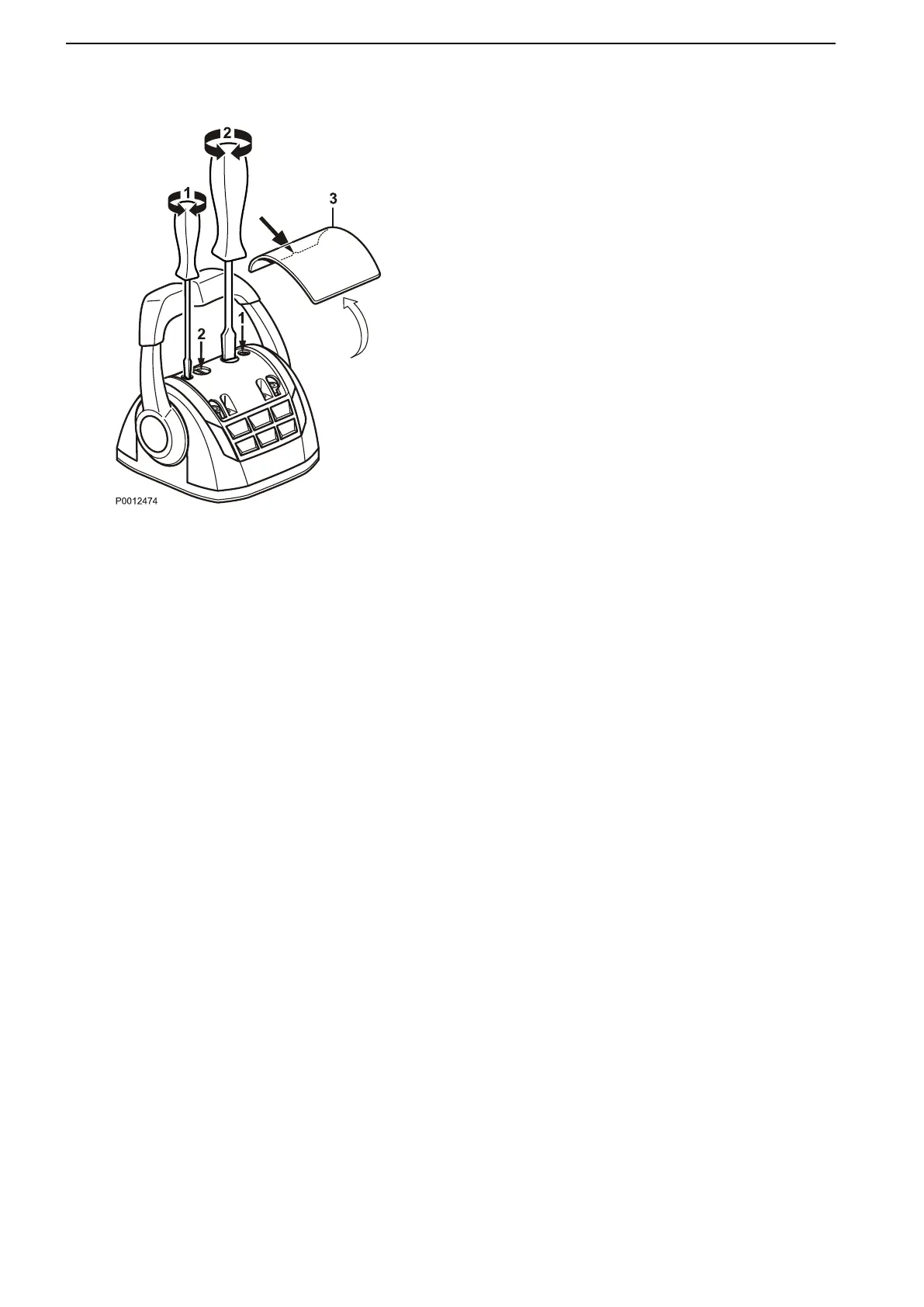

3 Adjust the friction brake (1) and/or click mode (2) by

turning the screw clockwise for stiffer lever

movement, and counterclockwise for lighter lever

movement.

4 Replace the cover.
