Station Handling for Type Approved
Installation

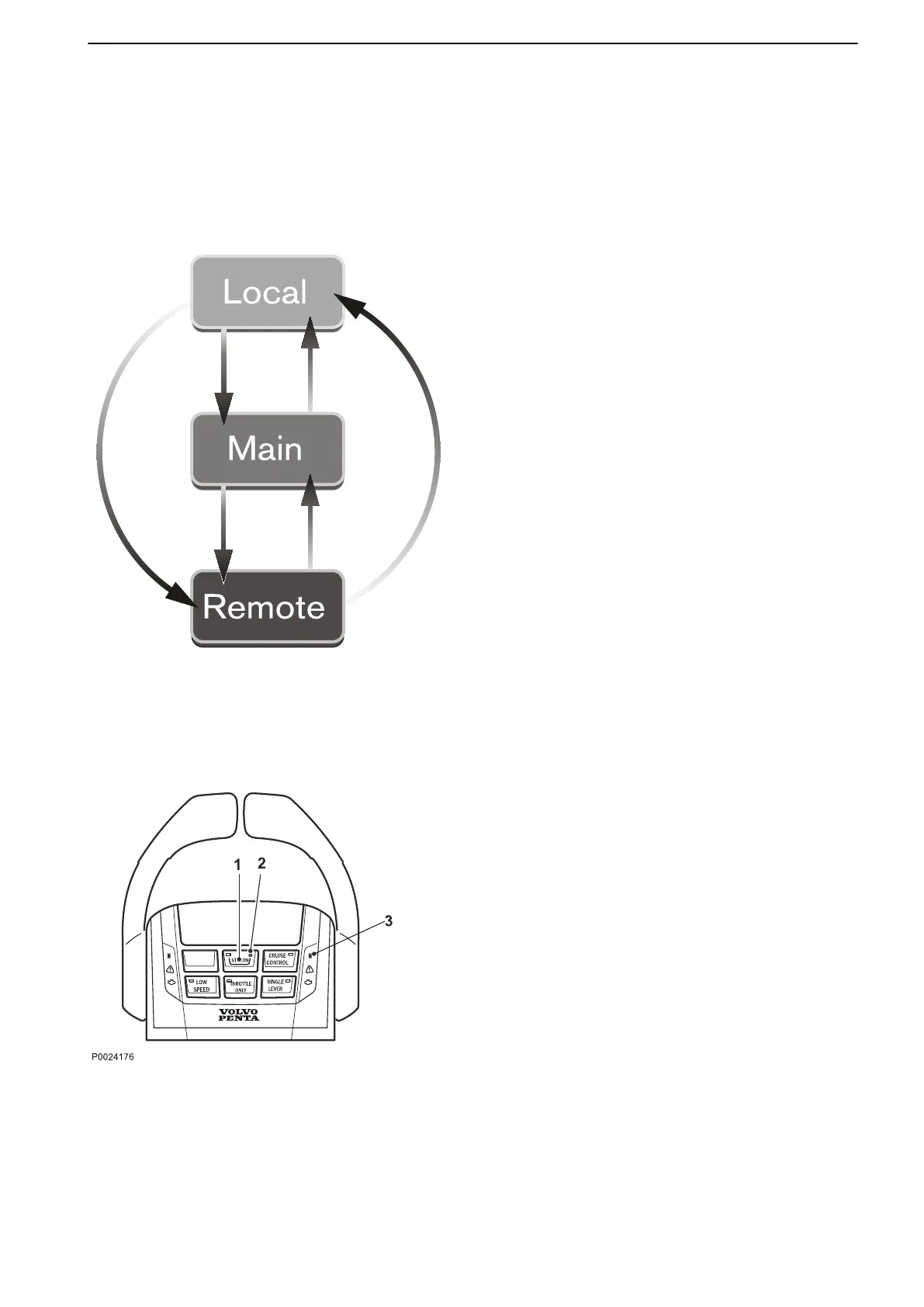

There are three different types of helm station a boat
can be steered from.
Local station
The local helm station has superiority over both the
main helm station and remote helm station. The local
helm station is always able to take over control from
another active helm station without unlocking the
active helm station first.
If there is an additional local helm station that is active
it must first be unlocked in order to transfer control to
another local helm station.
Main Station
The main helm station has superiority over the remote
helm station but is subordinate to the local helm
station.
In order for the main helm station to take control from
an active local helm station or another main helm
station the active helm station must be unlocked first.
The main helm station can take control from a remote
helm station without unlocking the remote helm
station.
Remote station
The remote helm station is subordinate to the local
helm station and the main helm station.
The active helm station must first be unlocked in order
to activate the remote helm station.
Changing and activating helm stations
NOTICE! If the padlock symbol (2) is lit, the helm
station cannot be activated. Another helm station is
active and locked.
1 Move the control levers to neutral.
2 Unlock the active helm station by pressing the
STATION button (1). The padlock (2) will go out on
all helm stations.
3 Activate the helm station that is to take control by
pressing the STATION button. The green led will
light up to indicate the station is active and the
padlock symbol will light up to show that the helm
station is locked.
Operation
47708638 09-2016 © AB VOLVO PENTA 67
