DPU 130Le 6 Components and operator's controls
Operator's manual
40
Padlock eyelet
On the rear protective hood, there is an eyelet in which a padlock can be hung.
The machine is protected from the following by a padlock:
Opening of the protective hoods.
Unauthorized operation.
Lifting by the central suspension (when folded in).
Central suspension
The fold-out central suspension allows the machine to be lifted for transport.
Ventilation slots
The ventilation slots of both protective hoods serve to draw in cold air and purge
warm air from the machine.
Emergency stop switch
The emergency stop switch is used only to turn off the machine in case of
danger. When the emergency stop switch is pressed, the machine will
immediately shut down completely. Operation can only continue once the
emergency stop switch has been unlocked.

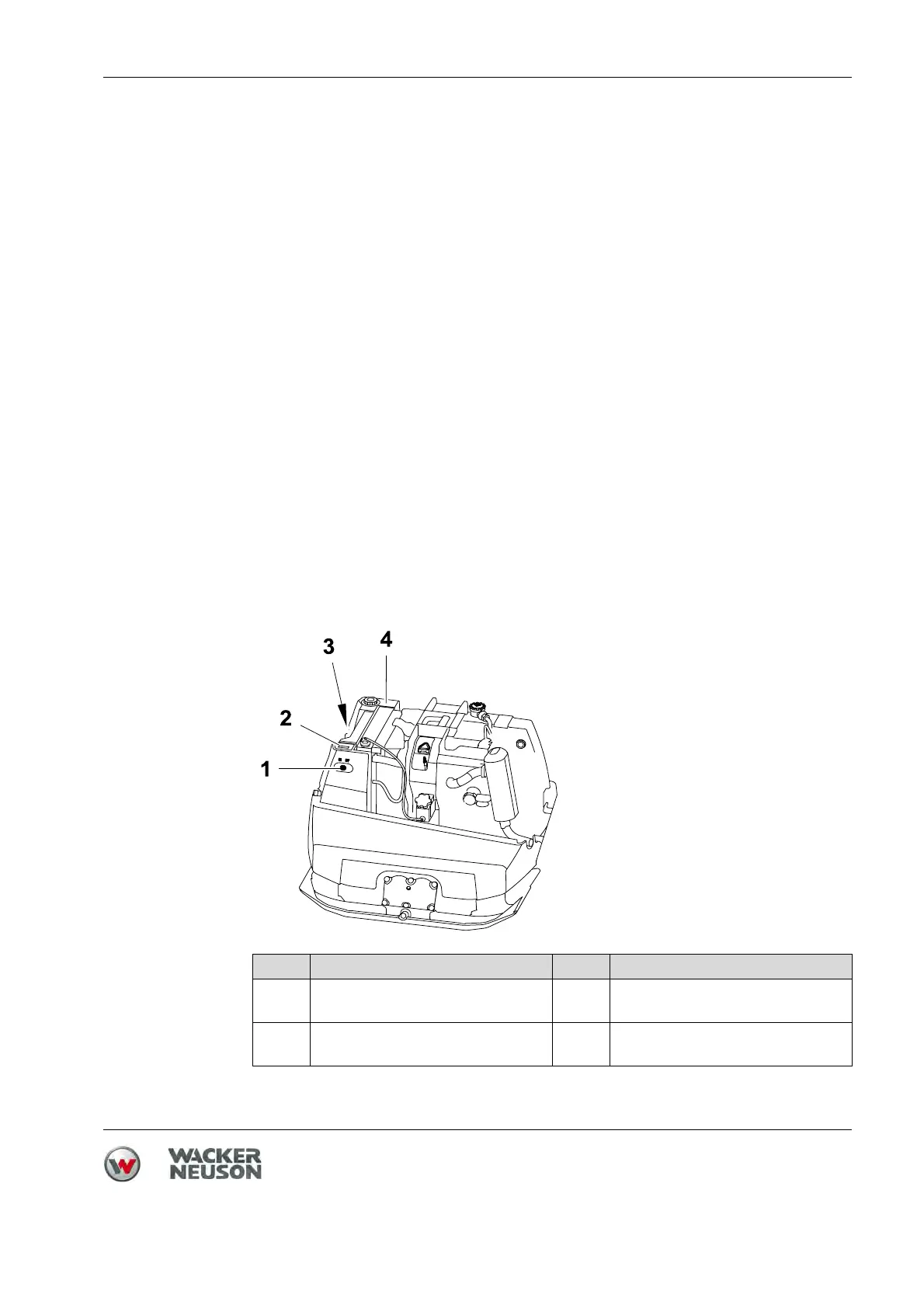

6.2 Components and operator's controls inside the machine
Item Designation Item Designation
1 ON/OFF switch 3 Remote control and coiled helix
cable holder
2 Display screen and control
lamps
4 Fuel tank
