DPU 130Le 6 Components and operator's controls
Operator's manual
44
6.3 Remote control components and operator's controls
Control levers (left, right)
When a control lever is pressed, vibration starts and the machine moves.
Remote control ON/OFF switch
Turn the remote control on and off with the ON/OFF switch.
The engine is also shut down using the ON/OFF switch.
Engine start button
The start button starts the engine.

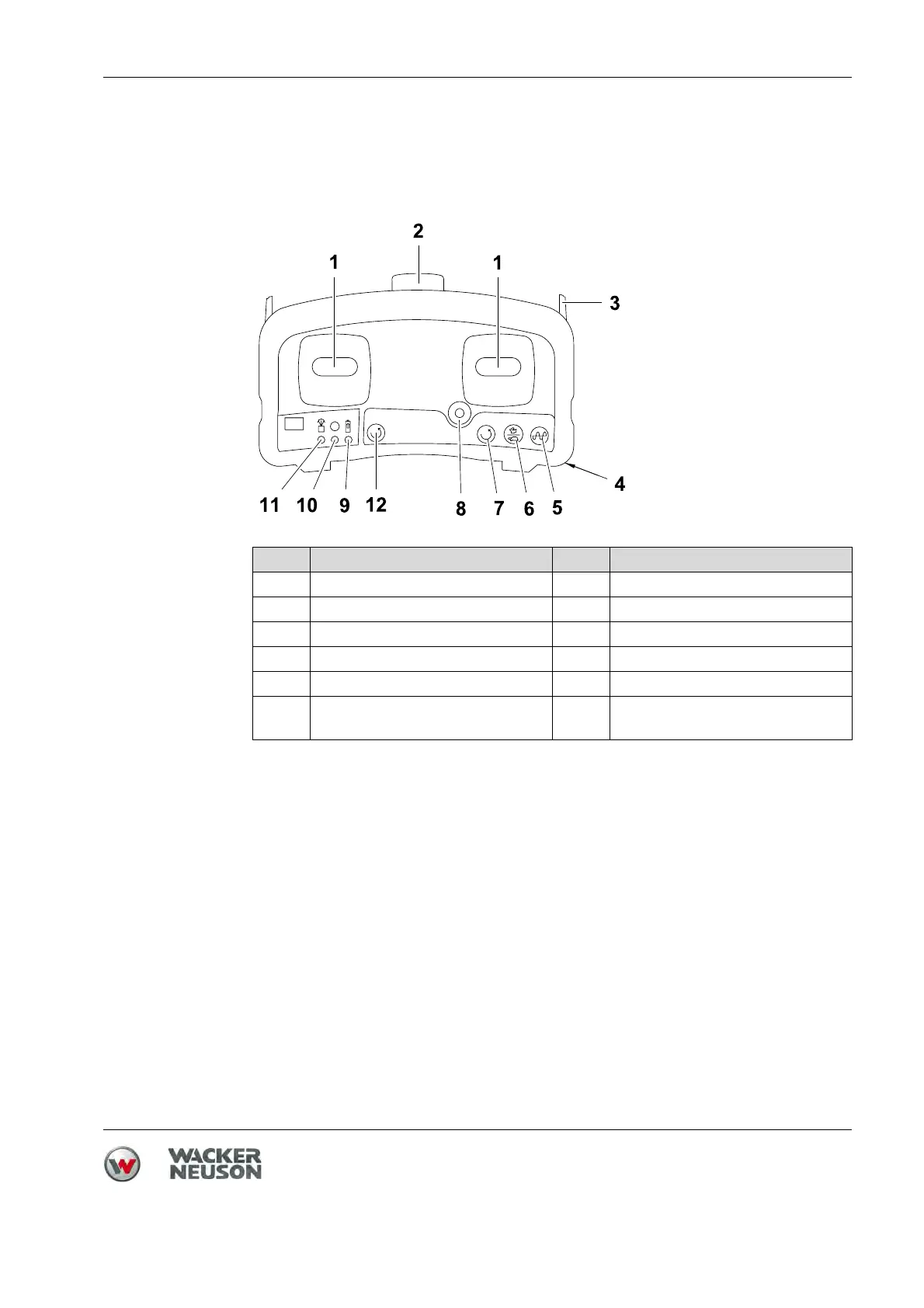

Item Designation Item Designation
1 Control levers (left, right) 7 Engine start button
2 Coiled helix cable shorting plug 8 Remote control ON/OFF switch
3 Carrying belt 9 Charging control lamp
4 Battery 10 Operation control lamp
5 Stand vibration button 11 Diagnostic control lamp
6 Slow/fast operation button 12
Engine start button
