9.2.3 Checking motor oil level and topping up engine oil
Performing preparations
1. Place the machine upright on a flat surface.
2. Open both protective hoods.
3. Deactivate the machine.
Checking engine oil level
1. Remove any dirt around the oil level dipstick.
2. Pull out dipstick.
3. Wipe off dipstick with dry, lint free towel.
4. Fully insert dipstick.
5. Pull out dipstick.
6. Check whether the oil is between the lower and upper mark on the dipstick.
Note: The oil volume between the upper and lower mark is 1.3 liters.

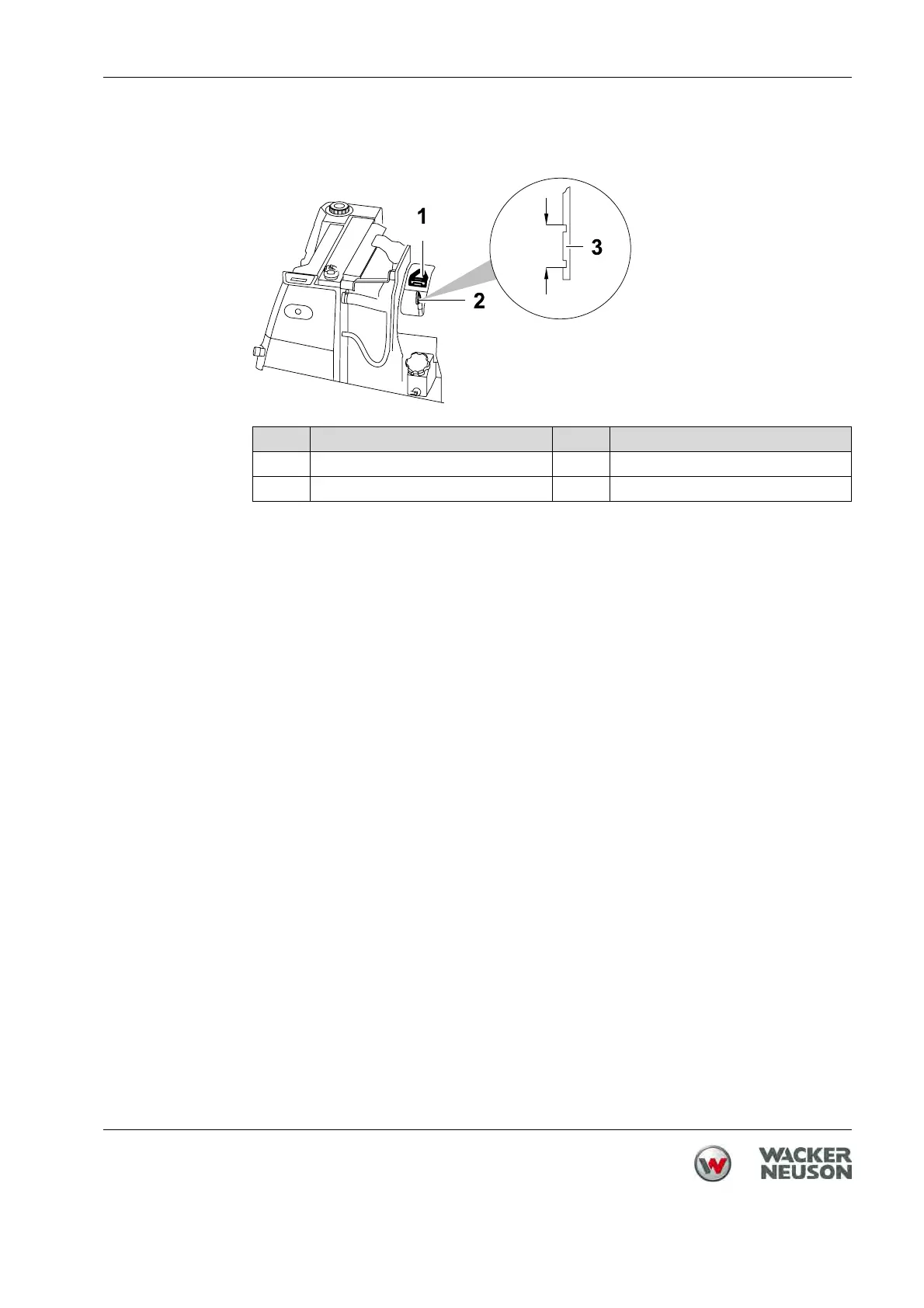

Item Designation Item Designation
1 Oil cap 3 Mark
2 Oil level dipstick
