remote control after charging. Note that the battery discharges slowly
when the machine has been idle for a long period and it may be
necessary to charge it again.
Note: While you are charging the battery with the coiled helix cable, you can
continue operating the machine. In this case, feed the coiled helix
cable through the recess under the ventilation slots of the rear
protective hood and the machine.
Connecting the coiled helix cable
1. Open rear protective hood.
2. Unscrew the sealing cap from the remote control shorting plug.
3. Remove the coiled helix cable from the holder.
4. Connect the coiled helix cable to the remote control shorting plug and screw
it on.
When the battery is charging, the Charging control lamp on the remote

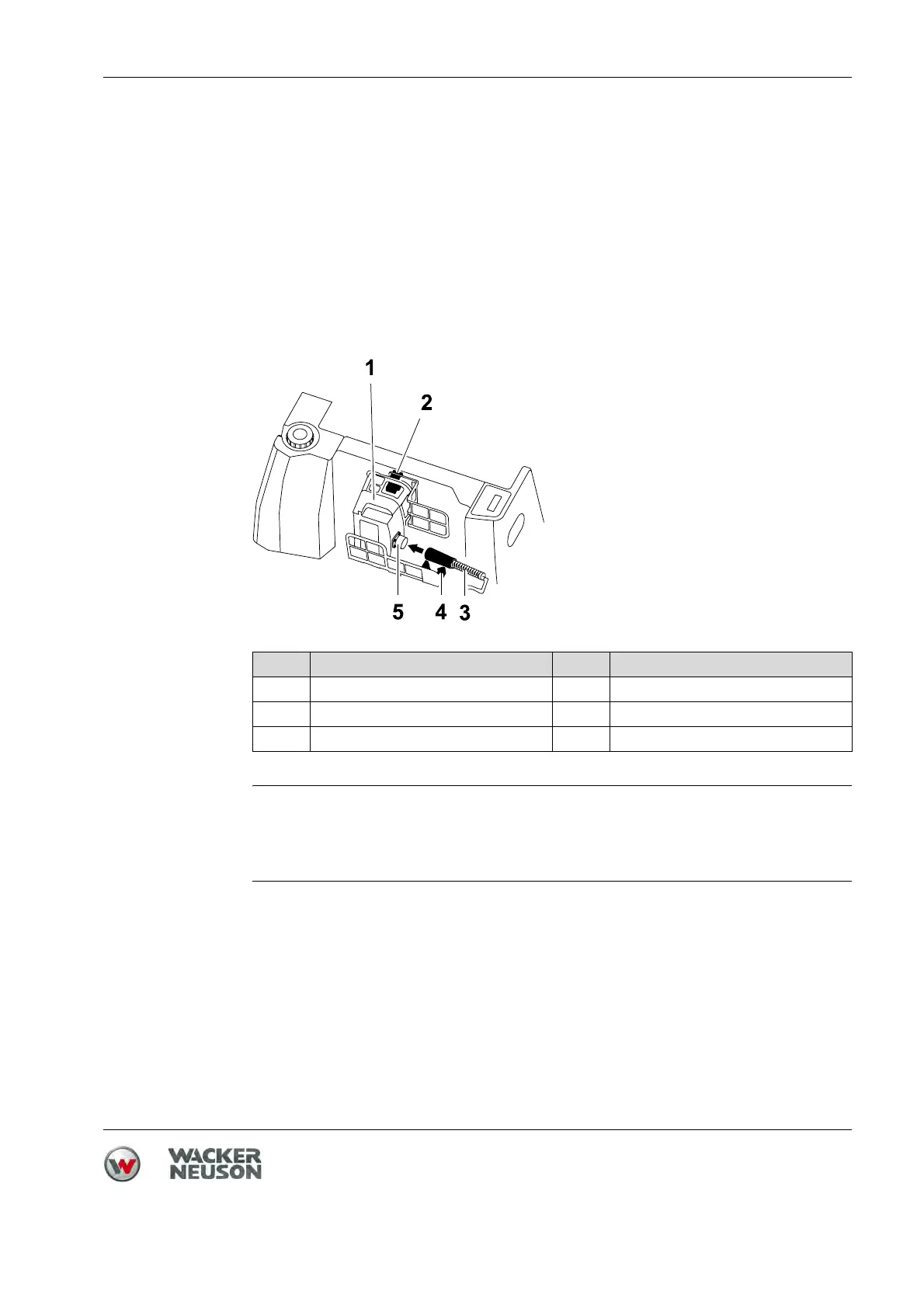

Item Designation Item Designation
1 Remote control 4 Coiled helix cable holder
2 Remote control holder 5 Shorting plug with sealing cap
3 Coiled helix cable
NOTICE
Improper handling can cause damage to the coiled helix cable.
f When using the coiled helix cable, take care that it is not pinched when
closing the protective hood.
