Maintenance
208
Xerox
®
WorkCentre
®
7220/7220i/7225/7225i Co
lor Multifunc
tion Printer
User G
uid
e
6.

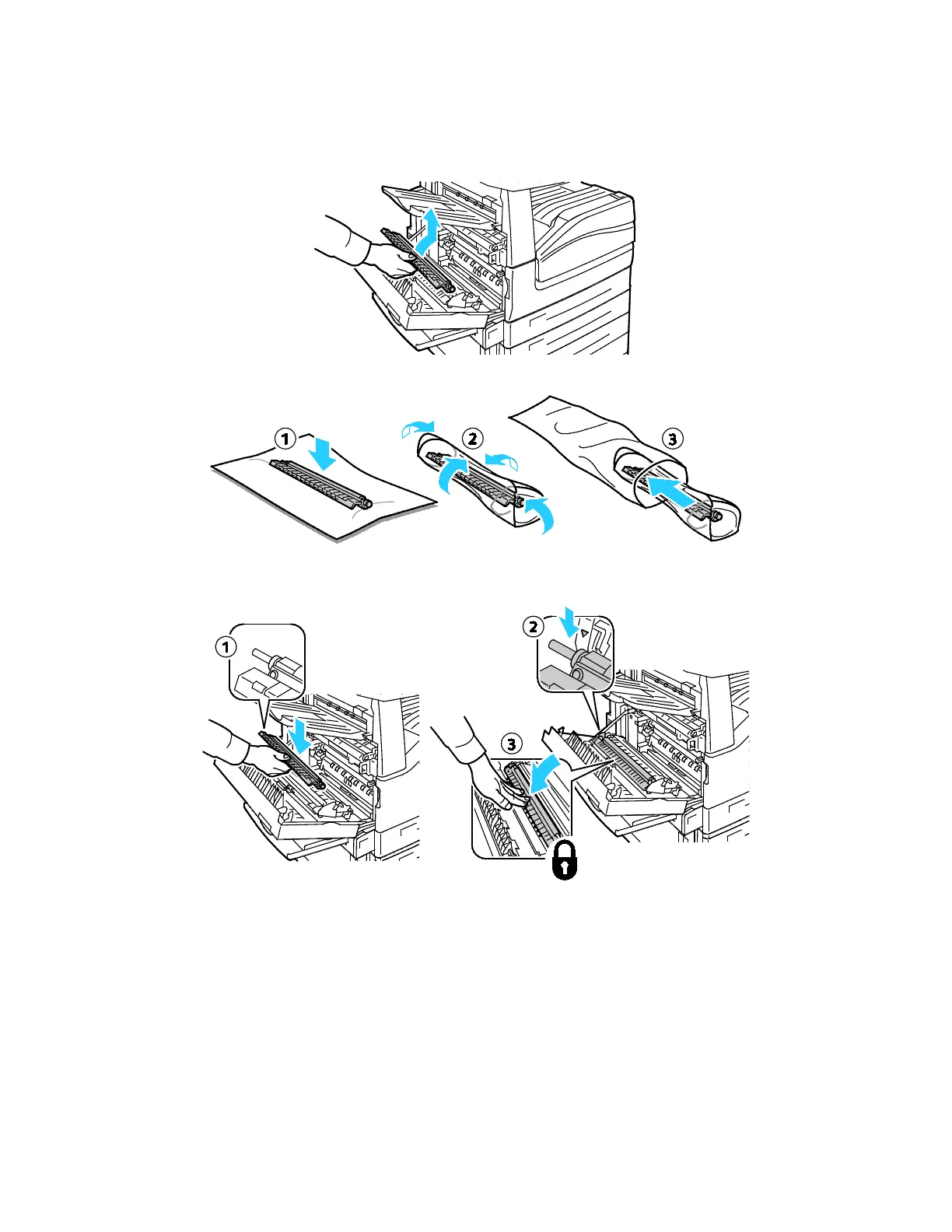

Lift the used transf
er roller out of
the printer.
Note:
Do not touch any toner adhering to the transfer roller.
7.
Place the used tran
sfer roller in th
e plastic bag.
8.
Place the new tra
nsfer roller in the pri
nter as shown.
Press down until the tran
sfer roller clicks into
place
.
207
209
