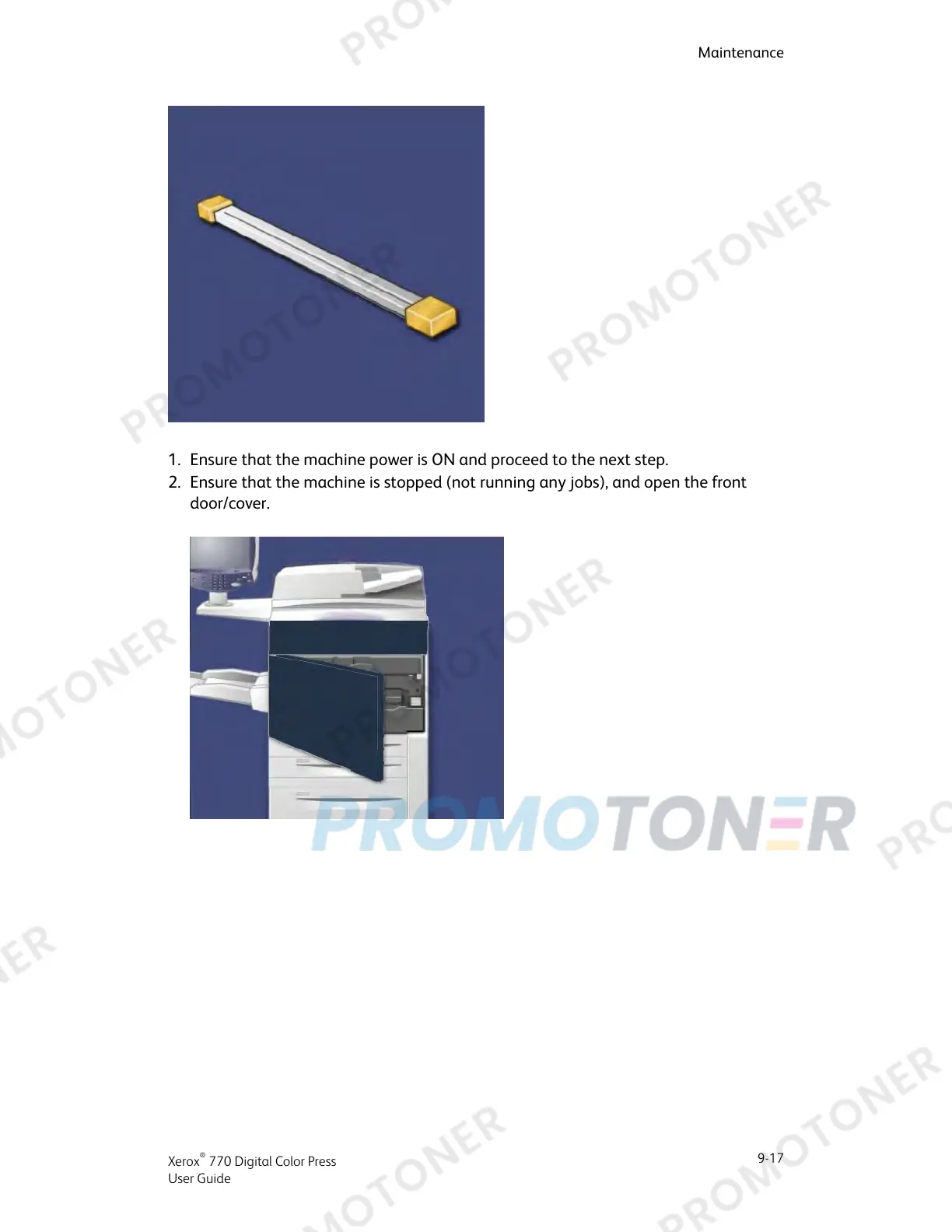

1. Ensure that the machine power is ON and proceed to the next step.

2. Ensure that the machine is stopped (not running any jobs), and open the front

door/cover.

9-17

Xerox

770 Digital Color Press

User Guide

Maintenance

Table of Contents3
Product Overview11
Introduction11
Machine Components11
Bypass Tray (Tray 5)13
Document Feeder13
User Interface (UI)14
Print Server Overview15
Feeding and Finishing Devices15
High Capacity Feeder (Hcf/Tray 6), 1-Tray16
Oversized High Capacity Feeder (OHCF), 1 or 2-Trays17
GBC Advancedpunch18
Interface Module18
High Capacity Stacker (HCS)19
Standard/Booklet Maker Finisher20
Squarefold Trimmer Module21
Third-Party Finishing Devices21
Power On/Off21
Power on21
Power off22
Power Saver22
Locating the Machine Serial Number22
Where to Find Help23
Customer Documentation CD/DVD23
Print Server Customer Documentation23
Help on the World Wide Web23
Submitting a Print Job25
Printing from Your Computer25
Printing from the Xerox Freeflow Print Server25
Printing from the Xerox EX Print Server, Powered by EFI26
Paper and Other Media27
Loading Media in Trays 1, 2, and 327
Loading Paper in Trays 1, 2, and 327
Loading Tab Stock in Trays 1, 2, and 328
Loading Transparencies in Trays 1, 2, and 329
Loading Pre-Drilled Stock in Trays 1, 2, and 330
Loading Media in the Bypass Tray31
Loading Paper in the Bypass Tray (Tray 5)31
Loading Tab Stock in the Bypass Tray (Tray 5)32
Loading Transparencies in the Bypass Tray (Tray 5)33
Loading Pre-Drilled Stock in the Bypass Tray (Tray 5)34
Loading Media in Optional Feeding Devices35
Loading Post-Process Media in Optional Finishing Devices35
Loading Tab Stock with the GBC Advancedpunch36
Copy37
Basic Copy Using the Document Feeder37
Basic Copy Using the Document Glass38
Copy Tab39
Copy > Reduce/Enlarge39
Reduce/Enlarge more Options40
Copy > Paper Supply40
Copy > Output Color41
Image Quality Tab41
Image Quality > Original Type42
Image Quality > Image Options42
Image Quality > Image Enhancement43
Image Quality > Color Effects43
Image Quality > Color Balance44
Image Quality > Color Shift44
Layout Adjustment Tab44
Layout Adjustment > Book Copying45
Layout Adjustment > 2 Sided Book Copying46
Layout Adjustment > Original Size46
Layout Adjustment > Edge Erase47
Layout Adjustment > Image Shift47
Layout Adjustment > Image Rotation48
Layout Adjustment > Invert Image49
Layout Adjustment > Original Orientation49
Output Format Tab50
Output Format > 2 Sided Copying51
Output Format > Copy Output52
Output Format > Booklet Creation53
Output Format > Covers55
Output Format > Transparency Options59
Output Format > Page Layout60
Output Format > Poster61
Output Format > Annotations61
Output Format > Watermark62
Output Format > Secure/Hybrid Watermark (Optional)62
Output Format > Tab Margin Shift63
Output Format > Face Up/Down Output64
Output Format > Folding (Optional)64
Output Format > ID Card Copy66
Job Assembly Tab67
Job Assembly > Build Job67
Job Assembly > Sample Job68
Job Assembly > Combine Original Sets69
Job Assembly > Delete Outside/Delete Inside70
Network Scanning71
Overview of Network Scanning71
Templates (Network Scanning)72
Scan Procedure72
Job Status75
Job Status Overview75
Active Jobs Tab75
Completed Jobs Tab75
Secure Print Jobs & more Tab76
Secure Print76
Sample Set77
Delayed Print77
Machine Status79
Machine Status Overview79
Machine Information Tab79
Faults Tab80
Supplies Tab81
Billing Information Tab81
Accessing Billing Information81
Billing Meters/Usage Counters81
Usage Counters82
User Account Billing Information82
Tools Tab83
Changing the Paper Tray Attributes83
Maintenance85
Cleaning the Machine85
Cleaning the Exterior86
Cleaning the Document Cover and Glass86
Cleaning the Document Feeder Rollers89
Replacing Consumable Supplies90
Ordering Supplies90
Checking the Status of Crus91
Replacing a Toner Cartridge92
Replacing the Toner Waste Bottle94
Replacing a Drum Cartridge95
Replacing the Charge Corotron100
Replacing the Fuser104
Problem Solving109
Paper Jams109
Document Feeder Jams109
Document Jams under the Document Feeder Belt112
Lower Left Cover Jams113
Main Unit Jams114
Paper Jams in Trays 1-3116
Paper Jams in the Bypass (Tray 5)117
Envelope Jams in the Bypass Tray118
Inverter Jams (Bottom Right Cover)118
Fault Codes120
General Problems135
Other Faults136
Image Quality137
Hints and Tips142
Fuser Hints and Tips142
Miscellaneous Hints and Tips143
Specifications145
Print Engine Specifications145
Additional Optional Accessories146
High Capacity Feeder (1-Tray Hcf/Tray 6)147
HCF (Tray 6) Overview147
Loading Paper in the HCF (Tray 6)147
Problem Solving149
Clearing Paper Jams in Tray 6 (1-Tray HCF)149
HCF (Tray 6) and Lower Left Cover Jams150
HCF (1 Tray) Fault Codes152
Oversized High Capacity Feeder (OHCF), 1 or 2 Trays (Trays 6/7)157
Postcard Bracket157
Using the Postcard Bracket158
Loading Media in the 1 or 2-Tray OHCF160
Loading Paper in the OHCF (1 or 2 Trays)160
Loading Tabs in the OHCF (1 or 2 Trays)160
Loading Transparencies in the OHCF (1 or 2 Trays)161
Print Jobs162
Print Jobs163
Skew Adjustment Levers164
OHCF Problem Solving165
Clearing OHCF Jams165
Paper Jams Inside the OHCF Trays166
OHCF Paper Jams at Lever 1A and Knob 1C167
OHCF Paper Jams at Lever 1B and Knob 1C168
OHCF Paper Jams at Lever 1D and Knob 1C169
OHCF Fault Codes170
OHCF Specifications172
Interface Module173
Overview173
Control Panel174
Paper Path175
Paper Curl Settings on the Interface Module175
Preset Decurler Settings175
Manual Decurler Buttons175
Internal Spectrophotometer (ILS)176
Problem Solving176
Clearing Jams176
Paper Jams at Lever 1A177
Paper Jams at Lever 2A178
Paper Jams at Lever 2B179
Fault Codes181
High Capacity Stacker (HCS)183
Overview183
Identifying the Components184
Control Panel185
HCS Top Tray185
Unloading the Stacker Tray186
Problem Solving187
General Problems187
Jam Clearance187
HCS Entrance Jams (E1, E2, and E3)187
HCS Transport Jams (E4, E5, and E6)188
HCS Top Tray Jam (E7)190
HCS Exit Jam (E8)191
Hints and Tips for Using the HCS192
Loss of Power192
Fault Codes193
Specifications197
Standard/Booklet Maker Finisher199
Manual Decurling Feature on the Finisher201
Folding Feature202
Fold Types202
Maintenance204
Standard/Booklet Maker Consumable Supplies204
Replace the Standard Staple Cartridge205
Replace the Booklet Staple Cartridge206
Replacing the Staple Waste Container on the Finisher208
Empty the Punch Waste Container210
Finisher Problem Solving212
Paper Jams in Tray 8 (Post-Process Inserter)212
Paper Jams at Lever 1A and Knob 1C213
Paper Jams at Lever 1D214
Paper Jams at Lever 1B215
Paper Jams at Lever 3B and 3D216
Paper Jams at Lever 3E and Knob 3C217
Paper Jams at Lever 3G and Knob 3F219
Paper Jams at Lever 4B and Knob 3A220
Paper Jams at Lever 2A and Knob 3A221
Paper Jams at Lever 2B and Knob 2C222
Paper Jams at 2C, 2E, 2F, and 2D223
Paper Jams at 2D and Lever 2G224
Paper Jams at Unit 4 and Knob 4A225
Paper Jams at Finisher Top Tray226
Paper Jams at Finisher Stacker Tray227
Paper Jams at the Optional Booklet Maker Tray228
Stapler Faults229
Staple Jams in the Standard Staple Cartridge230
Staple Jams in the Booklet Maker Cartridge231
Reinserting the Standard Staple Cartridge233
Fault Codes235
Specifications237
Standard/Booklet Maker Finisher237
Optional C/Z Folder240
Squarefold Trimmer Module241
Overview241
Identifying the Components242
Main Components242
Paper Path243
Control Panel244
Square Fold Feature244
Square Fold Options245
Accessing the Square Fold Options246
Accessing the Square Fold Options for Network Print Jobs246
Accessing the Square Fold Options for Copy Jobs247
Trimmer Feature247
Trimmer Options247
Trim Guidelines249
Accessing the Trimmer Options250
Accessing the Trimmer Options for Network Print Jobs250
Accessing the Trimmer Options for Copy Jobs250
Hints and Tips251
Printing Full-Page Images on Booklets251
Follow These Tips252
Problem Solving252
Jam Clearance252
Clearing Jams253
Clearing E1/E2 Jams253
Clearing E3 Jams255
Fault Codes256
Technical Data259
