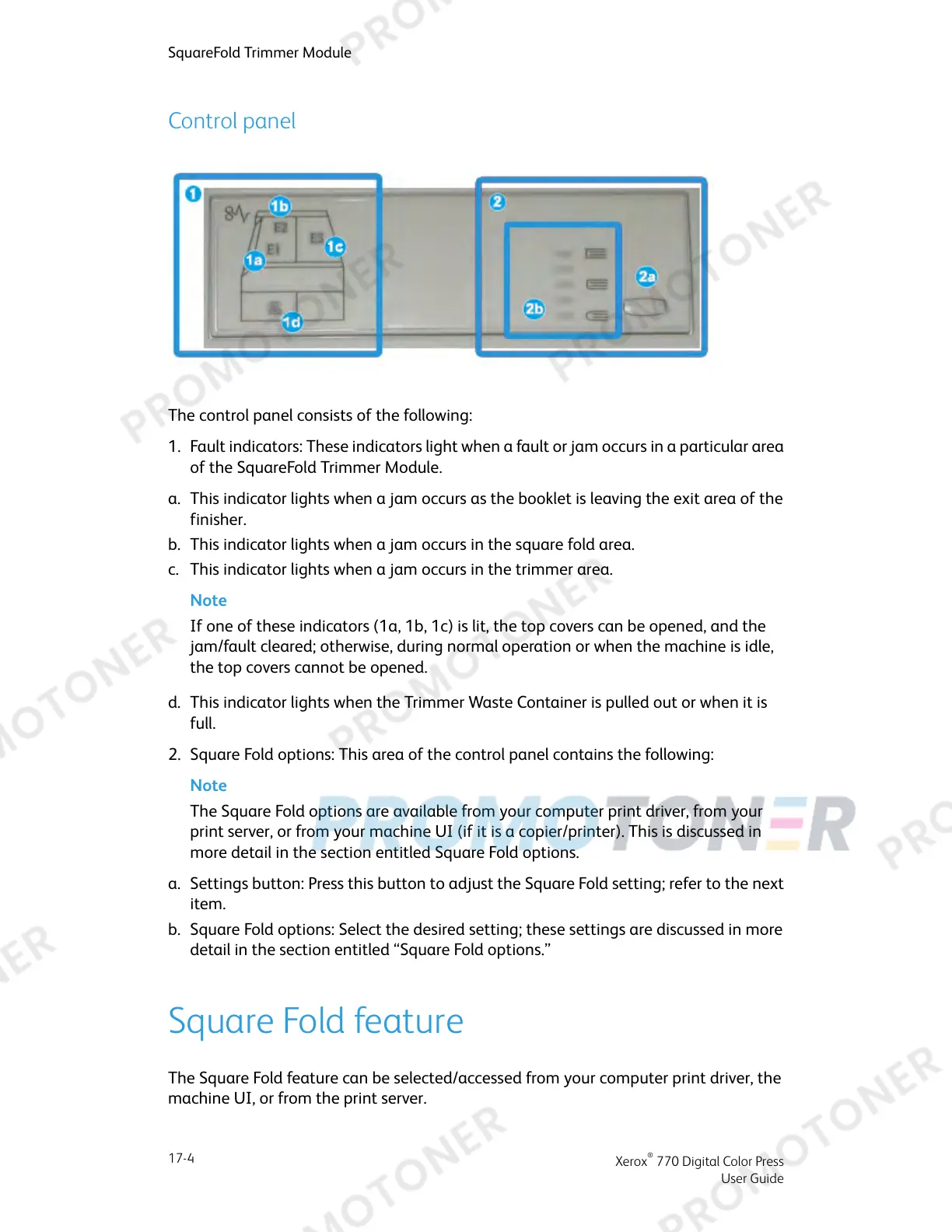

Control panel
The control panel consists of the following:
1. Fault indicators: These indicators light when a fault or jam occurs in a particular area
of the SquareFold Trimmer Module.
a. This indicator lights when a jam occurs as the booklet is leaving the exit area of the
finisher.
b. This indicator lights when a jam occurs in the square fold area.
c. This indicator lights when a jam occurs in the trimmer area.
Note
If one of these indicators (1a, 1b, 1c) is lit, the top covers can be opened, and the
jam/fault cleared; otherwise, during normal operation or when the machine is idle,
the top covers cannot be opened.
d. This indicator lights when the Trimmer Waste Container is pulled out or when it is
full.
2. Square Fold options: This area of the control panel contains the following:
Note
The Square Fold options are available from your computer print driver, from your
print server, or from your machine UI (if it is a copier/printer). This is discussed in
more detail in the section entitled Square Fold options.
a. Settings button: Press this button to adjust the Square Fold setting; refer to the next
item.
b. Square Fold options: Select the desired setting; these settings are discussed in more
detail in the section entitled “Square Fold options.”
Square Fold feature
The Square Fold feature can be selected/accessed from your computer print driver, the
machine UI, or from the print server.
Xerox
®
770 Digital Color Press
17-4
User Guide
SquareFold Trimmer Module
