Xerox COLORQUBE 8570 Service Manual

October 2012
4-6
ColorQube 8570/8870 Service Manual
REP 1.5
Revised, 3rd Revision - Xerox Internal Use Only
Repairs and Adjustments
REP 1.5 Control Panel Cover
Parts List on PL 1.1 Item 5
Removal
CAUTION
Use care not to damage the Control Panel Wiring Harness while removing or replacing the
Control Panel Cover.
CAUTION
Do not disconnect the ZIF cable and remove the Control Panel unless necessary, as the Con-
trol Panel connector is fragile and can be easily damaged, even when correctly following the
replacement procedures.
1. Open the Exit Cover.
2. Open the Front Door.

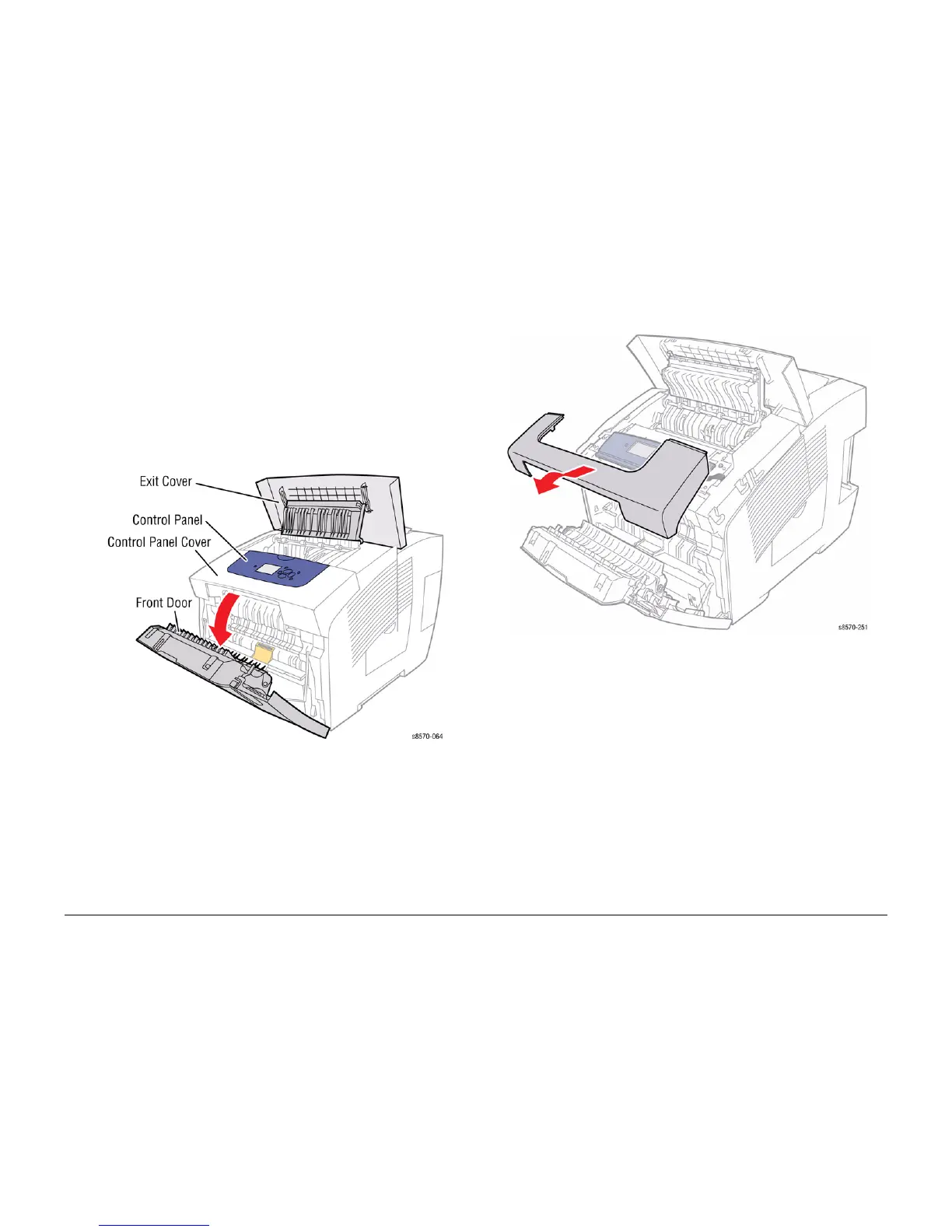

Figure 1 Opening the Exit Cover and Front Door
3. Using either your fingers or a small flathead screwdriver, loosen the Control Panel Cover
on the left side, and then slide the Cover forward while lifting up to remove it from the
printer.
Figure 2 Removing the Control Panel Cover
