October 2012
4-84
ColorQube 8570/8870 Service Manual
REP 5.2
Revised, 3rd Revision - Xerox Internal Use Only
Repairs and Adjustments
REP 5.2 Hard Disk Drive
Parts List on PL 5.1 Item 2
Removal
1. Remove the 2 thumbscrews on the Rear Panel of the Electronics Module and remove the
Rear Panel.

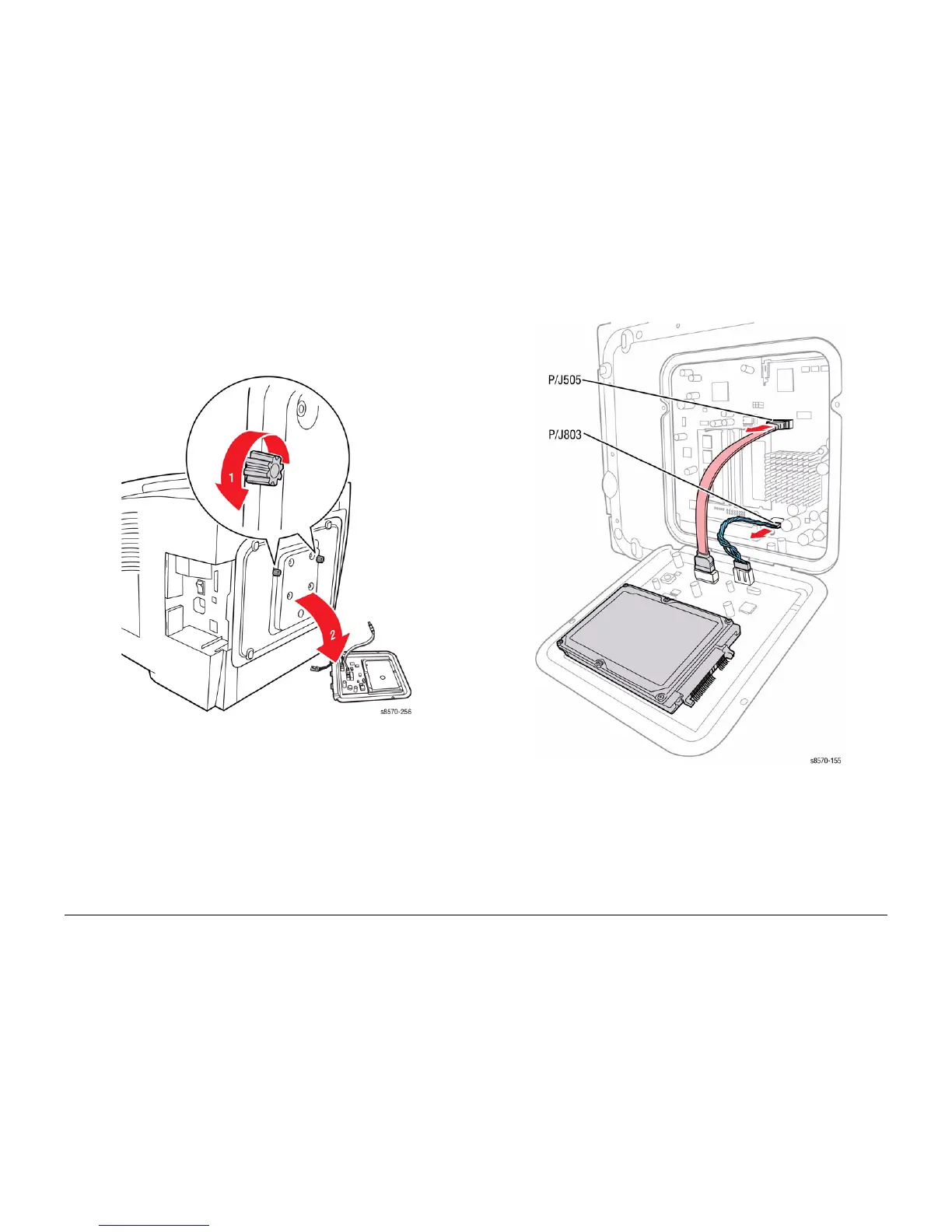

Figure 1 Remove the Screws and Rear Panel
2. Disconnect the Hard Disk Drive wiring harness connectors P/J505 and P/J803 from the
Main Controller Board.
Figure 2 Removing the Hard Disk Drive
